Delta Electronics AC Motor Drive VFD-VE Series

Chapter 4 Parameters|
Revision August 2008, 03VE, SW V2.04 4-91

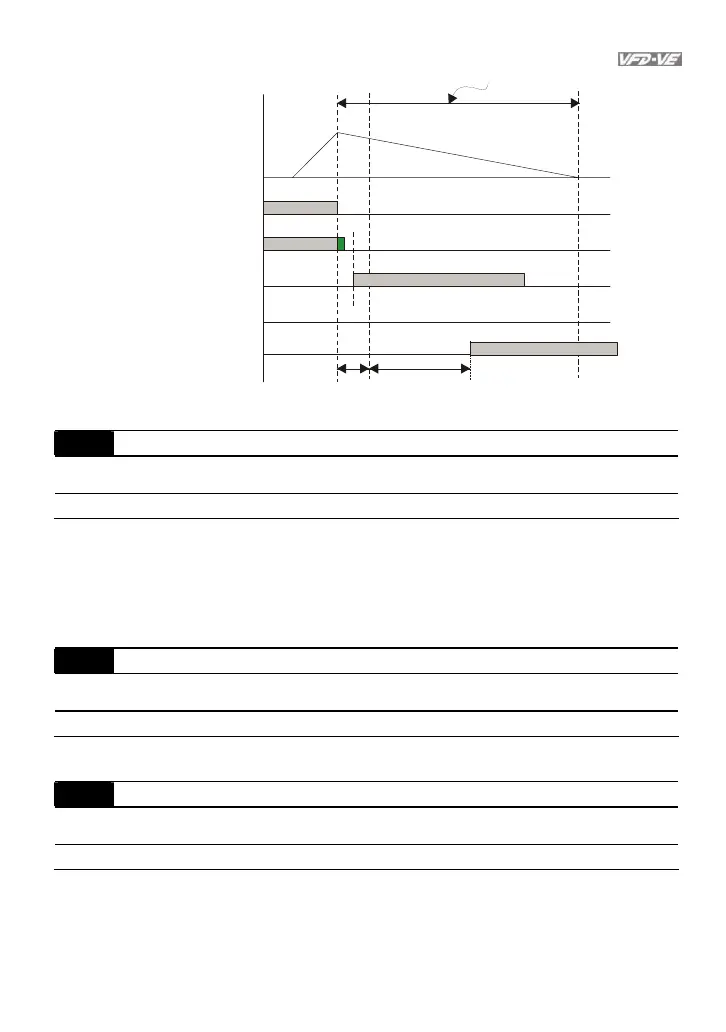

Y-connection output
Pr.02-11~14=31
Y-connection
confirmation input
Pr.02-01~06=29
△ -connection output
Pr.02-11~14=32
△ -connection
confirmation input
Pr.02-01~06=30
ON
ON
ON
ON
2 seconds
Y- switc h e rr o r
frequency
△
free run status
output
frequency
delay time
Pr.05-30
05-13 Full-load Current of Motor 2 Unit: 1%
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory setting: #.##
Settings 40 to 100%
 This value should be set according to the rated frequency of the motor as indicated on the
motor nameplate. The factory setting is 90% X rated current.
Example: The rated current for 7.5HP (5.5kW) is 25 and factory setting is 22.5A. The range for
setting will be 10~30A.(25*40%=10 and 25*120%=30)
05-14 Rated Power of Motor 2 Unit: 0.01
Control
mode
SVC FOCPG TQRPG
Factory setting: #.##
Settings 0 to 655.35
 It is used to set rated power of the motor 2. The factory setting is the power of the drive.
05-15  Rated Speed of Motor 2 (rpm) Unit: 1
Control
mode
VFPG SVC FOCPG TQRPG
Factory setting: 1710
Settings 0 to 65535
 It is used to set the rated speed of the motor and need to set according to the value indicated
on the motor nameplate.
