Chapter 3 Digital Keypad Operation and Start Up|
Revision August 2008, 03VE, SW V2.04 3-5

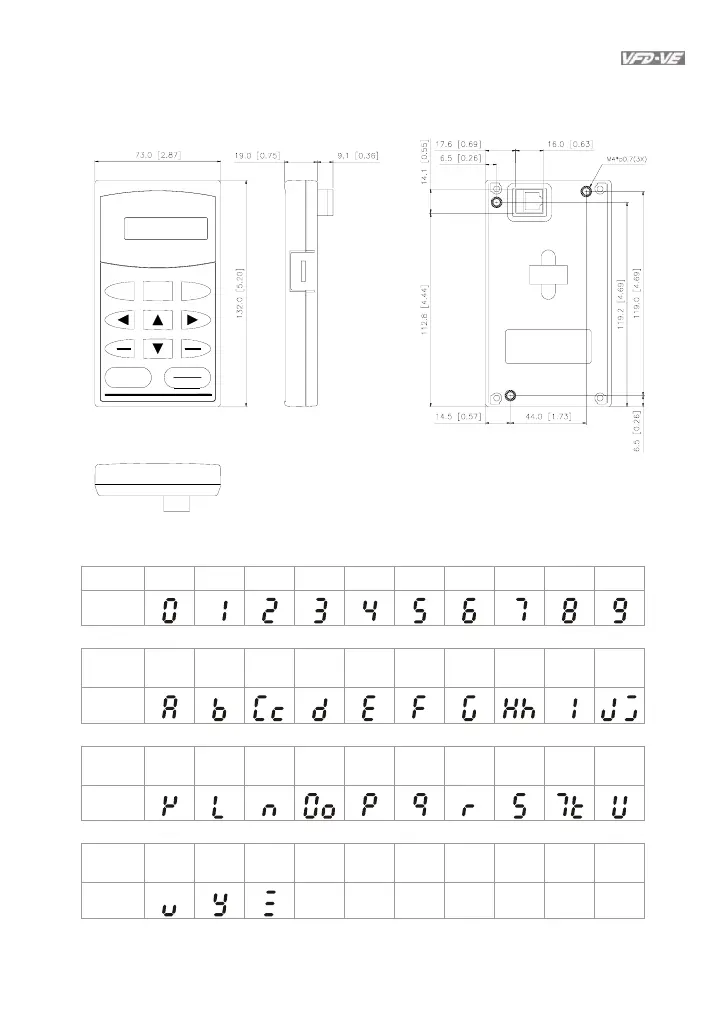

3.1.3 Dimension of the Digital Keypad
Unit: mm [inch]
MODE
REV
FWD
RUN
JOG
LABEL 1
PROG
DATA
RESET
STOP
PU
U
RUN
STOPJOG
FWD
KPV-CEO1
REVEXTPU
F
H
3.1.4 Reference Table for the LCD Display of the Digital Keypad
Digital 0 1 2 3 4 5 6 7 8 9
LCD
English
alphabet
A b Cc d E F G Hh I Jj
LCD
English
alphabet
K L n Oo P q r S Tt U
LCD
English
alphabet
v Y Z
LCD
