B.7 Remote Controller RC-01

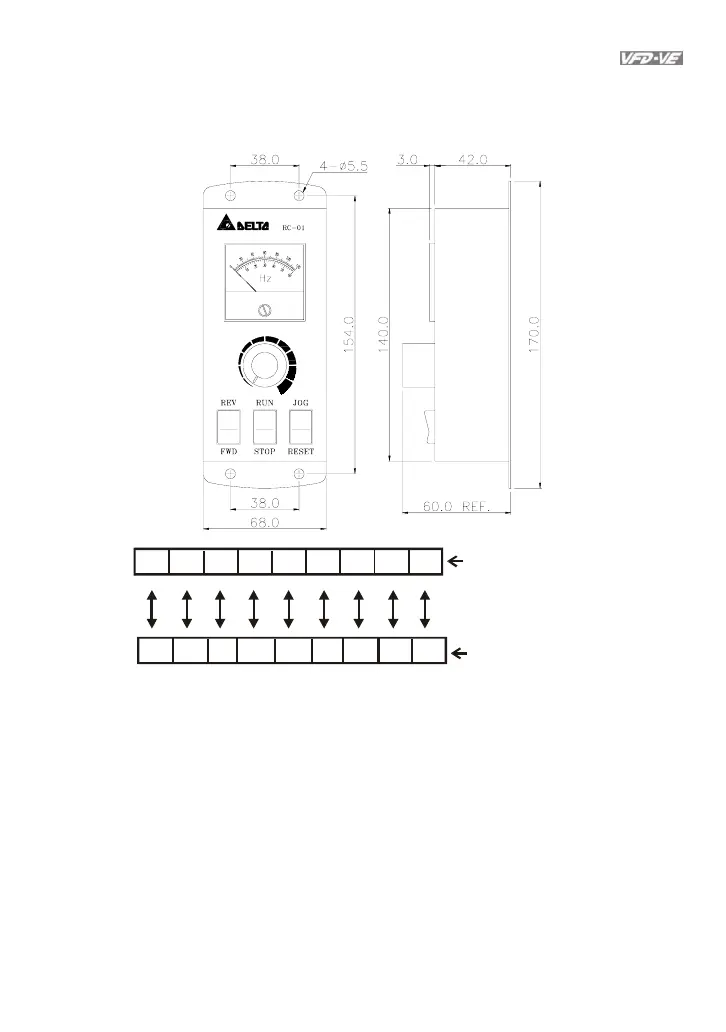

Dimensions are in millimeter
AFM ACM
+10V
AVI DCM
MI5
FWD REV JOG
86
5
4 16151413 11
RC-01 terminal block
Wiring connections
VFD-VE
I/O Block
VFD-VE Programming:
Pr.00-20 set to 2
Pr.00-21 set to 1 (external controls)
Pr.02-00 set to 1 (setting Run/Stop and Fwd/Rev controls)
Pr.02-05 (MI5) set to 5 (External reset)
