Chapter 4 Parameters|
4-118 Revision August 2008, 03VE, SW V2.04
Positive
torque
Negative
torque
speed
06-12 current limit
06-12 current limit
06-12 current limit 06-12 current limit
Reverse motor mode
Forward motor mode
Forward motor mode
Reverse motor mode

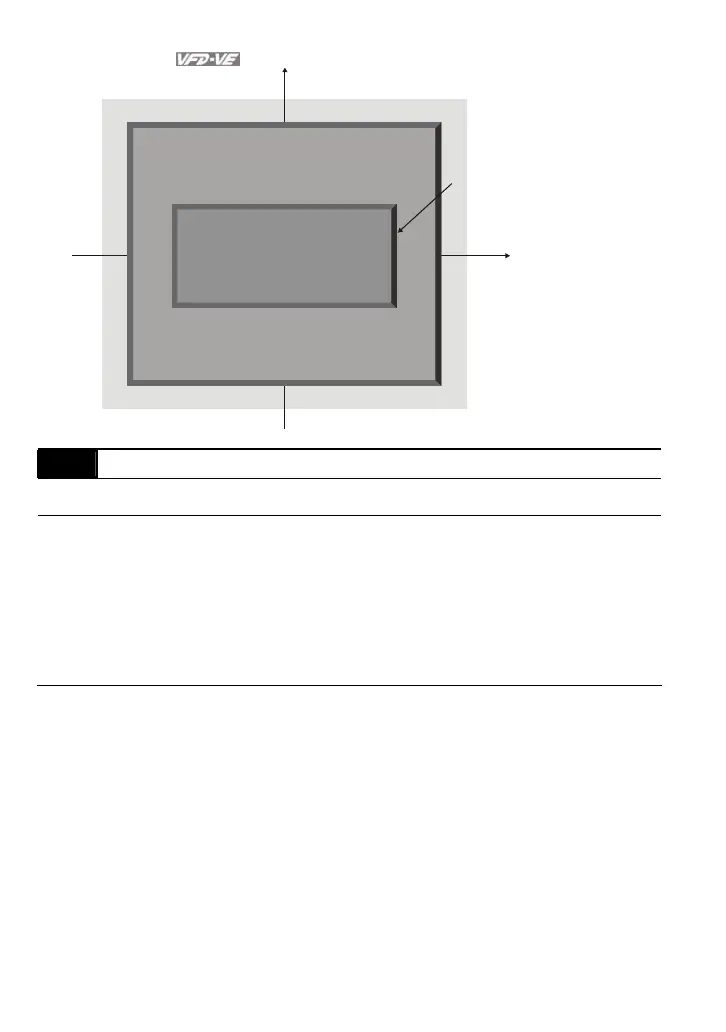

The level of torque limit will be
the min. value of following three values
1. torque limit of Pr.07-32 to Pr.07-35
2. Torque limit of external analog terminals
(AVI, ACI and AUI)
3. Pr.06-12 current limit
External analog terminals
Pr.03-00~02
7: positive torque limit
10: positive/negative torque limit
9: regenerative torque limit
External analog terminals
Pr.03-00~02
7: positive torque limit
10: positive/negative torque limit
External analog terminals
Pr.03-00~03-02
8: negative torque limit
10: positive/negative torque limit
External analog terminals
Pr.03-00~03-02
8: negative torque limit
10: positive/negative torque limit
Pr.07-35
Reverse regenerative
torque limit
Pr.07-32
Forward motor
torque limit
Pr.07-33
Forward regenerative
torque limit
Pr.07-34
Reverse motor
torque limit
Quadrant I
Quadrant II
Quadrant III
Quadrant IV
speed
07-36
 Emergency Stop (EF) & Forced Stop Selection
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory Setting: 0
Settings 0 Coast stop
1 By deceleration Time 1
2 By deceleration Time 2
3 By deceleration Time 3
4 By deceleration Time 4
5 System Deceleration
6 Automatic Deceleration
 When the multi-function input terminal is set to 10 or 18 and it is ON, the AC motor drive will be
operated by Pr.07-36.
