Chapter 4 Parameters|
Revision August 2008, 03VE, SW V2.04 4-131

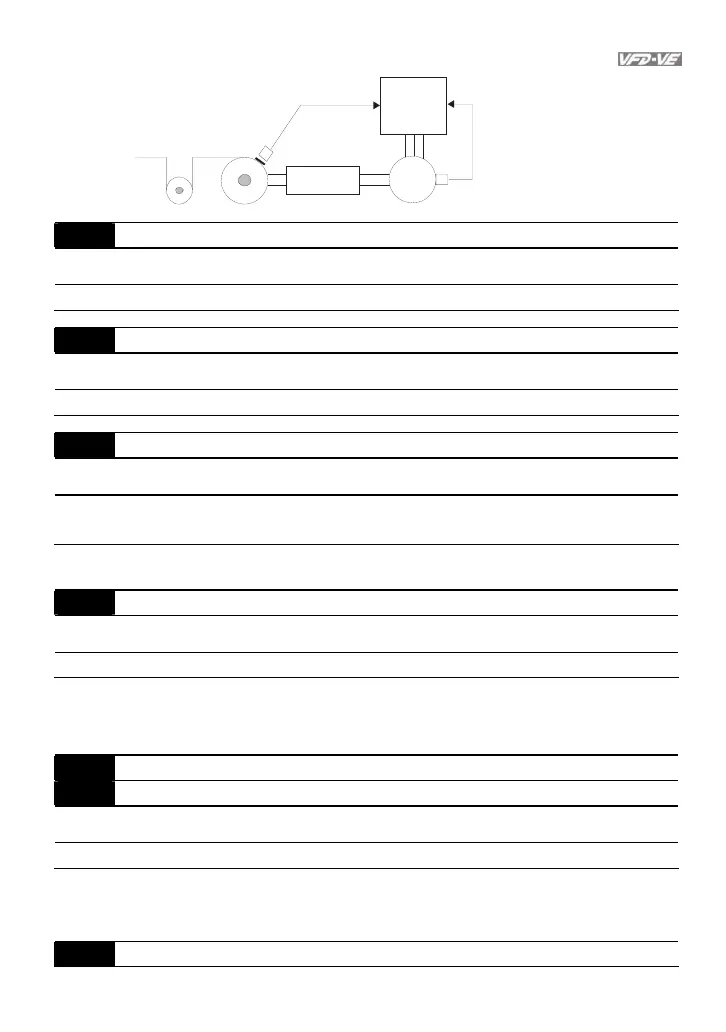

the path when
Pr.08- 42 is set to 1
Driver
th e pa th when
Pr.08- 42 is set to 2
gear ratio
Motor
Encoder
proximity
switch/
encoder
08-43 Max. Reel Diameter Unit: 0.1
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory Setting: 6000.0
Settings 1.0 to 6000.0mm
08-44 Empty Reel Diameter Unit: 0.1
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory Setting: 1.0
Settings 1 to 6000.0mm
08-45 Source of Reel Diameter
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory Setting: 0
Settings 0 RS-485 communication setting (Pr.08-46)
1 Analog input (Pr.03-00-Pr.03-02 is set to 13)
When it is set to 1, the corresponding value of 10V is Pr.08-43.
08-46 Initial Reel Diameter Unit: 0.1
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory Setting: 1.0
Settings 1.0 to 6000.0mm
When Pr.08-45 is set to 1, Pr.08-46 will be read-only.
08-47 Initial Reel Diameter 1 Unit: 0.1
08-48 Initial Reel Diameter 2 Unit: 0.1
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory Setting: 1.0
Settings 1.0 to 6000.0mm
Pr.08-46 needs to be used by setting 44~46 to Pr.02-01~02-06, Pr.02-23~Pr.02-30.
When you need to have many types of reel diameter, please set Pr.08-46 to 0.
08-49 Number of Pulse Per Revolution Unit: 1
