Interfaces Local Area Networks (LANs)
IX30 User Guide
160
Configure the WAN/ETH1 Ethernet port as a LAN
This procedure reconfigures the WAN/ETH1 port to serve as port for a LAN, which will result in the
device having two separate LANs: the default ETH2 LAN, and the LAN created in this procedure. To
utilize both LANs, you will need to have a device connected to the WAN/ETH1 port, and a separate
device connected to the ETH2 port, and these devices will be on separate LANs.
If instead, you want the WAN/ETH1 port to be bridged with the ETH2 port, see Create a bridge that
includes the WAN/ETH1 port.
To configure the WAN/ETH1 Ethernet port as a LAN:
Web
1. Log into Digi Remote Manager, or log into the local Web UI as a user with full Admin access
rights.
2. Access the device configuration:
Remote Manager:
a. Locate your device as described in Use Digi Remote Manager to view and manage your
device.
b. Click the Device ID.
c. Click Settings.
d. Click to expand Config.
Local Web UI:

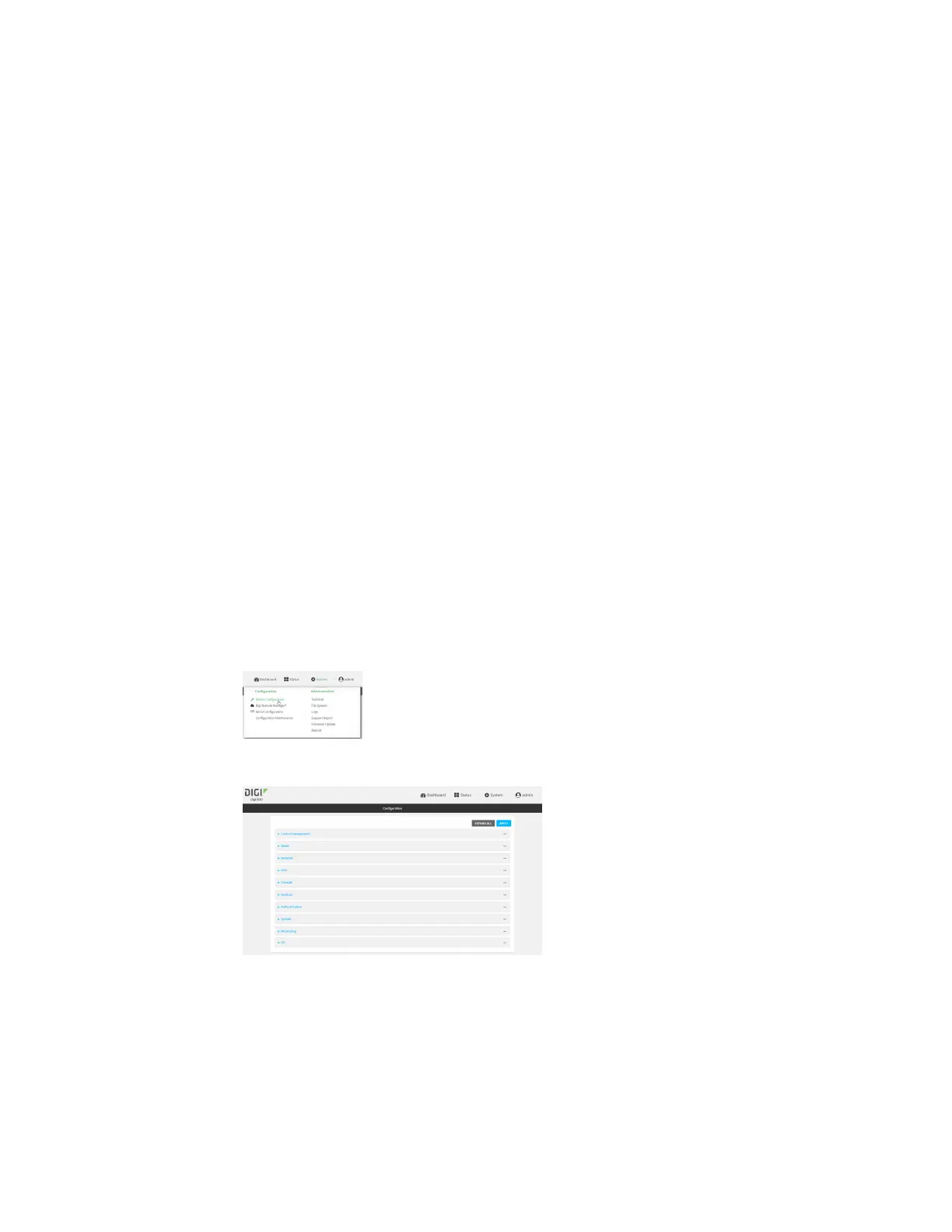

a. On the menu, click System. Under Configuration, click Device Configuration.
The Configuration window is displayed.
3. Click Network > Interfaces > ETH1.
