Routing Virtual Router Redundancy Protocol (VRRP)
IX30 User Guide
326

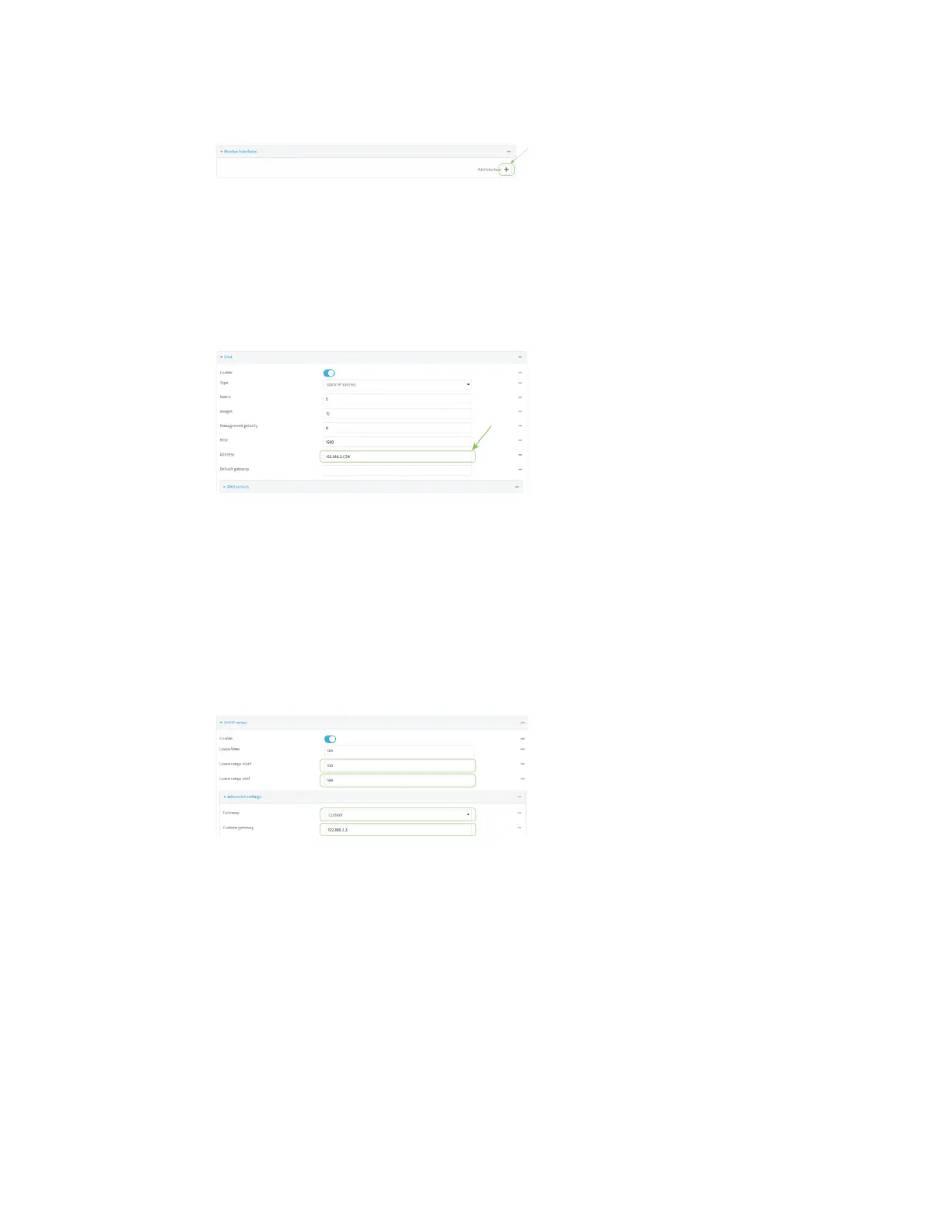

4. Click to add an interface for monitoring.
5. Select Interface: Modem.
6. For Priority modifier, type 30.
Task 3: Configure the IP address for the VRRP interface, ETH2, on device one
1. Click Network > Interfaces > ETH2 > IPv4
2. For Address, type 192.168.3.1/24.
Task 4: Configure the DHCP server for ETH2 on device one
1. Click to expand Network > Interfaces > ETH2 > IPv4 > DHCP Server
2. For Lease range start, leave at the default of 100.
3. For Lease range end, type 199.
4. Click to expand Advanced settings.
5. For Gateway, select Custom.
6. For Custom gateway, enter 192.168.3.3.
7. Click Apply to save the configuration and apply the change.
Command line
Task 1: Configure VRRP on device one
1. Select the device in Remote Manager and click Actions > Open Console, or log into the IX30
local command line as a user with full Admin access rights.
Depending on your device configuration, you may be presented with an Access selection
menu. Type admin to access the Admin CLI.
