I/O Port, Span Switch and W&M SealingI/O Port, Span Switch and W&M Sealing
––––
4.1 I/O Port
4.1 I/O Port
4.1.2 Elevated (EV)4.1.2 Elevated (EV)

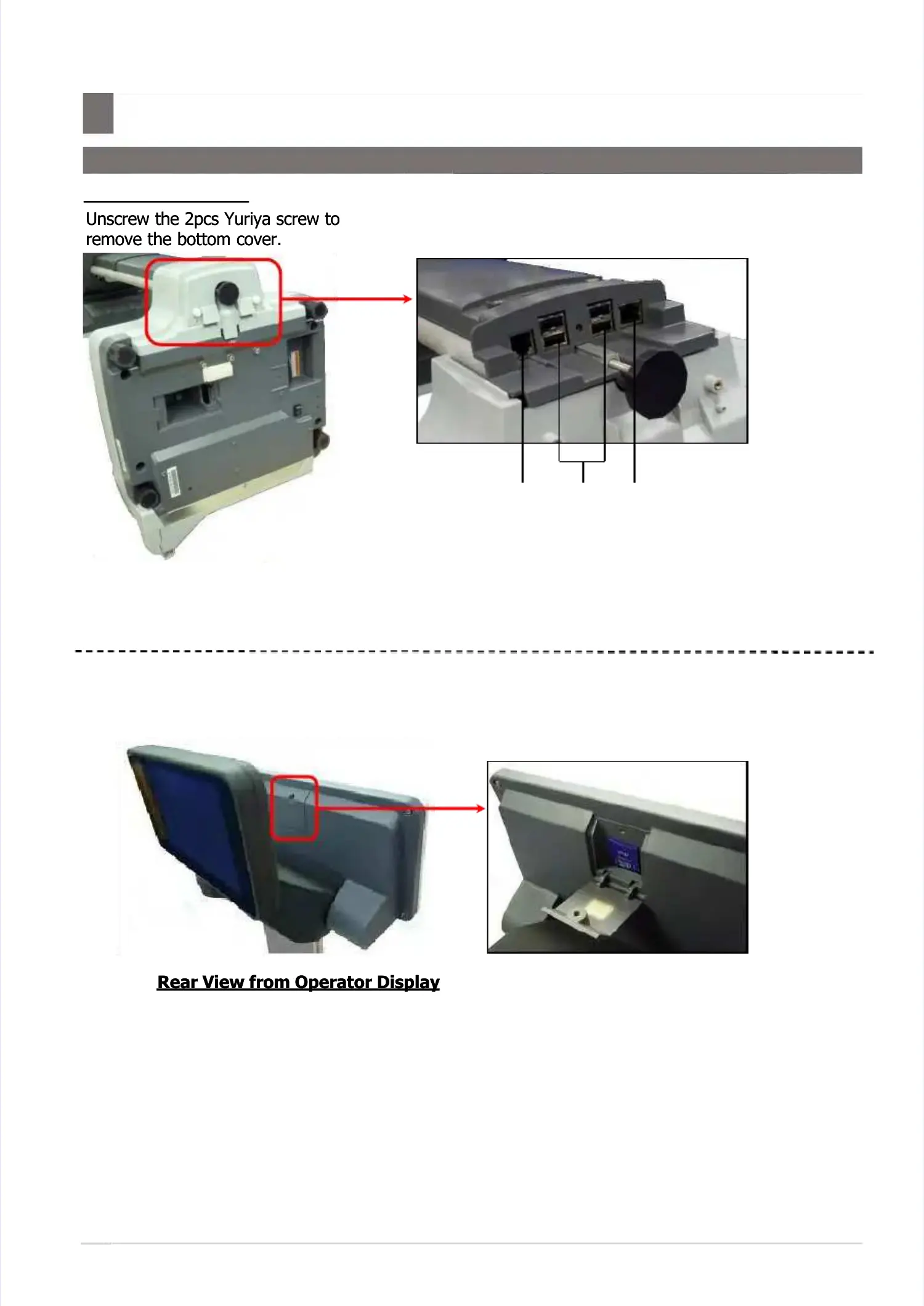

Unscrew the 2pcs Yuriya screw toUnscrew the 2pcs Yuriya screw to
remove the bottom cover.remove the bottom cover.
SD Card Insert DirectionSD Card Insert Direction
Unscrew the M3x8 binding headUnscrew the M3x8 binding head
screw to open the SD Card cover.screw to open the SD Card cover.
Rear View from Operator DisplayRear View from Operator Display
Cash Cash Drawer Drawer USBx4 USBx4 EthernetEthernet
