Digital Projection Titan Quad & Titan 800 Series CHOOSING A LENS Reference Guide
Ref 36
Rev B November 2012

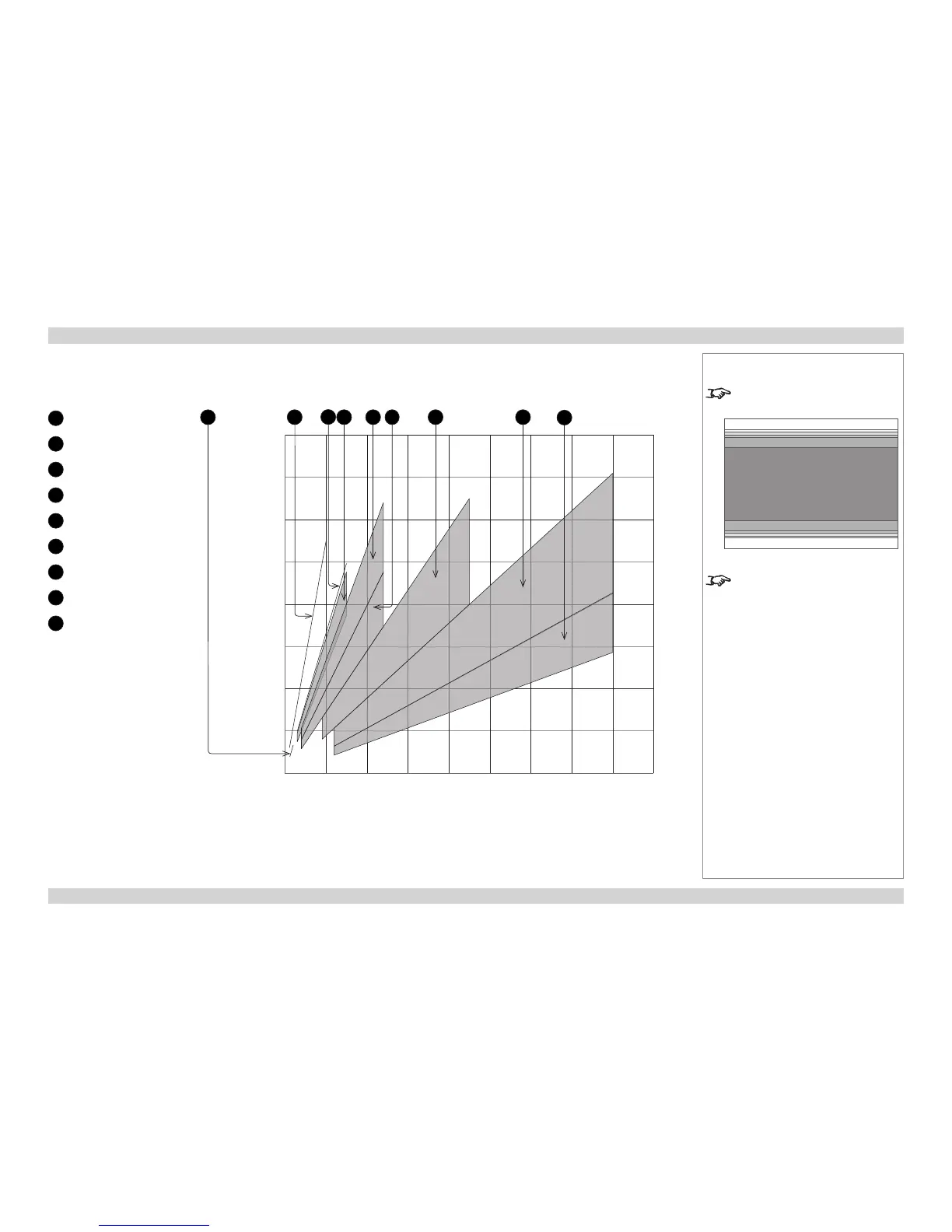

DMD™ resolution SX+, full width images
For SX+, full width images are 2.35:1 (Scope), 1.85:1 (Flat) 1.78:1 (16:9), 1.66:1 (Vista), 1.6:1 (16:10), and 1.33:1 (4:3, native aspect ratio).
1
1.21 : 1 xed lens (short)
2
0.73 : 1 xed lens
3
1.21 - 1 xed lens
4
1.26 - 1.61 : 1 zoom lens
5
1.5 - 2.02 : 1 zoom lens
6
2.02 - 2.77 : 1 zoom lens
7
2.77 - 4.51 : 1 zoom lens
8
4.51 - 7.53 : 1 zoom lens
9
7.5 - 11.2 : 1 zoom lens
Notes
This chart has a TRF of 1.0, for use
with the following images:
For information about individual lens
part numbers, see Appendix A at
the end of this document.
2.35:1 (Scope), 1.85:1 (Flat),
1.78:1 (16:9), 1.66:1 (Vista),
1.6:1 (16:10) and 1.33:1 (native)
2.5 m (8.2 ft)
5.0 m (16.4 ft)
7.5 m (24.6 ft)
10.0 m (32.8 ft)
12.5 m (41.0 ft)
15.0 m (49.2 ft)
17.5 m (57.4 ft)
20.0 m (65.6 ft)
Throw distance
Screen width
20 m
(66 ft)
40 m
(131 ft)
60 m
(197 ft)
80 m
(262 ft)
10 m
(33 ft)
30 m
(98 ft)
50 m
(164 ft)
70 m
(230 ft)
90 m
(295 ft)
4 5 6 7 8
9
1
3
2
