Digital Projection Titan Quad & Titan 800 Series WIRING DETAILS Connection Guide
Conn 10
Rev F November 2012
Input 10: SUB/HDMI
19 way type A connector
1 TMDS Data 2+
2 TMDS Data 2 Shield
3 TMDS Data 2-
4 TMDS Data 1+
5 TMDS Data 1 Shield
6 TMDS Data 1-
7 TMDS Data 0+
8 TMDS Data 0 Shield
9 TMDS Data 0-
10 TMDS Clock+
11 TMDS Clock Shield
12 TMDS Clock-
13 CEC
14 not connected
15 SCL (DDC Clock)
16 SCA (DDC Data)
17 DDC/CEC Ground
18 +5 V Power
19 Hot Plug Detect

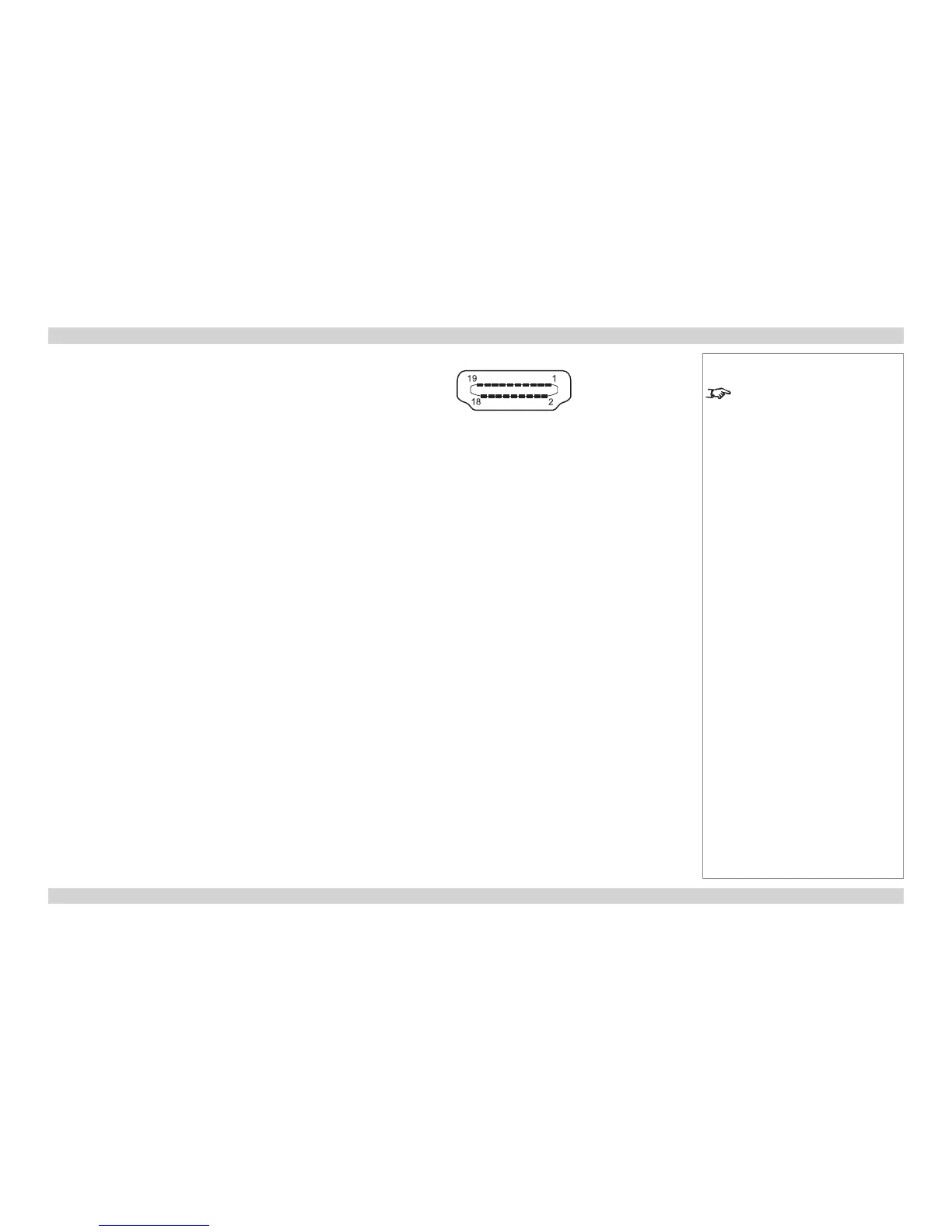

HDMI: pin view of panel connector
Notes
For full details of all input settings,
see the Operating Guide.
