Digital Projection Titan Super Quad Series User Guide

Digital Projection Titan Quad & Titan 800 Series SCREEN REQUIREMENTS Reference Guide
Ref 16
Rev B November 2012

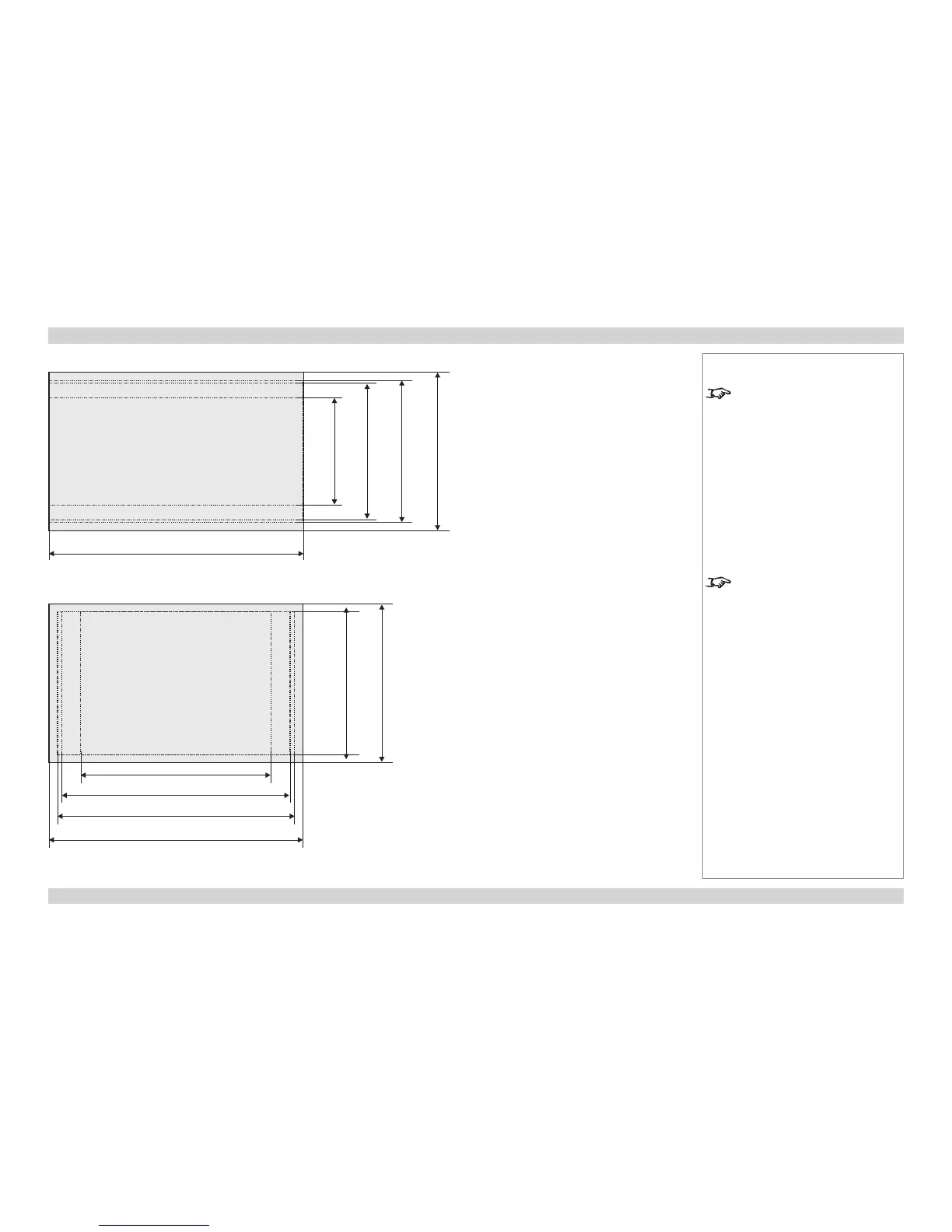

WUXGA images displayed full width
WUXGA images displayed with a height of 1080 pixels
full width = 1920 pixels
2.35:1(Scope)
= 817 pixels
1.85:1
= 1037 pixels
16:9 = 1.78:1
= 1080 pixels
full height
= 1200 pixels
Notes
The images are shown here scaled
automatically by the projector.
The image may be scaled differently
if the aspect ratio is set differently in
the
Geometry menu.
The images shown here cannot ll
the full height of the DMD™, and will
be scaled to a height of 1080 pixels.
4:3 = 1.33:1 = 1440 pixels
full height
= 1200 pixels
1.66:1 (Vista) = 1792 pixels
16:10 = 1.6:1 = 1728 pixels
max possible image height
= 1080 pixels
full width = 1920 pixels
