Digital Projection Titan Quad & Titan 800 Series A TOUR OF THE MENUS Operating Guide
Op 12
Rev F November 2012

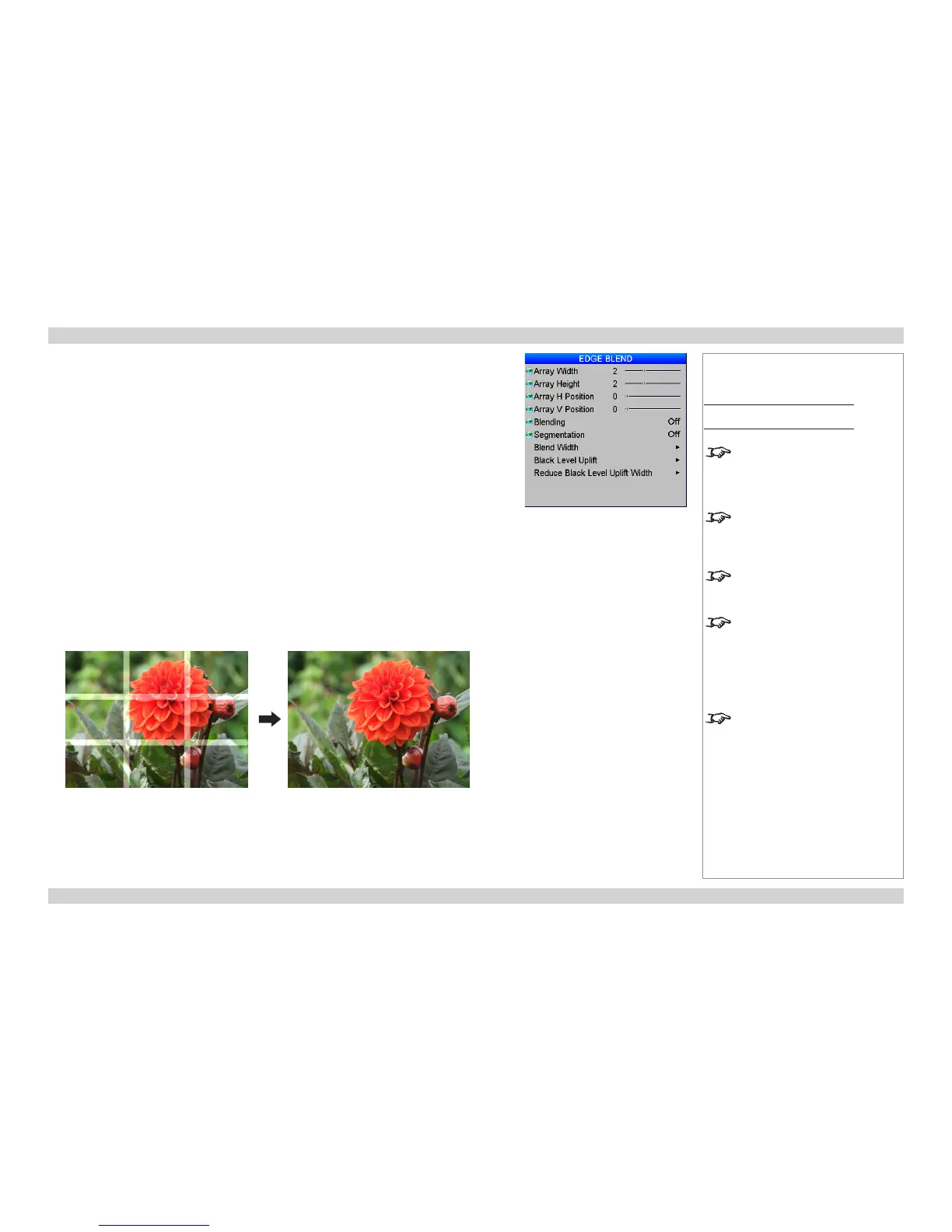

Edge Blend menu
When several projectors are used to create a large tiled image, the edges need to be blended to avoid
the overlaps appearing brighter than the rest of the image. The Edge Blend menu is available only
when Setup > System > Conguration is set to Edge Blend.
Array Width and Height
• Set this to the total number of projectors in the array. None of the other options are available until
one of these two settings is greater than 1. The maximum number of projectors is 4 x 4.
Array H Position and V Position
• These two parameters need to be set correctly for each projector in the array, so that it can
determine which edges are to be blended. Sometimes only one edge overlaps, sometimes two,
three or four.
Blending
• Set this to Off for a lone projector, On to enable Edge Blending, or Align Pattern to help adjust
the physical position of the projectors.
Segmentation
• Set this to On, if you want the projector to divide up the image into tiles, or Off if you have external
equipment to do this.
Notes
Main Menu
Edge Blend
This menu is available only when
Setup > System > Conguration is
set to
Edge Blend.
None of the other blend options
are available until either the Array
Width or the Array Height setting is
greater than 1.
Note that the position numbering
starts from zero, so the top left
projector is at position H 0, V 0.
Which settings are available in these
menus depends on:
the number of projectors in the
array
the position of the projector in
the array
For additional information, see the
Reference Guide.
