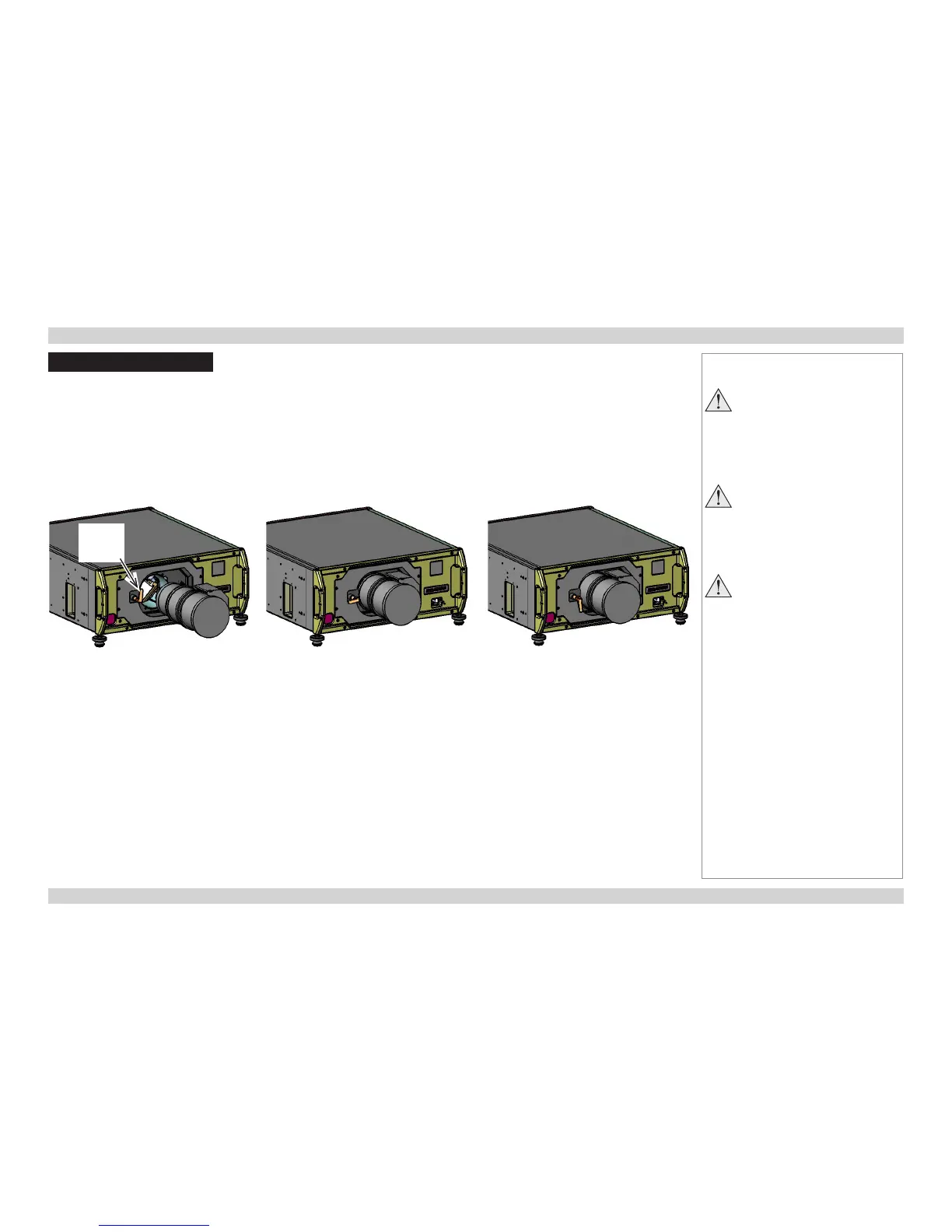

Fitting The Lens
• Turn the lens release lever clockwise so
that it is pointing upwards, to open the
lock fully.
• Remove the rear lens cap from the lens.
• Insert the lens into the lens aperture,
making sure that the plug on the zoom
drive mechanism lines up with the socket
on the front of the projector, then push
the lens in rmly as far as it will go.
Lens
release
lever
Notes
Always allow the lamp to cool for
5 minutes before:
- disconnecting the power
- moving the projector
The lens release lever should
always be set to the locked
position to prevent the lens from
falling out.
Do not place the projector with its
front panel down on a surface, as
this may damage the lens or the
lens release lever.
• Turn the lens release lever anti-clockwise
to the mid-position.
• The lens can now be pushed in further.
Push the lens in rmly as far as it will go.
• Turn the lens release lever fully
anti-clockwise so that it is pointing
downwards, to close the lock fully.
