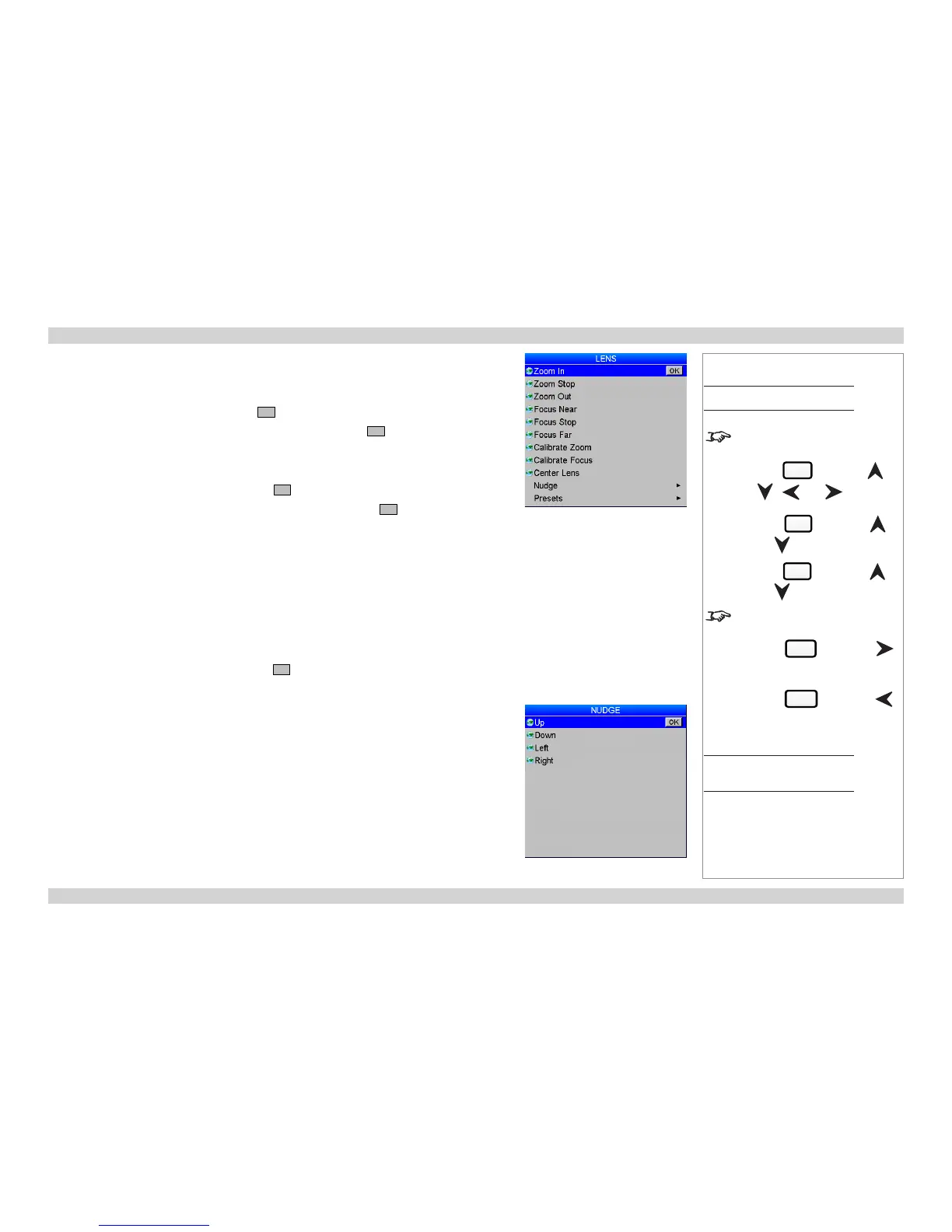

Lens menu
Zoom
To move the lens in or out:
1. Select Zoom In or Zoom Out, then press
OK
.
2. When the image is the desired size, select Zoom Stop then press
OK
.
Focus
To adjust the focus:
1. Select Focus Near or Focus Far, then press
OK
.
2. When the image is correctly focussed, select Focus Stop then press
OK
.
Calibrate Zoom and Calibrate Focus
Each time a new lens is tted into the projector, a calibration procedure must be carried out using these commands.
Before you use a newly tted lens, select Calibrate Zoom and Calibrate Focus in turn and wait until the projector establishes minimum
and maximum travel distances. Select one command and allow at least 60 seconds for the calibration to take place, then select the other
command.
Center Lens
To center the lens, select Center Lens and press
OK
.
Nudge
To position the image correctly on the screen, use the Nudge controls.
Notes
Main Menu
Lens
You can also move the lens, focus
and zoom using the keypad:
• Press
SHIFT
followed by ,
, and to shift the
lens up, down, left and right.
• Press
FOCUS
followed by
and
to adjust the focus.
• Press
ZOOM
followed by
and
to zoom in and out.
You can also calibrate zoom and
focus using the keypad:
• Press
RPY
followed by
to calibrate the lens zoom
mechanism.
• Press
RPY
followed by
to calibrate the lens focus
mechanism.
Main Menu
Lens
Nudge
