Digital Projection Titan Quad & Titan 800 Series SIGNAL INPUTS AND OUTPUTS Connection Guide
Conn 3
Rev F November 2012
3D Connections
3D sources up to 60Hz requiring frame doubling and left/right interleaving
• Connect to any of the Inputs on the Rear Connection Panel.
• Set 3D Type in the 3D menu to Auto, except when the projector has problems
selecting between Sequential, Frame Packing, Top-and-Bottom and Side-by-Side
(Half).
3D sources above 60Hz not requiring frame doubling
• Connect to either of the Inputs on the Side Connection Panel.
• Set 3D Type in the 3D menu to Auto, except when the projector has problems
selecting between Sequential, Frame Packing, Top-and-Bottom and Side-by-Side
(Half).
Dual Pipe 3D
• Connect to both of the Inputs on the Side Connection Panel.
• Input 9 (DVI) is the left image, and Input 10 (DVI/HDMI) is the right image.
3D Sync in
• Sync input signal.
3D Sync out
• Sync output signal. This may be affected by the Sync Offset and
Output Sync Polarity settings in the 3D menu.
Notes
For a complete listing of pin
congurations for all signal and
control connectors, see Wiring
Details later in this Guide.

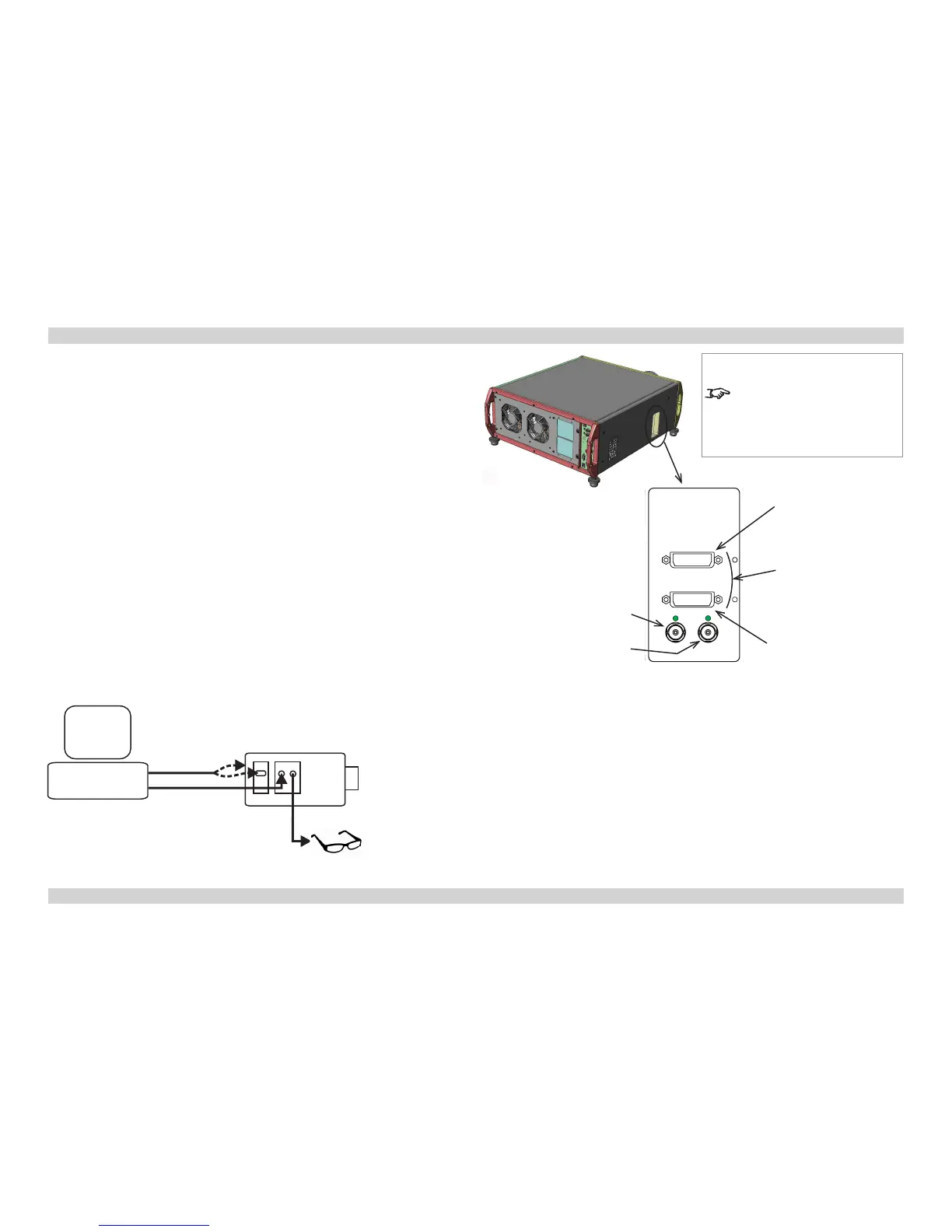

3D Sync in
3D Sync out
Side Connection Panel
DVI/HDMI
Input 10
together:
Dual Pipe 3D
DVI
Input 9
Sync in
Video
3D Server
Sync
Projector
Sync out
3D glasses or
Z screen
