Digital Projection Titan Quad & Titan 800 Series CHOOSING A LENS Reference Guide
Ref 29
Rev B November 2012
DMD™ resolution 1080p / WUXGA, full width images
For 1080p, full width images are 2.35:1 (Scope), 1.85:1 (Flat) 1.78:1 (native).
For WUXGA, full width images are all of the above, plus 1.66:1 (Vista) and 1.6:1 (native).
1
1.12 : 1 xed lens (short)
2
0.67 : 1 xed lens
3
1.12 - 1 xed lens
4
1.16 - 1.49 : 1 zoom lens
5
1.39 - 1.87 : 1 zoom lens
6
1.87 - 2.56 : 1 zoom lens
7
2.56 - 4.17 : 1 zoom lens
8
4.17 - 6.95 : 1 zoom lens
9
6.93 - 10.34 : 1 zoom lens
Notes
This chart has a TRF of 1.0, for use
with the following images:
For information about individual lens
part numbers, see Appendix A at
the end of this document.
For 1080p:
2.35:1 (Scope), 1.85:1 (Flat)
and 1.78:1 (native)
For WUXGA:
2.35:1 (Scope), 1.85:1 (Flat),
1.78:1 (16:9), 1.66:1 (Vista)
and 1.6:1 (native)

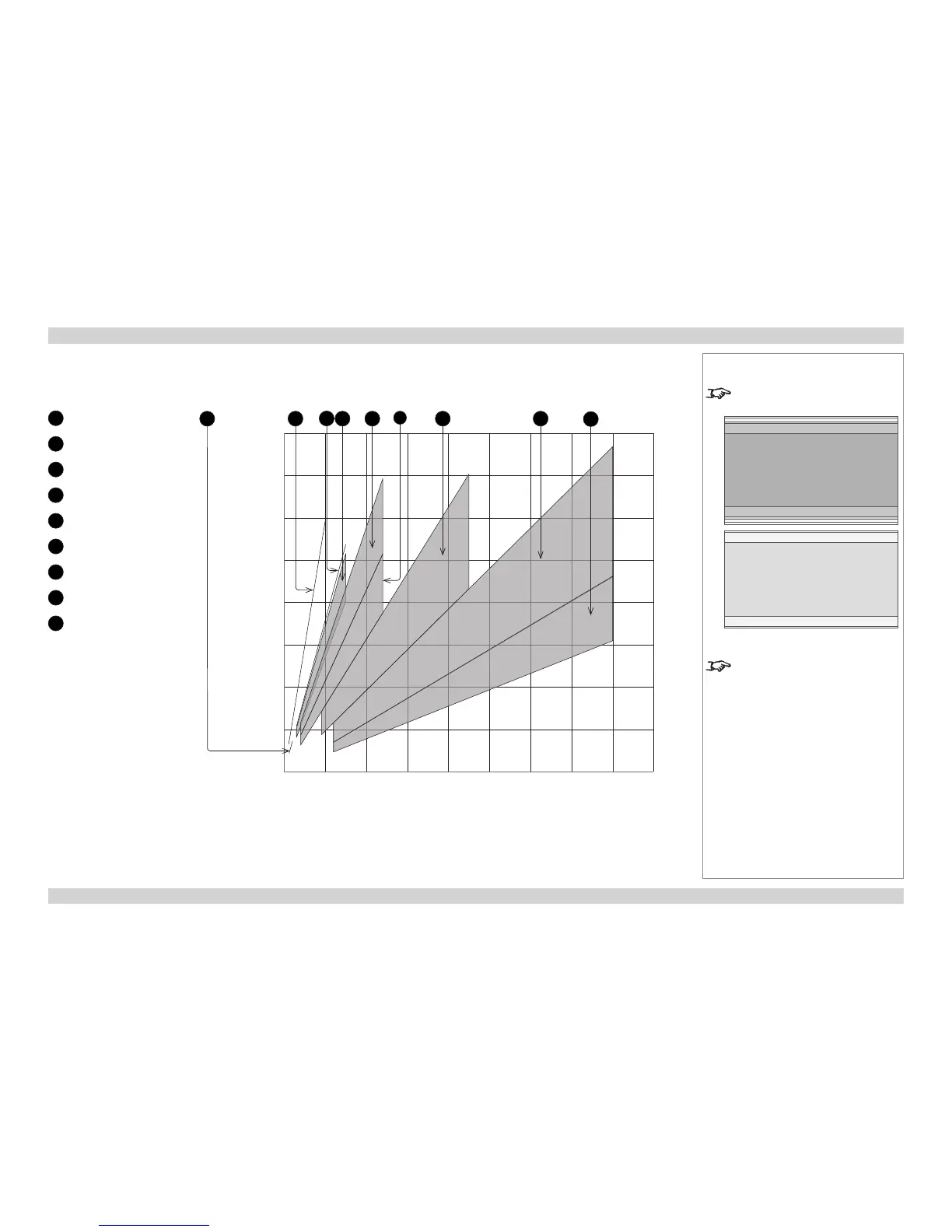

Throw distance
Screen width
20 m
(66 ft)
40 m
(131 ft)
60 m
(197 ft)
80 m
(262 ft)
10 m
(33 ft)
30 m
(98 ft)
50 m
(164 ft)
70 m
(230 ft)
90 m
(295 ft)
2.5 m (8.2 ft)
5.0 m (16.4 ft)
7.5 m (24.6 ft)
10.0 m (32.8 ft)
12.5 m (41.0 ft)
15.0 m (49.2 ft)
17.5 m (57.4 ft)
20.0 m (65.6 ft)
4 5
6
7 8
9
1
3
2
