Screen Requirements

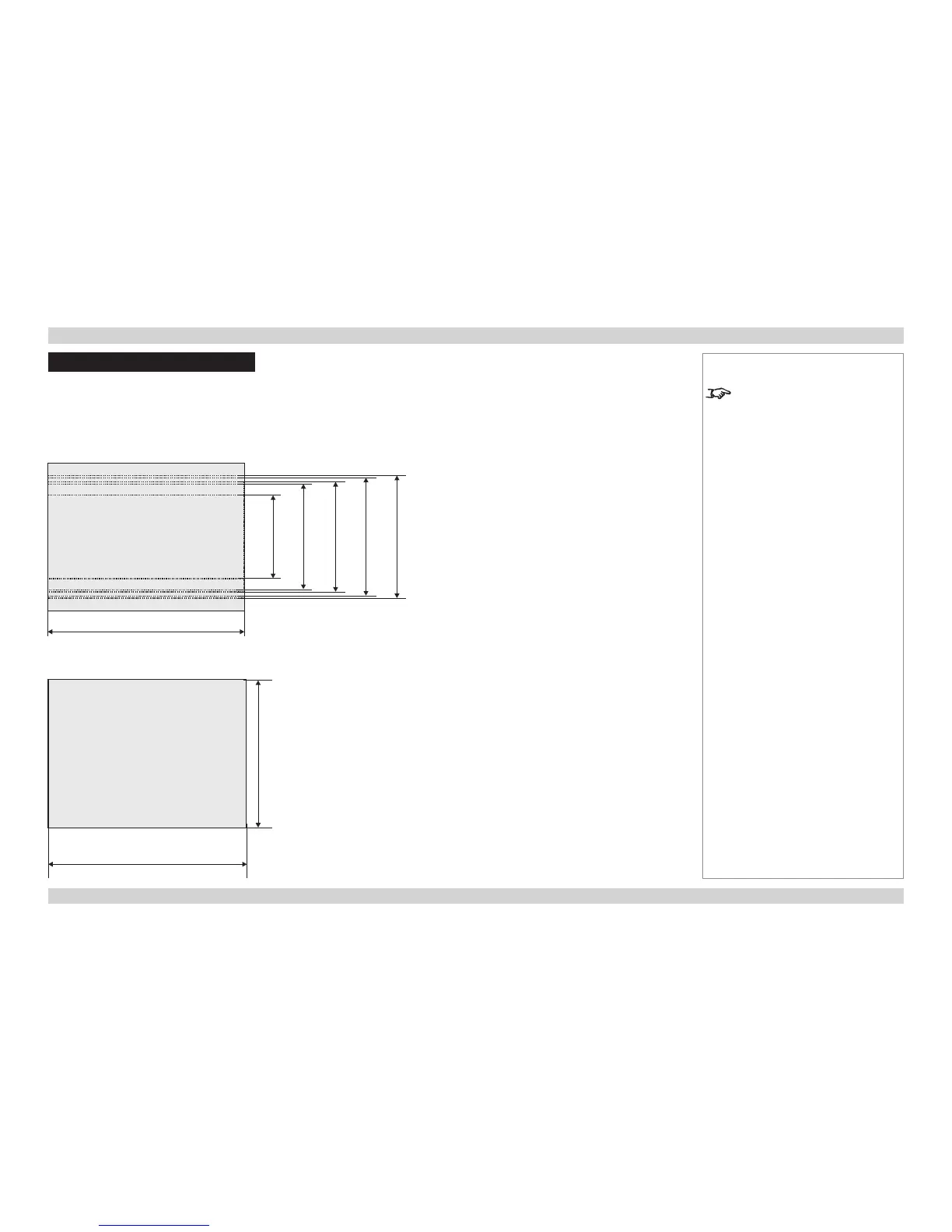

Fitting the image to the DMD™
If the source image supplied to the projector is smaller than the DMD™ resolution, the image will not ll the DMD™. The following examples
show how a number of common formats may be displayed, depending on your DMD™ resolution.
SX+ images displayed full width
SX+ images displayed full height
Notes
The images are shown here scaled
automatically by the projector.
The image may be scaled differently
if the aspect ratio is set differently in
the
Geometry menu.
2.35:1(Scope)
= 596 pixels
1.85:1
= 757 pixels
16:9 = 1.78:1
= 787 pixels
1.66:1 (Vista)
= 843 pixels
1.6:1
= 875 pixels
full width = 1400 pixels
full height = 1050 pixels
4:3 = 1.33:1 (native) = 1400 pixels
