Digital Projection Titan Quad & Titan 800 Series WIRING DETAILS Connection Guide
Conn 12
Rev F November 2012
RS232
9 way D-type connector
1 unused
2 Received Data (RX)
3 Transmitted Data (TX)
4 unused
5 Signal Ground
6 unused
7 unused
8 unused
9 unused
LAN connection
RJ45 socket
Notes
Only one remote connection (RS232
or LAN) should be used at any one
time.
For full details of all network
settings, see the Operating Guide.

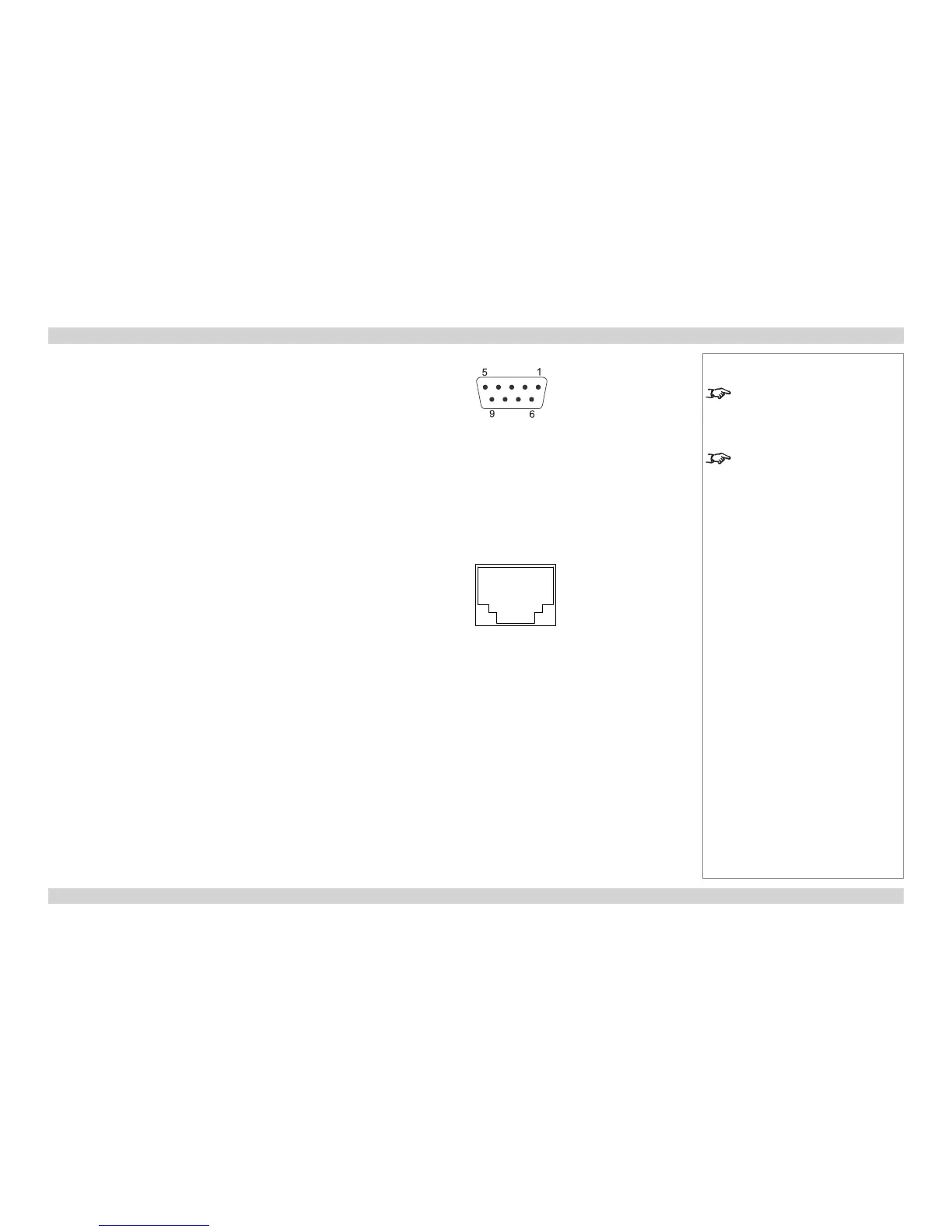

RS232:
pin view of female connector
LAN connection
