Digital Projection Titan Quad & Titan 800 Series A TOUR OF THE MENUS Operating Guide
Op 14
Rev F November 2012

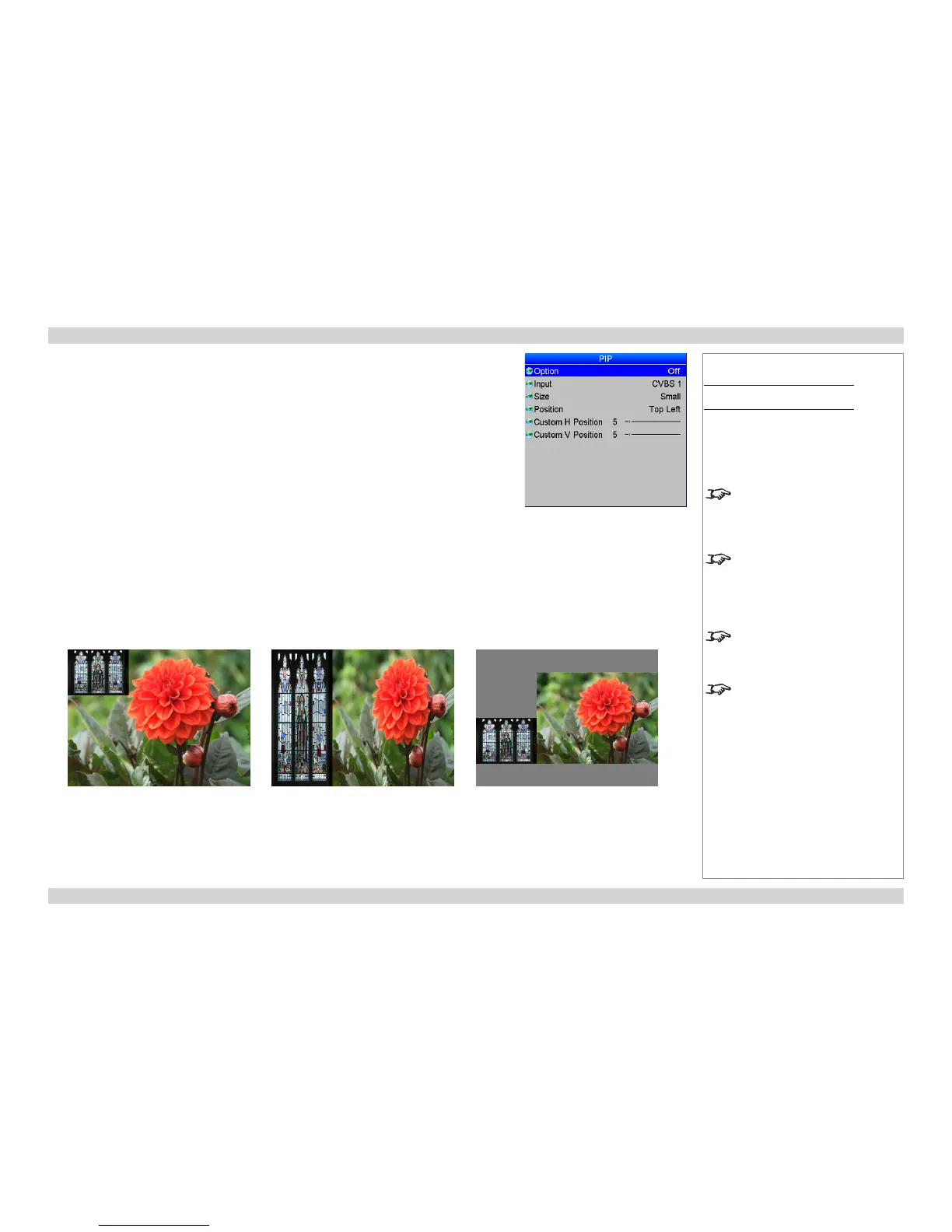

PIP menu
Two images can be combined, in three different ways using this feature. The PIP menu is available
only when Setup > System > Conguration is set to PIP.
Option
• Select PIP, PAP, or POP mode from the drop-down list.
Input
• Select an Input from the drop-down list. The inputs are divided into two groups – the main image
must be from one group, and the sub-image must be from the other group.
• Group A: CVBS 1, CVBS 2, S-VIDEO and 3G-SDI
• Group B: COMPONENT, VGA, DVI, HDMI and DVI-A
Size
• Select a size for the sub-image from the drop-down list.
Position
• Select one of the preset positions for the sub-image from the drop-down list.
Custom Position
• If you have chosen Custom from the Position drop-down list, then you can use the sliders to
position the image manually.
Notes
Main Menu
PIP
This menu is available only when
Setup > System > Conguration is
set to PIP.
PIP, PAP and POP are NOT
possible when Input is set to Test
Pattern.
In these examples, the ower is the
main image, and the window is the
sub-image, shown at the Medium
size setting.
The two images MUST be from
different Input groups.
The Position settings apply ONLY
to PIP mode. PAP and POP are
always as shown in these examples.
PIP: Picture In Picture PAP: Picture And Picture POP: Picture Opposite Picture
