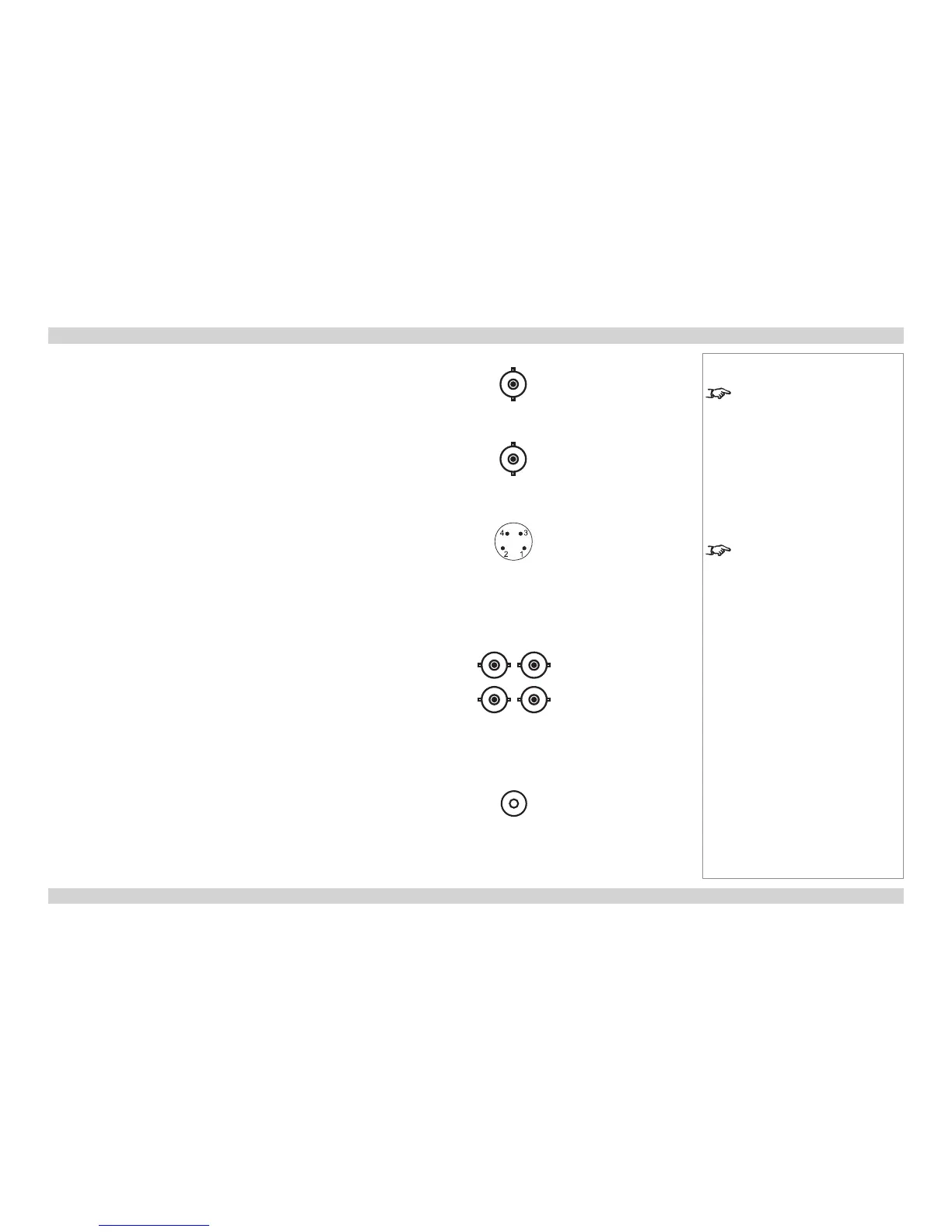

Input 4: 3G-SDI
75 ohm BNC
Input 5: Composite 1
75 ohm BNC
Input 6: S-Video
4 pin mini-DIN
1 Y Ground
2 C Ground
3 Luminance (Y)
4 Chrominance (C)
Input 7: Component
4 x 75 ohm BNC
RGsB RGBS YPrPb
Pb/B B B Pb/Cb
Y/G G + Sync G Y
Pr/R R R Pr/Cr
SYNC Sync
Input 8: CVBS
RCA Phono
3G-SDI connector
Notes
3G-SDI signals are very high
speed digital signals which require
better quality coaxial cable than
conventional analogue video. The
data rate is 3 Gigabits per second.
In choosing cable length and
connectors for any installation the
frequency response loss in decibels
should be proportional to √f, from
1MHz, to 3GHz.
For full details of all input settings,
see the Operating Guide.
Composite 1 connector
S-Video: pin view of female connector
Component
CVBS connector
