Digital Projection Titan Quad & Titan 800 Series POSITIONING THE IMAGE Reference Guide
Ref 39
Rev B November 2012
Positioning The Image (continued)
Any single adjustment outside the ranges specied on the following page may result in an unacceptable level of distortion, particularly at the
corners of the image, due to the image passing through the periphery of the lens optics.
If the lens is to be shifted in two directions combined, the maximum range without distortion will be somewhat less, as can be seen in the
illustrations below.
Notes
For more information on shifting
the lens, see Lens Menu in the
Operating Guide.

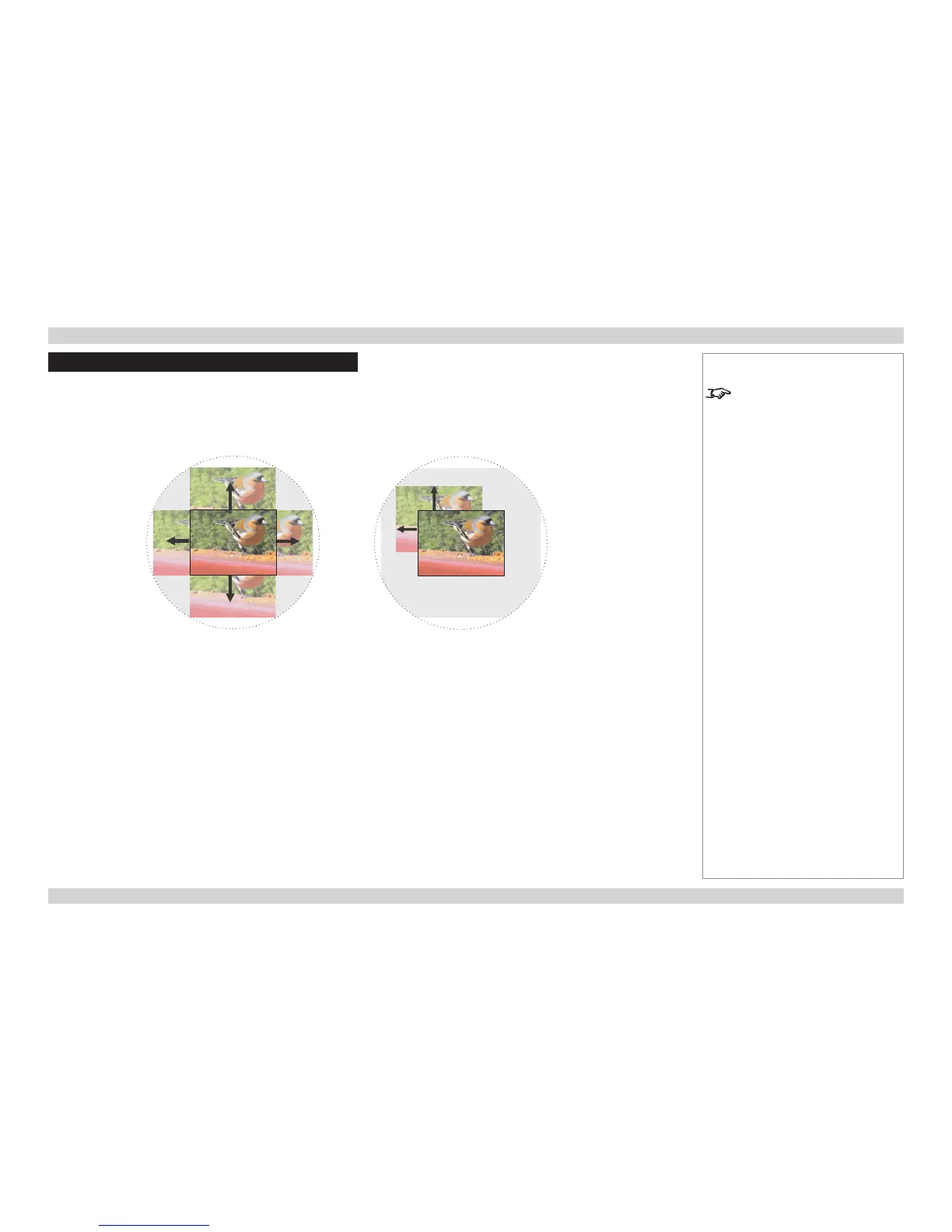

Full horizontal or vertical shift Combined shift is reduced
