HYBRID Coater Service Manual ver1.1 Appendix F
157

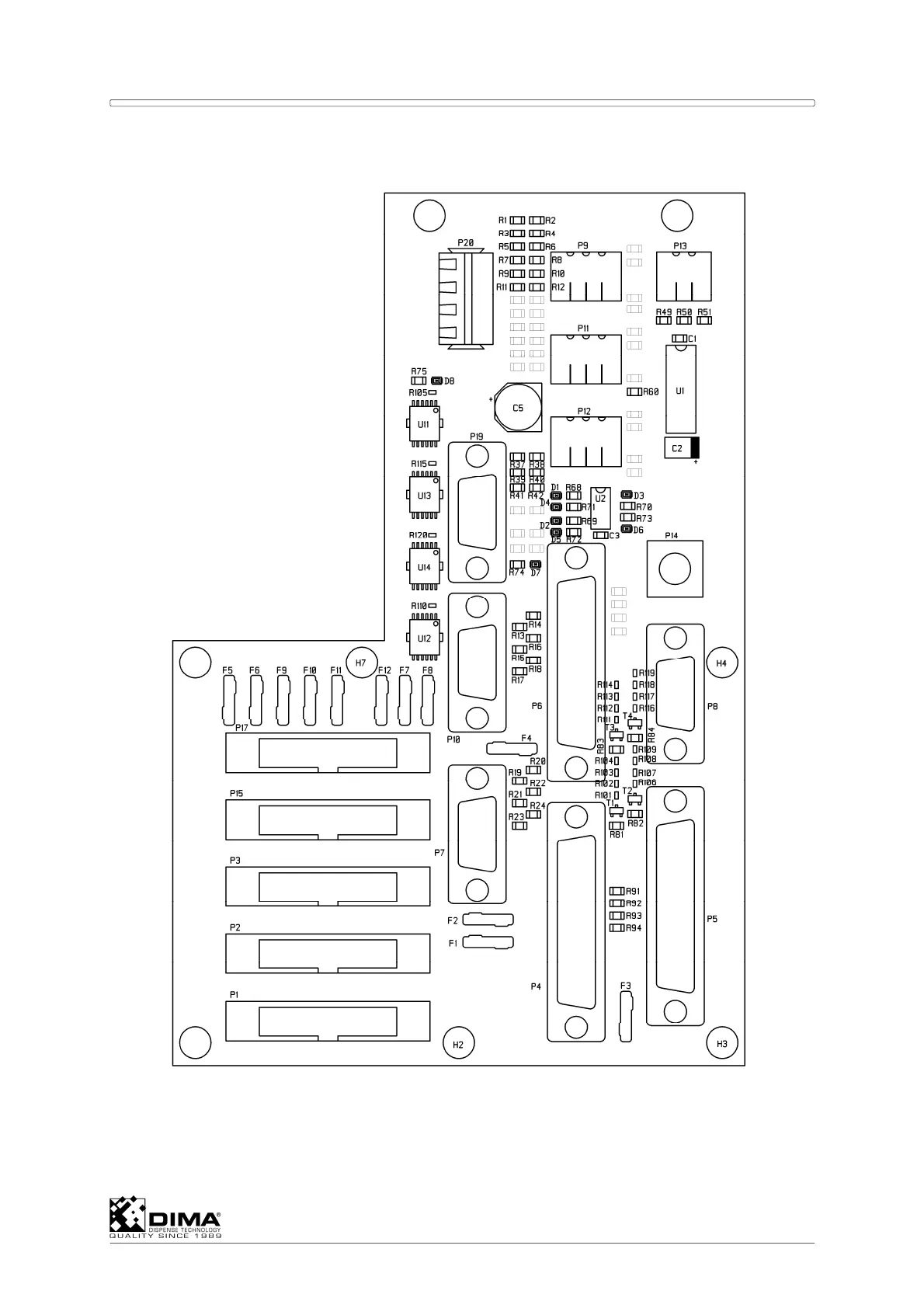

VERSION 2 (NEW): Below figure shows the position of the connectors on the PCB.
Some I/O is dedicated for the machine. Other are present for present and future options.
Some of this last I/O is flexible, which means that it can be used as an input which function is
determined by the software running on the Personal Computer.
