Detection Range
Detection Range of the Vision System
Detection Distance: Upward/Downward: 0.6-30 m, Forward/Backward/Left/Right: 0.7-40 m
FOV: Forward/Backward/Downward: 65° (horizontal), 50° (vertical)
Left/Right/Upward: 75° (horizontal), 60° (vertical)

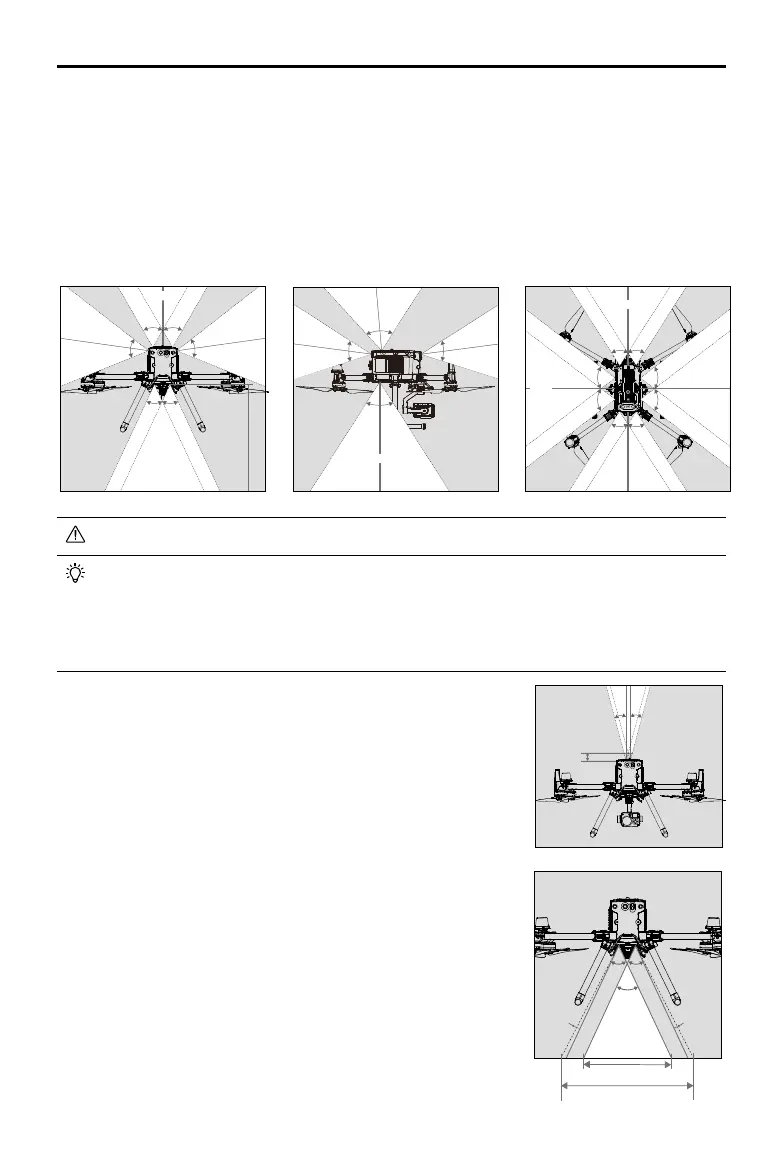

The detection range of the vision system is depicted below. Note that the aircraft cannot sense
and avoid obstacles that are not within the detection range.
• The aircraft cannot detect objects in the grey area. Fly with caution.
• Users can set the braking distance and warning distance in the DJI Pilot 2 App. The
aircraft can automatically stop when flying near to the braking distance. Once the
aircraft enters the warning distance, the obstacle information will be displayed as
yellow. When the aircraft is close to the obstacle avoidance safety distance, the
obstacle information will be displayed as red.
Detection Range of the Infrared Sensing System
Detection Distance: 0.1-8 m
FOV: 30°
Note that the aircraft cannot sense and avoid obstacles that
are not within the detection range. The diagram shows the
detection range of the upward infrared sensing system.
Not Obstruct Zone Note
There may be a ±2° error in the angle of the Vision System
due to errors in the assembly process. To prevent accidents,
please DO NOT attach any payload that might be in the
sensors’ Do Not Obstruct Zone. If the payload comes into
the Do Not Obstruct Zone, it is recommended to turn o the
vision system in the Pilot 2 app and y with caution.
