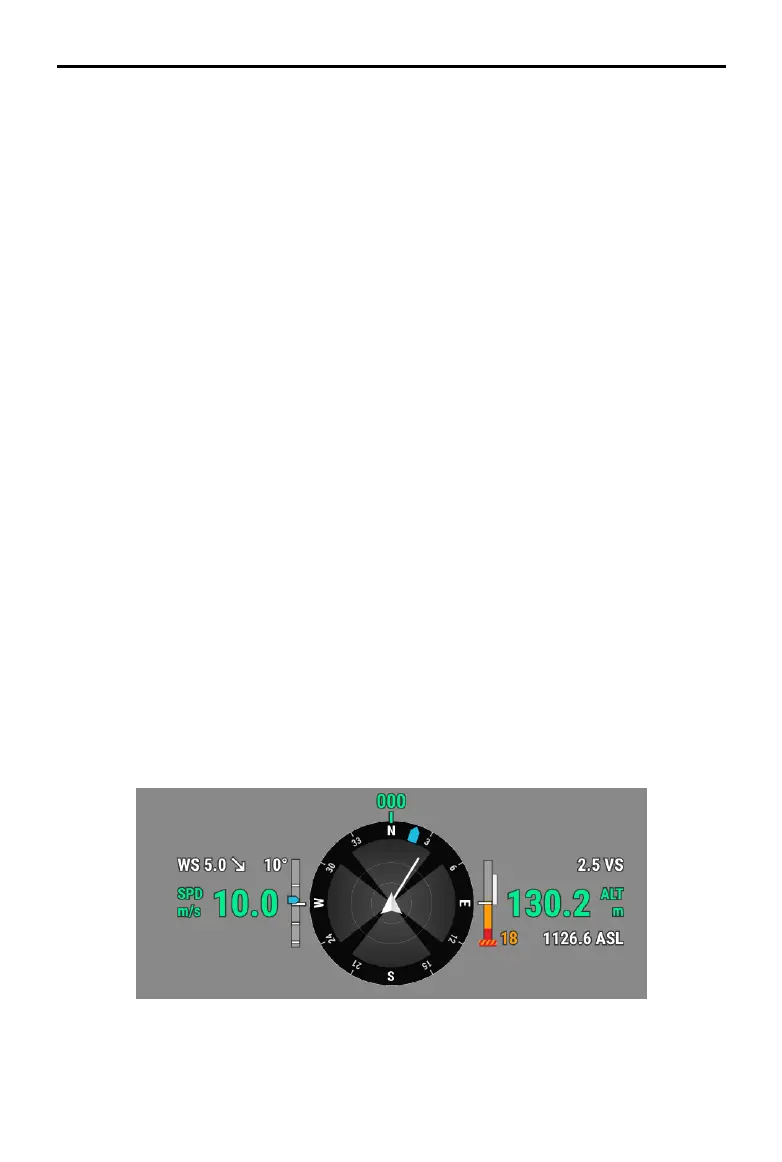

5. Home Point and Remote Controller Orientations:
a. Displays the home position relative to the aircraft. When the Home Point horizontal
distance exceeds 16 m, the Home Point icon will stay on the edge of the Navigation
Display.
b. When the relative distance between the Home Point and the remote controller is no
more than 5 meters, only the Home Point will be displayed in Navigation Display. When
the relative distance is more than 5 meters, the remote controller will be displayed as
a blue dot to indicate its position. When the horizontal distance between the remote
controller and the aircraft exceeds 16 meters, the remote controller position icon will
stay on the edge of Navigation Display.
c. When the compass of the remote controller is working normally, the blue dot shows the
direction of the remote controller. If the signal is poor during ight, point the arrow of
the remote controller in Navigation Display to the direction of the aircraft.
6. Home Point Distance: displays the horizontal distance between the Home Point and the
aircraft.
7. PinPoint Information: displays the name of the PinPoint and the horizontal distance from
the aircraft to the PinPoint, when PinPoint is enabled.
8. Waypoint Information: displays the name of the waypoint, the horizontal distance from
the aircraft to the waypoint, and the ascending or descending trajectory of the ight route,
during a mission ight.
9. RNG Target Point Information: displays the horizontal distance from the aircraft to the
target point, when the RNG laser rangender is enabled.
10. Vertical Obstacle Sensing Information: once an obstacle is detected in the vertical
direction, an obstacle bar icon will appear. When the aircraft reaches the warning distance,
the icon will glow red and orange, and the remote controller will emit long beeping sounds.
When the aircraft reaches the obstacle braking distance, the icon will glow red, and the
remote controller will emit short beep sounds. Both the obstacle braking distance and the
warning distance can be set in DJI Pilot 2. Follow the prompted instructions in the app to set
them.
