Draytek Vigor2925 Series User Manual

Vigor2925 Series User’s Guide
98

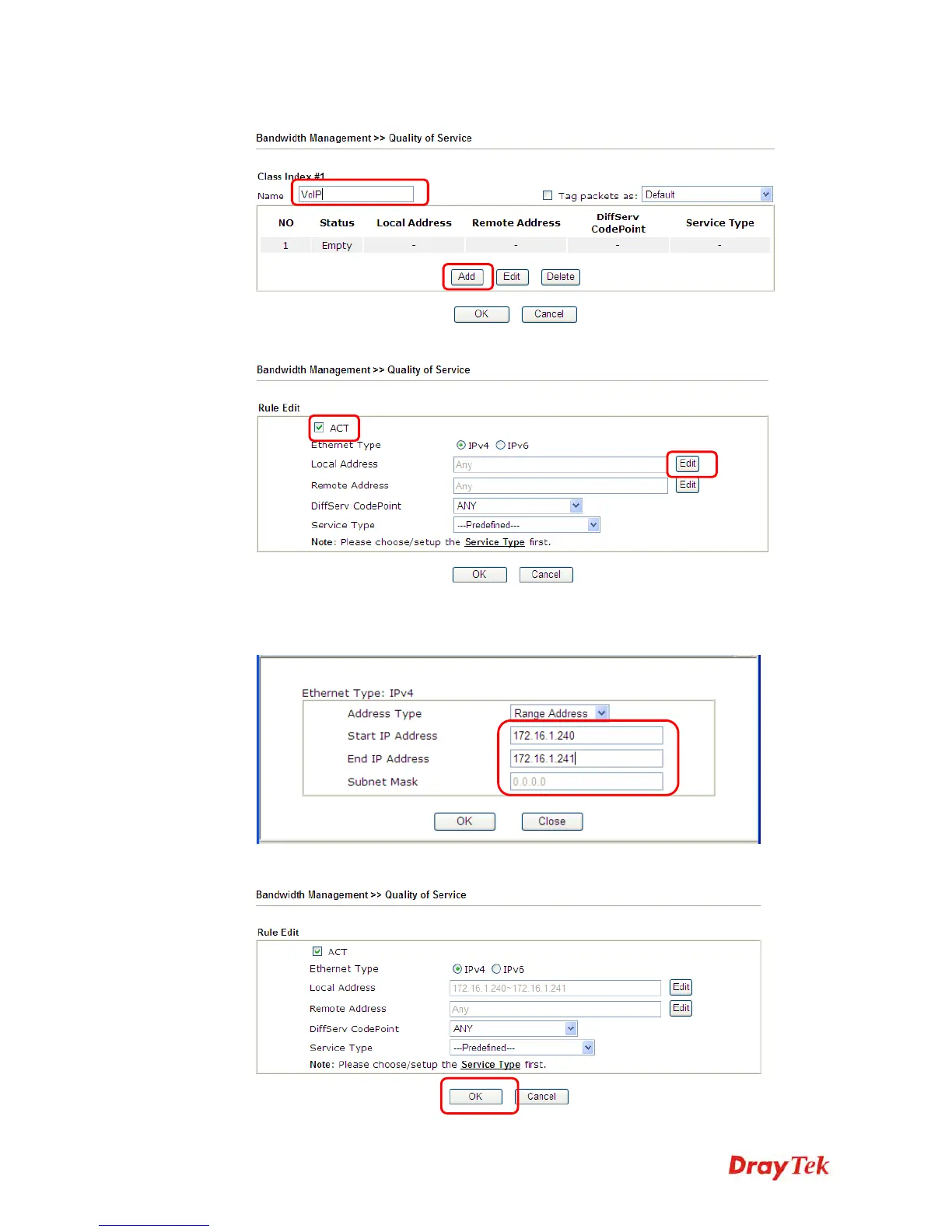

3. In the following page, type a name (e.g., VoIP) for such class and click Add.
4. Check the box of ACT. Click Edit to specify the local address.
5. In the pop-up window, choose Range Address as the Address Type and type the start IP
address and end IP address in relational fields. Click OK to save the settings and exit the
window.
6. Click OK again to save the settings.

Draytek Vigor2925 Series Specifications

General

WAN Ports	2 x Gigabit Ethernet
LAN Ports	4 x Gigabit Ethernet
USB Ports	2 x USB 2.0
VPN Tunnels	50
Humidity	10% to 90% non-condensing
VPN Throughput	200 Mbps
Load Balancing	Yes
QoS	Yes
VPN Protocols	IPSec, PPTP, L2TP, SSL
Firewall	SPI
Power Supply	12V DC
Operating Temperature	0°C to 40°C
Storage Temperature	-25°C to 70°C
Wireless	Optional (with Vigor2925ac)
