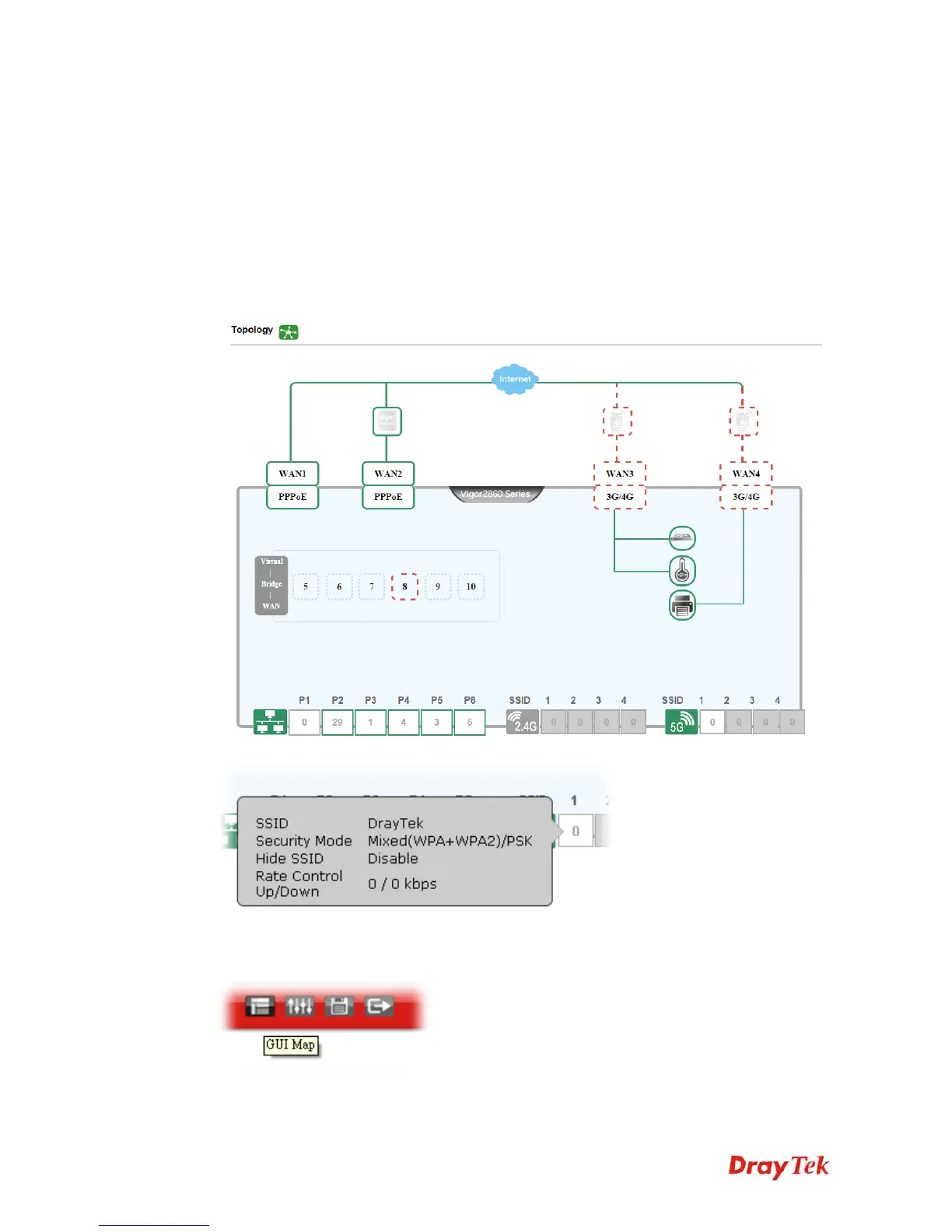

A visualized dashboard is provided for the router’s administrator or users to have a quick view
of WAN/LAN installation, USB devices installation and software configuration. From this
page, the router’s administrator or users can quicky check if hardware connection (WAN
connection, LAN connection) is well or not. In addition, by moving the mouse cursor on
specified icons (e.g., SSID 2.4G, SSID 5G) on the dashboard, corresponding information will
be open by tip window. Moreover, move the mouse cursor on the icon (e.g., Phone 1, Phone 2,
DialPlan and SIP Accounts) displayed on the screen, the system will open related
configuration web page immediately.
Below shows the topology of switch management:
