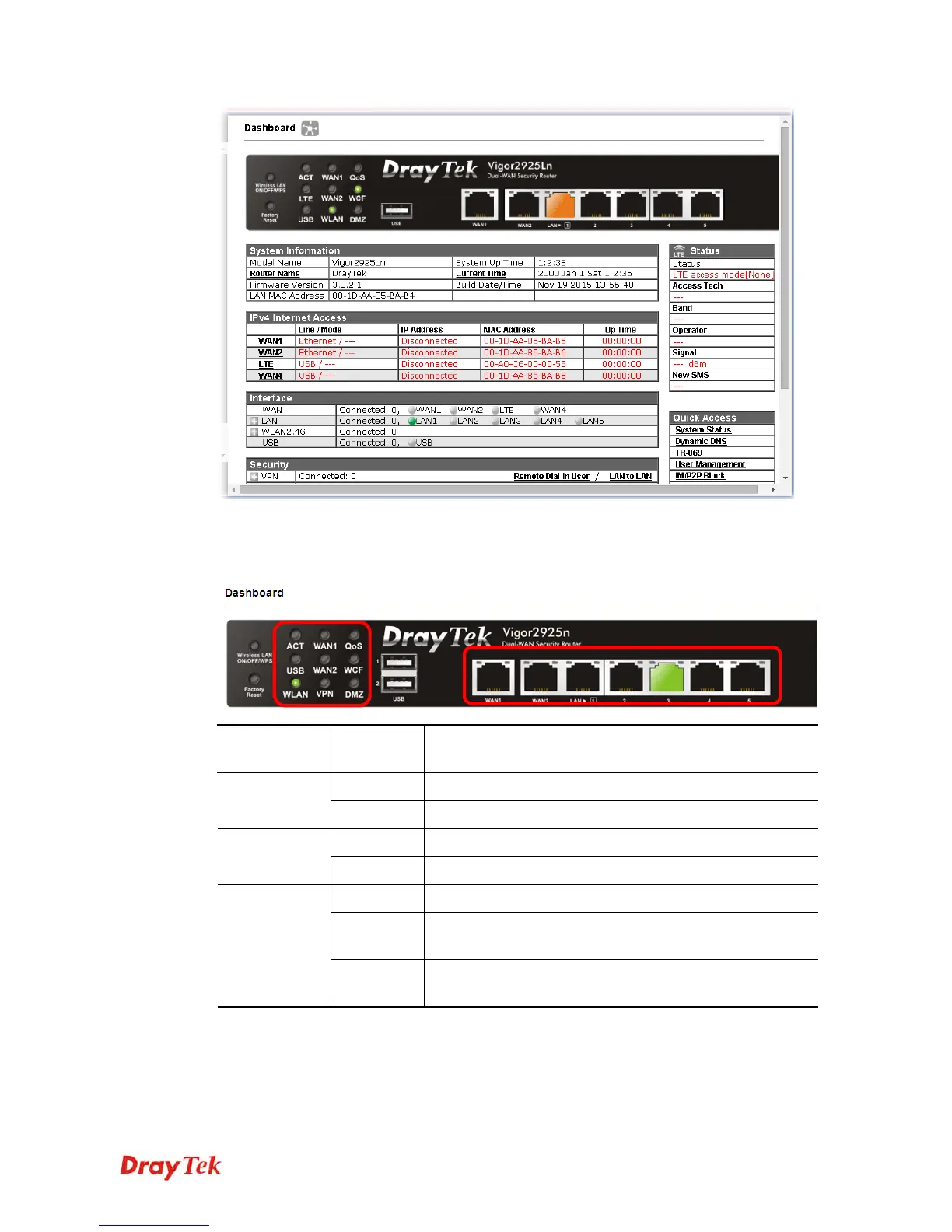

On the top of the Dashboard, a virtual panel (simulating the physical panel of the router)
displays the physical interface connection. It will be refreshed every five seconds.
Port Color
Displayed
Explanation
Black It means the router or the function is not working. LED (left side)
Green It means the router or the function is working.
Black It means no USB device is connected. USB
Green It means a USB device is connected.
Black It means such port is disconnected.
Green It means such port is connected (with Giga transmission
rate, 1Gbps) physically.
Ethernet Port
(WAN/LAN)
Orange It means such port is connected (with 10/100 Mbps)
physically.
For detailed information about the LED display, refer to 1.3 LED Indicators and
Connectors.
