Multi-VLAN allows users to create profiles for specific WAN interface and bridge
connections for user applications that require very high network throughput. Simply go to
WAN and select Multi-VLAN.
G
G
e
e
n
n
e
e
r
r
a
a
l
l

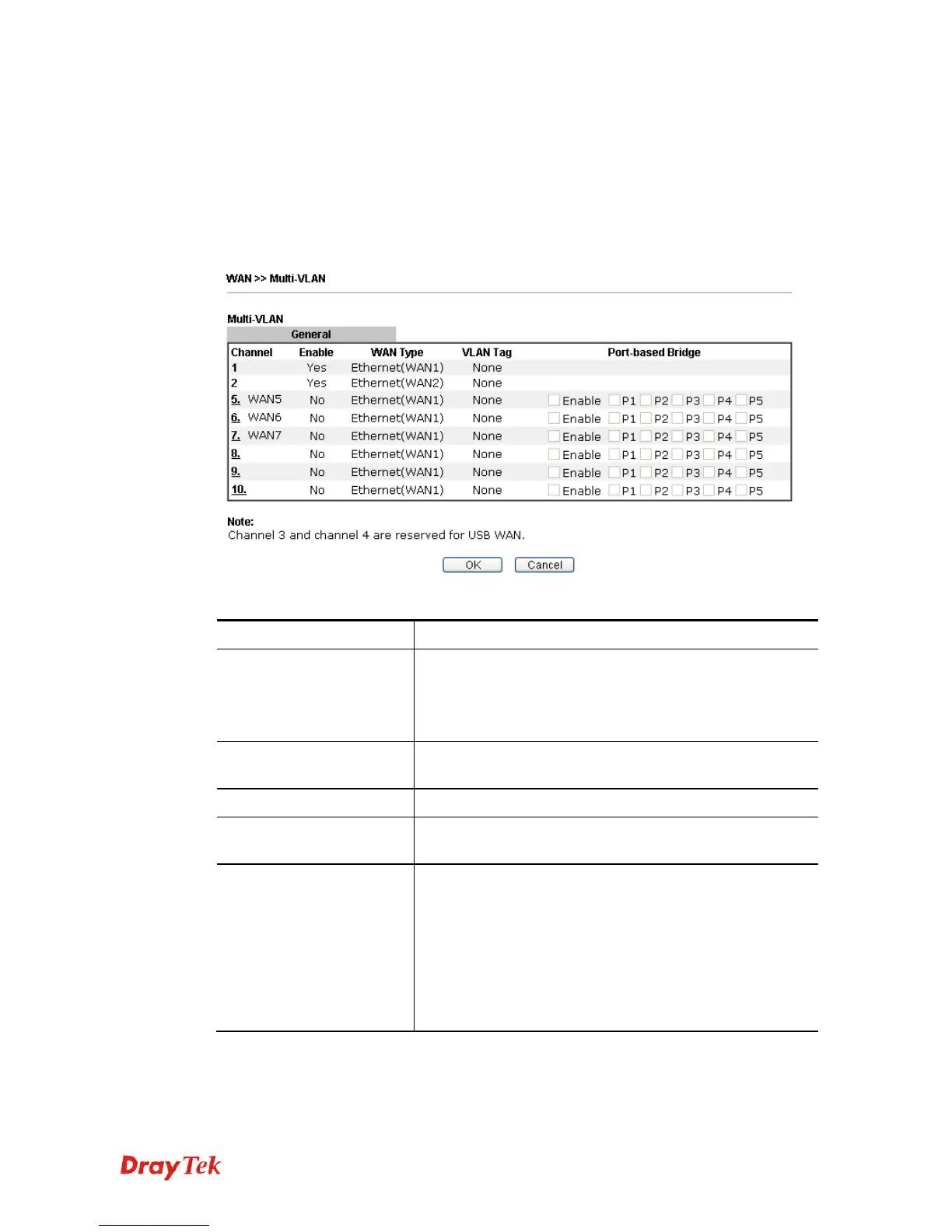

This page shows the basic configurations used by every channel.
Available settings are explained as follows:
Item Description
Channel
Display the number of each channel.
Channels 1 and 2 are used by the Internet Access web user
interface and can not be configured here.
Channels 5 ~ 10 are configurable.
Enable
Display whether the settings in this channel are enabled
(Yes) or not (No).
WAN Type
Displays the physical medium that the channel will use.
VLAN Tag
Displays the VLAN tag value that will be used for the
packets traveling on this channel.
Port-based Bridge
The network traffic flowing on each channel will be
identified by the system via their VLAN Tags. Channels
using the same WAN type may not configure the same
VLAN tag value.
Enable - Check this box to enable the port-based bridge
function on this channel.
P1 ~ P5 – Check the box(es) to build bridge connection on
LAN.
Click any index (8, 9 and 10) to get the following web page:
