Draytek Vigor2925 Series User Manual

Vigor2925 Series User’s Guide
126

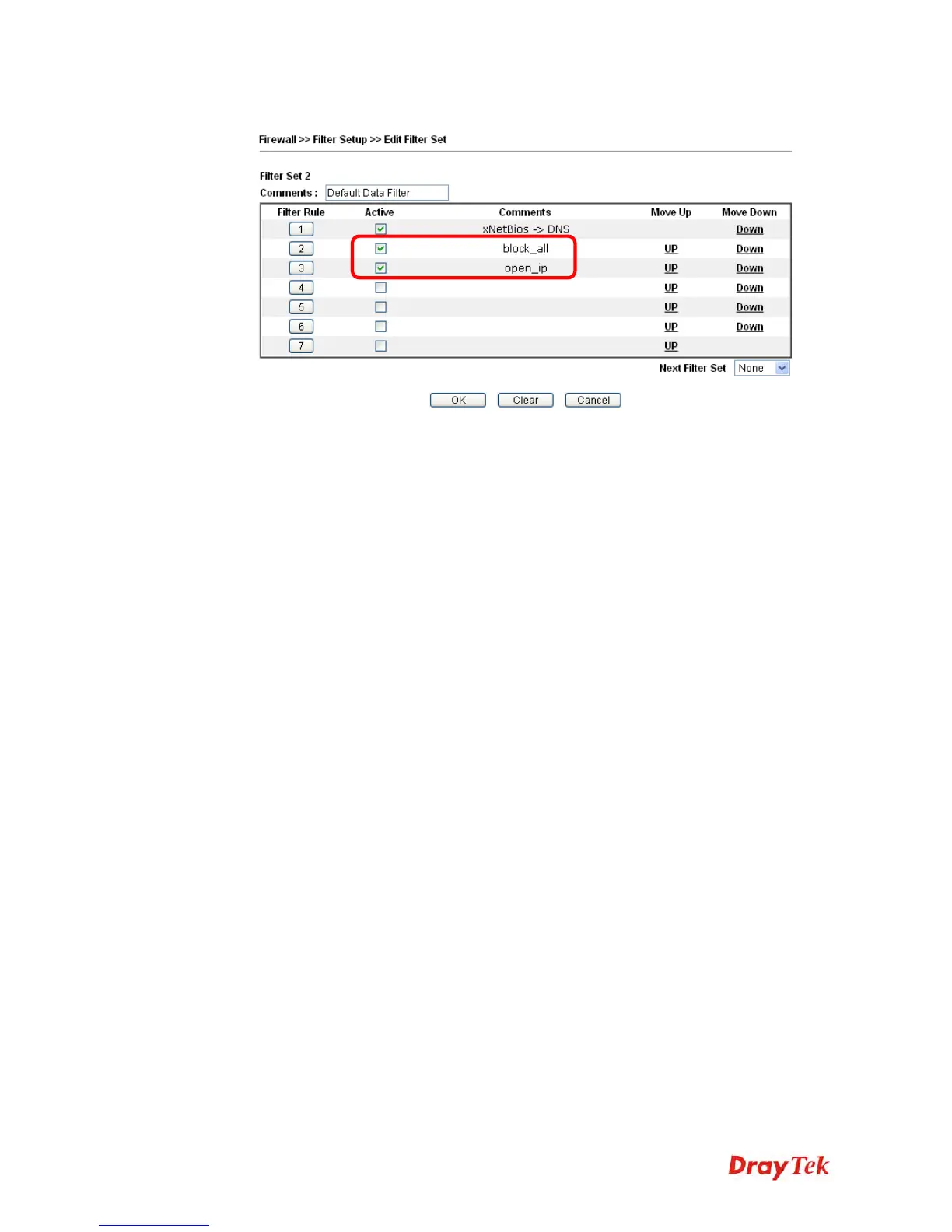

8. Both filter rules have been created. Click OK.
9. Now, all the settings are configured well. Only the computers with the IP addresses
within 192.168.1.10 ~ 192.168.1.20 can access to Internet.

Draytek Vigor2925 Series Specifications

General

WAN Ports	2 x Gigabit Ethernet
LAN Ports	4 x Gigabit Ethernet
USB Ports	2 x USB 2.0
VPN Tunnels	50
Humidity	10% to 90% non-condensing
VPN Throughput	200 Mbps
Load Balancing	Yes
QoS	Yes
VPN Protocols	IPSec, PPTP, L2TP, SSL
Firewall	SPI
Power Supply	12V DC
Operating Temperature	0°C to 40°C
Storage Temperature	-25°C to 70°C
Wireless	Optional (with Vigor2925ac)
