Draytek Vigor2925 Series User Manual

Vigor2925 Series User’s Guide
279
Source/Destination IP

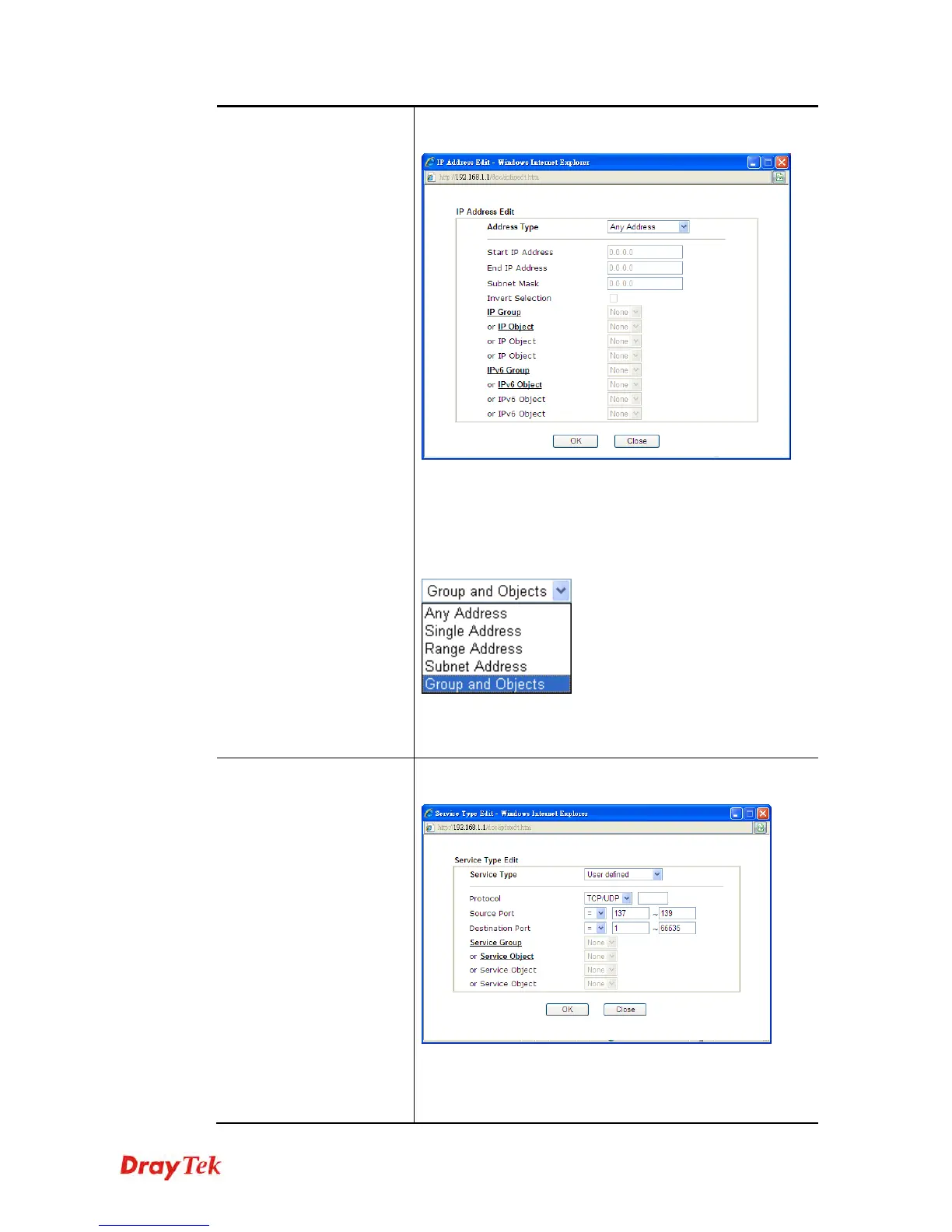

Click Edit to access into the following dialog to choose the
source/destination IP or IP ranges.
To set the IP address manually, please choose Any
Address/Single Address/Range Address/Subnet Address
as the Address Type and type them in this dialog. In
addition, if you want to use the IP range from defined
groups or objects, please choose Group and Objects as the
Address Type.
From the IP Group drop down list, choose the one that you
want to apply. Or use the IP Object drop down list to
choose the object that you want.
Service Type
Click Edit to access into the following dialog to choose a
suitable service type.
To set the service type manually, please choose User
defined as the Service Type and type them in this dialog. In
addition, if you want to use the service type from defined
groups or objects, please choose Group and Objects as the

Draytek Vigor2925 Series Specifications

General

WAN Ports	2 x Gigabit Ethernet
LAN Ports	4 x Gigabit Ethernet
USB Ports	2 x USB 2.0
VPN Tunnels	50
Humidity	10% to 90% non-condensing
VPN Throughput	200 Mbps
Load Balancing	Yes
QoS	Yes
VPN Protocols	IPSec, PPTP, L2TP, SSL
Firewall	SPI
Power Supply	12V DC
Operating Temperature	0°C to 40°C
Storage Temperature	-25°C to 70°C
Wireless	Optional (with Vigor2925ac)
