Draytek Vigor2925 Series User Manual

Vigor2925 Series User’s Guide
406
when you find there are several subnets behind the remote
VPN router.
Translated Type – There are two types for you to choose.
 Whole Subnet
 Specific IP Address

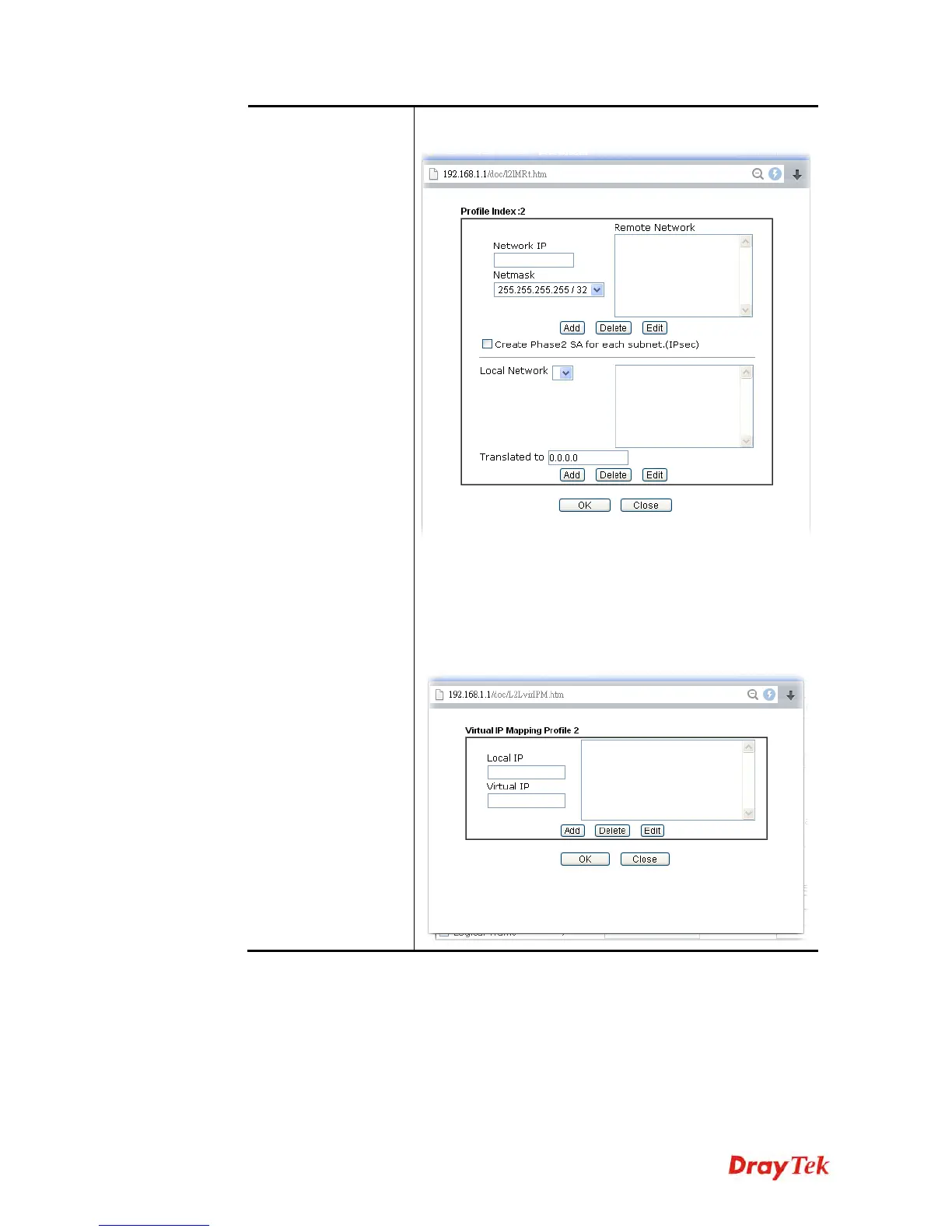

Virtual IP Mapping – A pop up dialog will appear for you
to specify the local IP address and the mapping virtual IP
address.
2. After finishing all the settings here, please click OK to save the configuration.

Draytek Vigor2925 Series Specifications

General

WAN Ports	2 x Gigabit Ethernet
LAN Ports	4 x Gigabit Ethernet
USB Ports	2 x USB 2.0
VPN Tunnels	50
Humidity	10% to 90% non-condensing
VPN Throughput	200 Mbps
Load Balancing	Yes
QoS	Yes
VPN Protocols	IPSec, PPTP, L2TP, SSL
Firewall	SPI
Power Supply	12V DC
Operating Temperature	0°C to 40°C
Storage Temperature	-25°C to 70°C
Wireless	Optional (with Vigor2925ac)
