Chapter3AdvancedOperation
Copyright © 2018 Duplo Corporation All Rights Reserved
3
Move the auxiliary paper feed ring.
Movetheauxiliarypaperfeedringonthe
paper folding line.
4
Tighten the loosened screws.
5
Remove the cross folding lever.
6
Close the top cover.

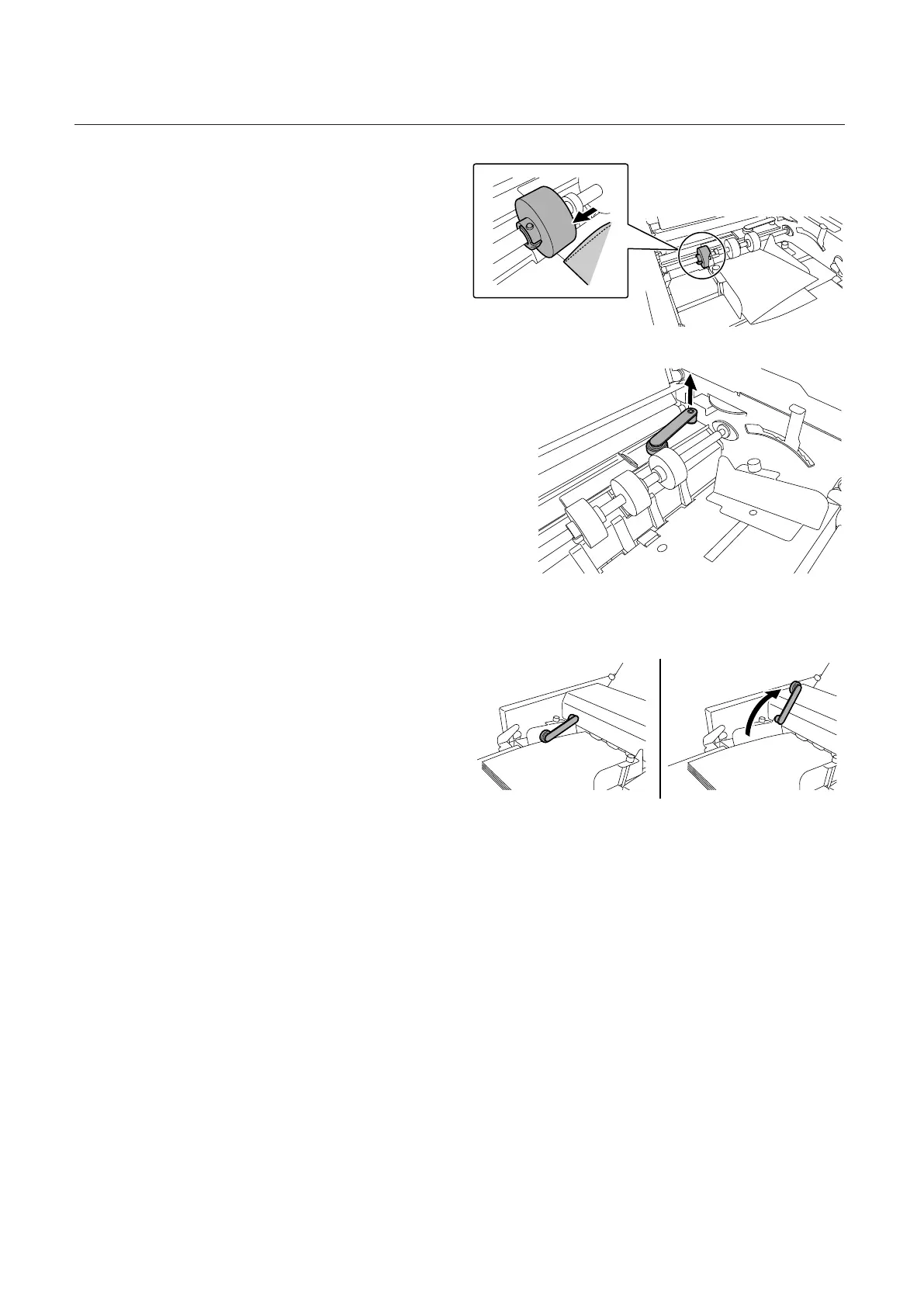

Attaching the cross folding lever
[a]
[b]
Attach the cross folding lever to the
pillar on the paper feed guide.
[a] Attach the cross folding lever so that the
weight roller on its tip comes to the fold
line.
[b] Whenrellingthepaper,liftthecross
foldingleverasshowninthegure.
Various adjustment lever positioning and test folding
Perform the operations in Chapter 2 “3-3. Aligning paper feed pressure adjustment lever
position” (p.22) to “3-6. Performing test folding” (p.24).
Folding operation
1
Perform the operations in Chapter 2 “3-7. Setting counter” (p.25) to “3-8. Performing
folding operation” (p.26).
2
After the operation is ended, store the cross folding lever at its original position.
3
Return the auxiliary paper feed ring to its original position.
