E Operation Omega 2

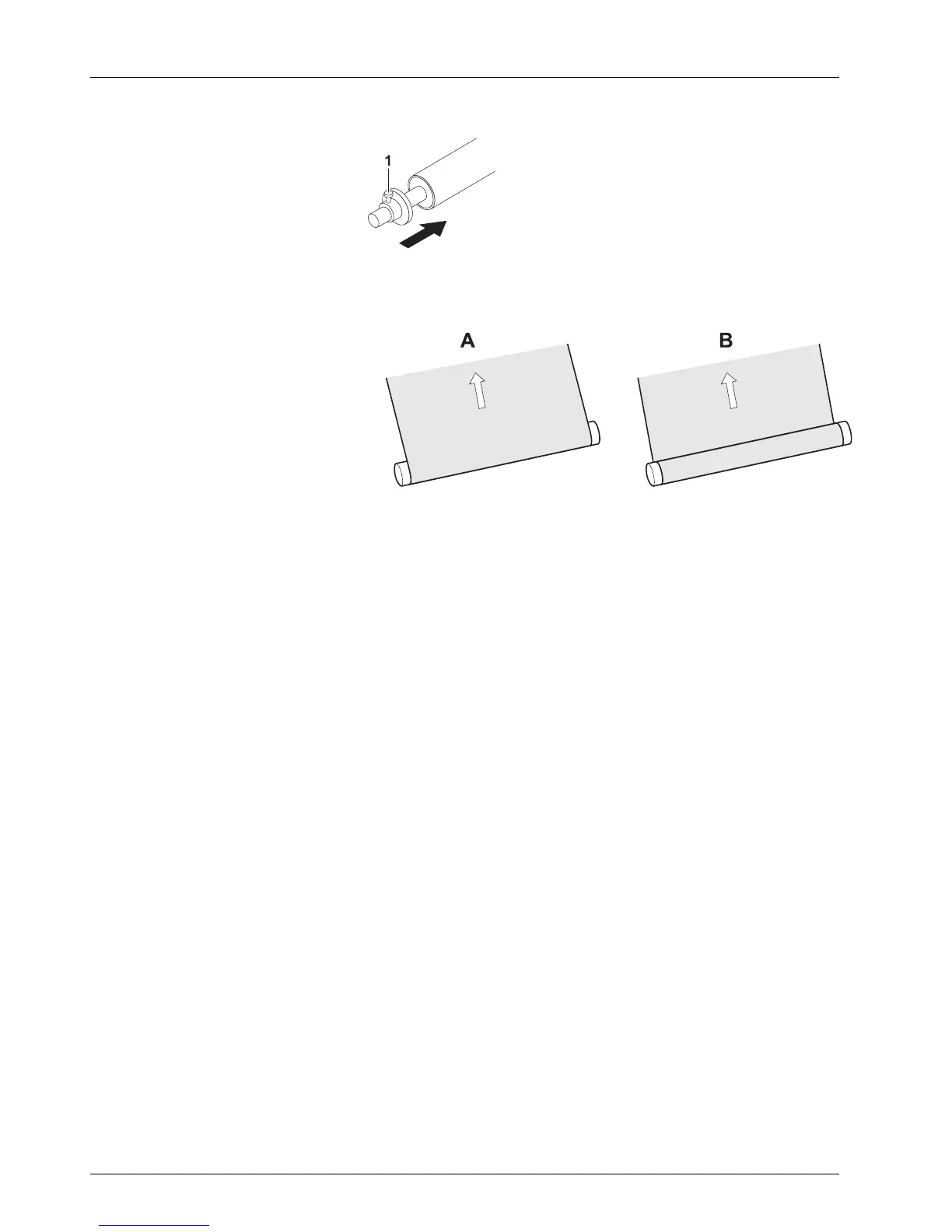

Fig. 15 Putting disks on roll ends
2. Put disks on both roll ends. Do not tighten set screws (1) yet, however.
Fig. 16 Roll rotation direction (variant A: printing on the outside,
variant B: printing on the inside)
3. Align roll depending on side to be printed.
