2 Installation
2.7 NET network
58 Control Relay easy800 11/11 MN04902001Z-EN www.eaton.com
Connecting Net stations
Proceed as follows in order to connect the easyNet stations:
• Plug in the easyNet connection cable into the easyNet socket 2 of the
first physical easyNet station.
• Plug in the easyNet connection cable into the easyNet socket 1 of the
last physical easyNet station.
• Fit the bus terminating resistor in socket 1 of the first station and in
socket 2 of the last station.
• Connect the power supply to all stations.

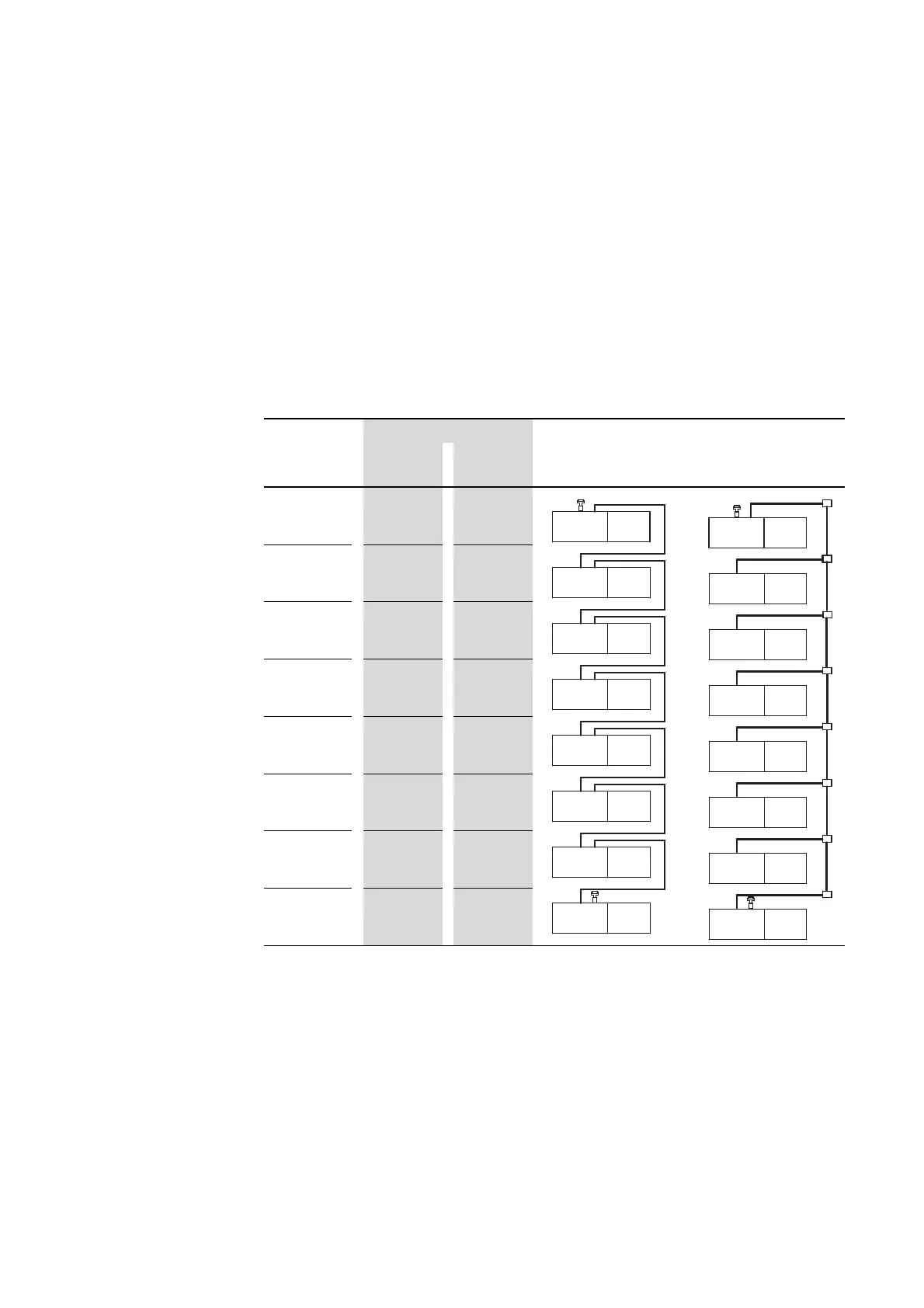

Addressing examples
• Example 1: Physical location is the same as the station number
• Example 2: Physical location is not the same as the station number
(apart from location 1 being the same as station 1).
Physical
location,
place
Station number "Loop through the unit" T connector and spur
line
Example 1 Example 2
1 1 1
2
2 3
3
3 4
4 4 8
5
5 7
6
6 2
7
7 6
8
8 5
￫
Physical location 1 is always assigned as station 1.
Station 1 is the only station which must be present.
