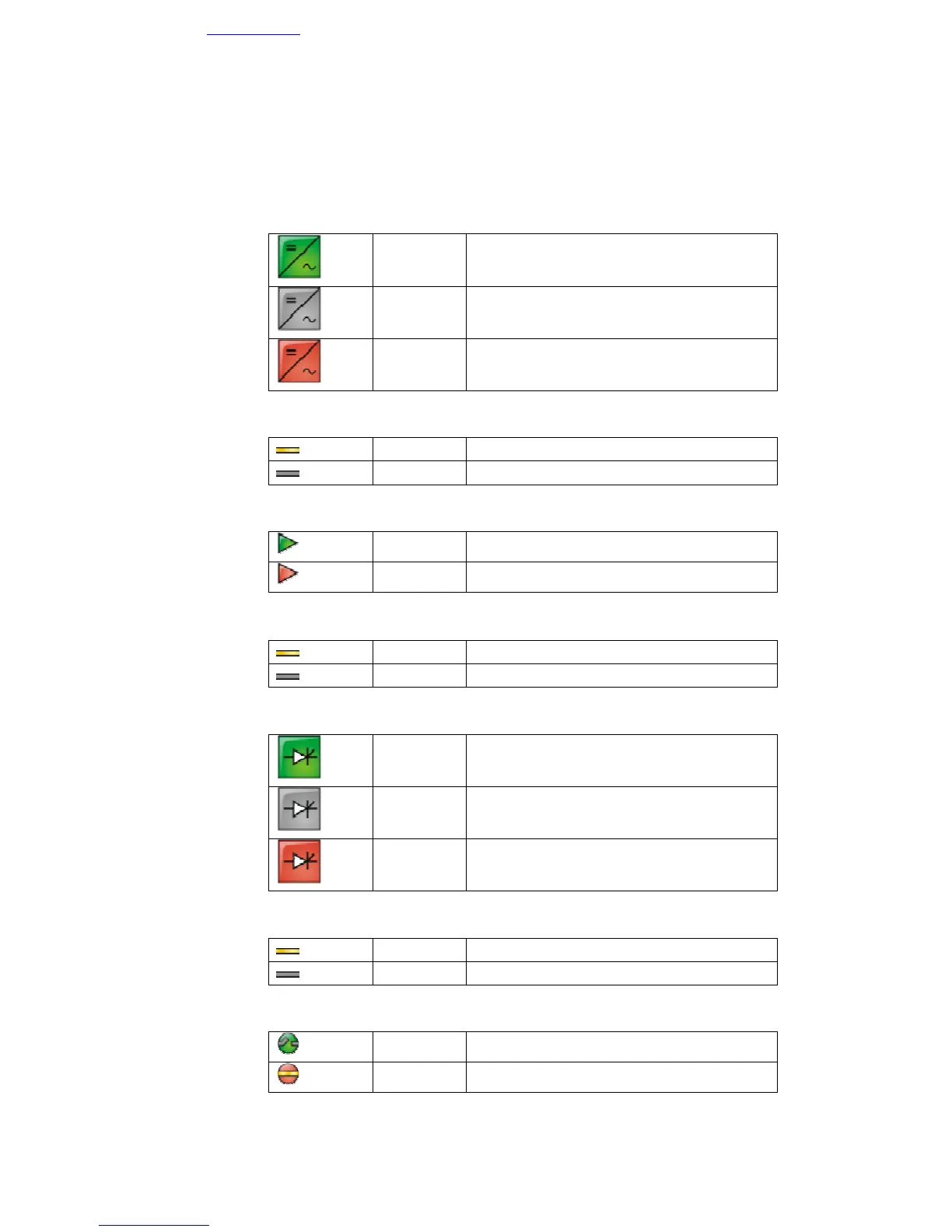

• DC to AC Converter :
Green Powered
Gray Not powered
Red Internal failure
• DC to AC Converter Output:
Yellow Energy flow present
Gray No energy flow
• AC Bypass Input:
Green In tolerances
Red Out of tolerances
•
• AC Automatic Bypass Flow :
Yellow Energy flow present
Gray No energy flow
• AC Automatic Bypass Status:
Green Powered
Gray Not powered
Red Internal failure
• AC Manual Bypass Flow:
Yellow Energy flow present
Gray No energy flow
• AC Manual Bypass Status:
Green / Gray Open
Red / Yellow Closed
