Network Management Card – User Manual 34003991XT_EN/JC Page 26/143

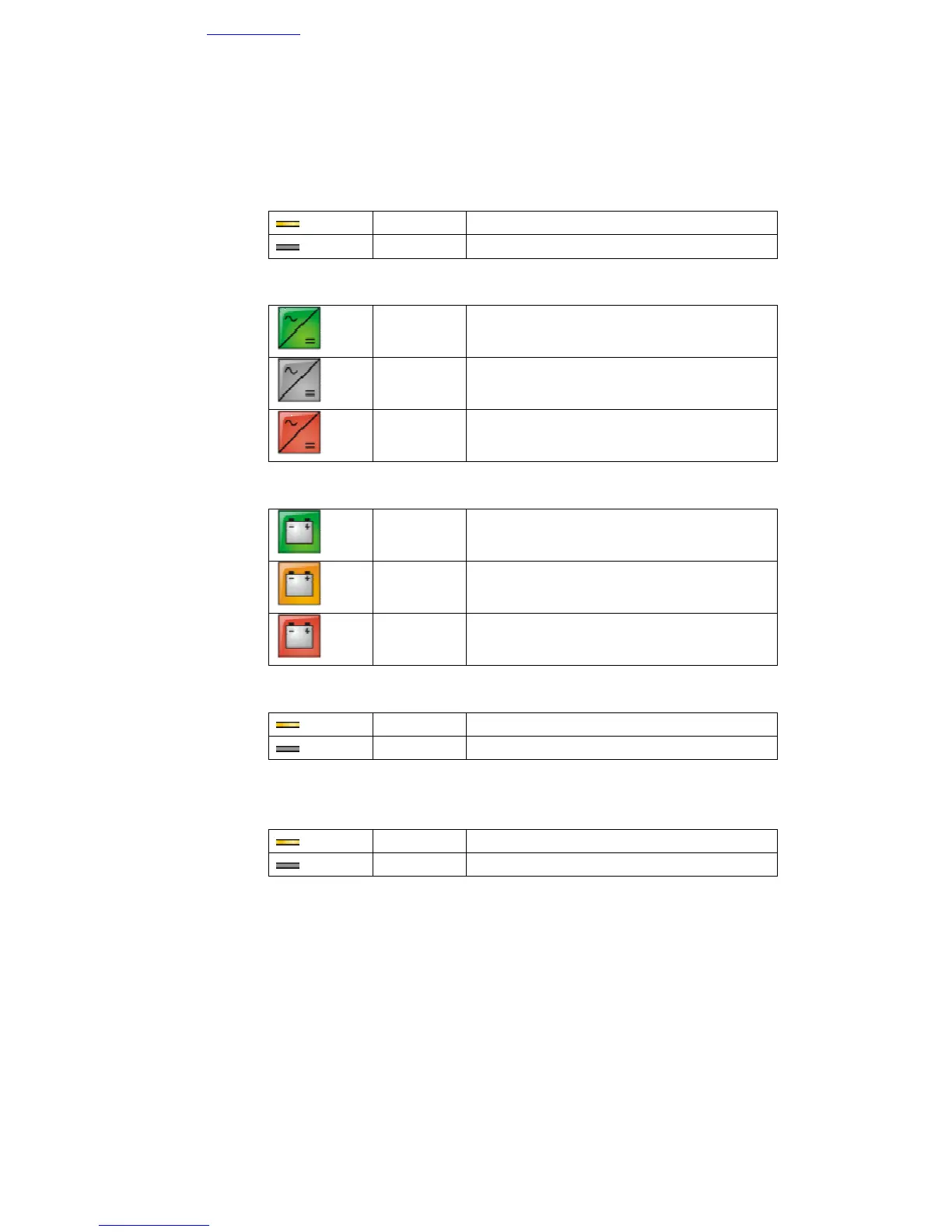

• AC Normal Flow:
Yellow AC to DC converter powered by AC Normal
Gray AC to DC converter not powered by AC Normal
• AC to DC Converter:
Green Powered
Gray Not powered
Red Internal failure
• Battery:
Green Remaining capacity > 50%
Orange Remaining capacity < 50%
Red Low battery when UPS is on Battery
Battery to be checked (battery test result)
• Battery Output Flow:
Yellow DC to AC converter powered by battery
Gray DC to AC converter not powered by battery
• DC to AC Converter Input flow:
Yellow Energy flow present
Gray No energy flow
