EDAN X8 - Nurse Call (Optional); USB Interfaces

Patient Monitor User Manual Product Specification
- 170 -
Minimum Required R-wave
Amplitude
0.3 mV
Pulse Width
100 ms±10%
Limited Current
15 mA rating
Rising and Falling Time
< 1 ms
Interface Type
PS2 connector
A.13.3 Nurse Call (Optional)
Drive Mode
Voltage output
Power Supply
≤ 12.6 VDC, 200 mA Max.
Interface Signal
12 V power supply and PWM waveform
Interface Type
PS2 connector

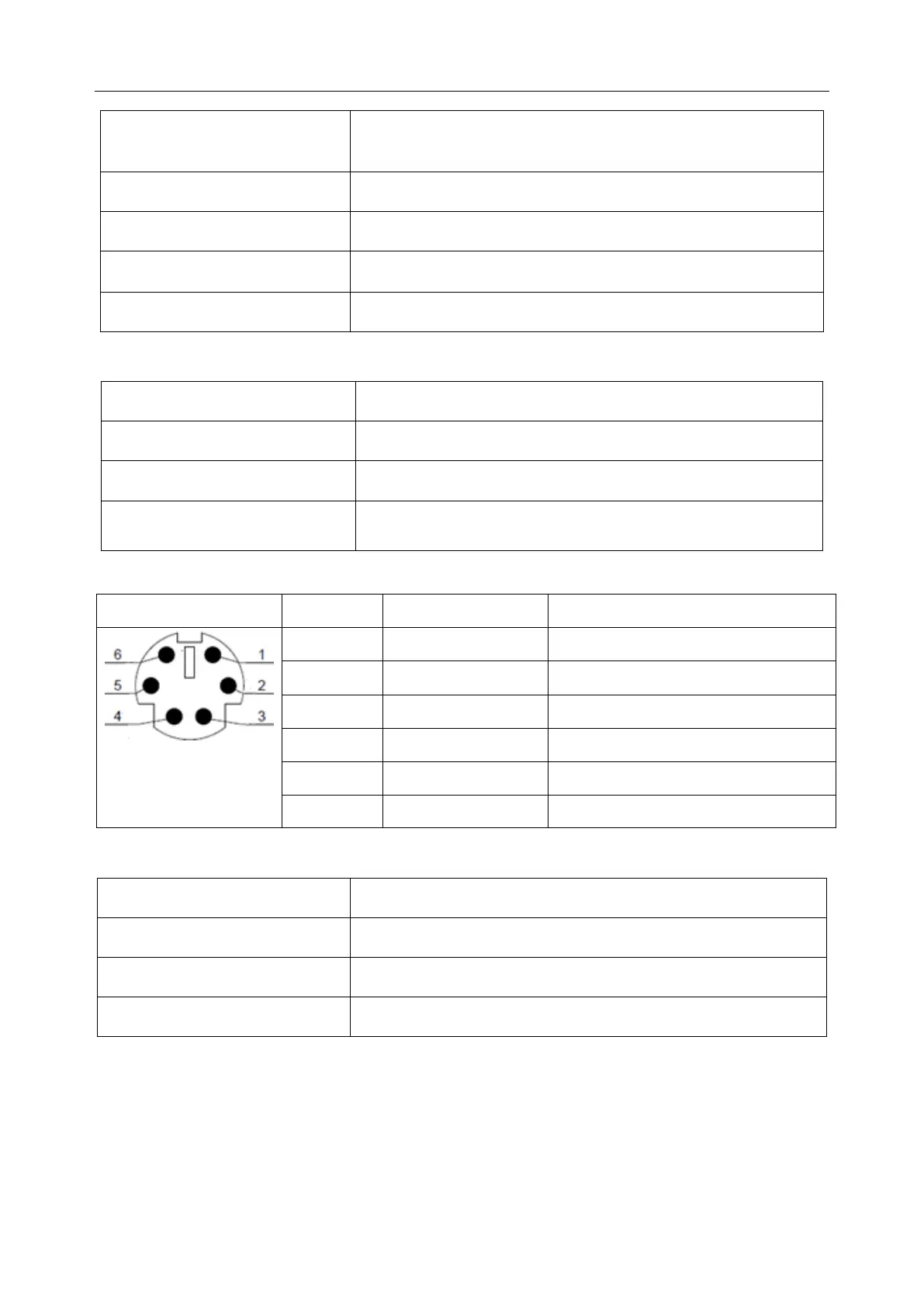

PS2 connector Definition for Analog Output/Defibrillator Synchronization/Nurse Call
PIN.NO.
Signal name
Signal Description
1
ANALOG_OUT
Analog out signal
2
GND
Ground
3
SYS_OUT
Defibrillator Synchronization signal
4
+12V
Nurse call power
5
GND
Ground
6
NURSE_OUT
Nurse call control signal
A.13.4 USB Interfaces
Number of USB Interfaces
Standard: 2
Drive Mode
HOST interface, USB1.0/2.0 protocol
Power Supply
5 VDC±5%, 500 mA Max.
Interface Type
USB A-type port
