C
HAPTER
6
| VLAN Configuration
IEEE 802.1Q VLANs
– 200 –
To modify the configuration settings for VLAN groups:
1. Click VLAN, Static.
2. Select Modify from the Action list.
3. Select the identifier of a configured VLAN.
4. Modify the VLAN name or operational status as required.
5. Click Apply.

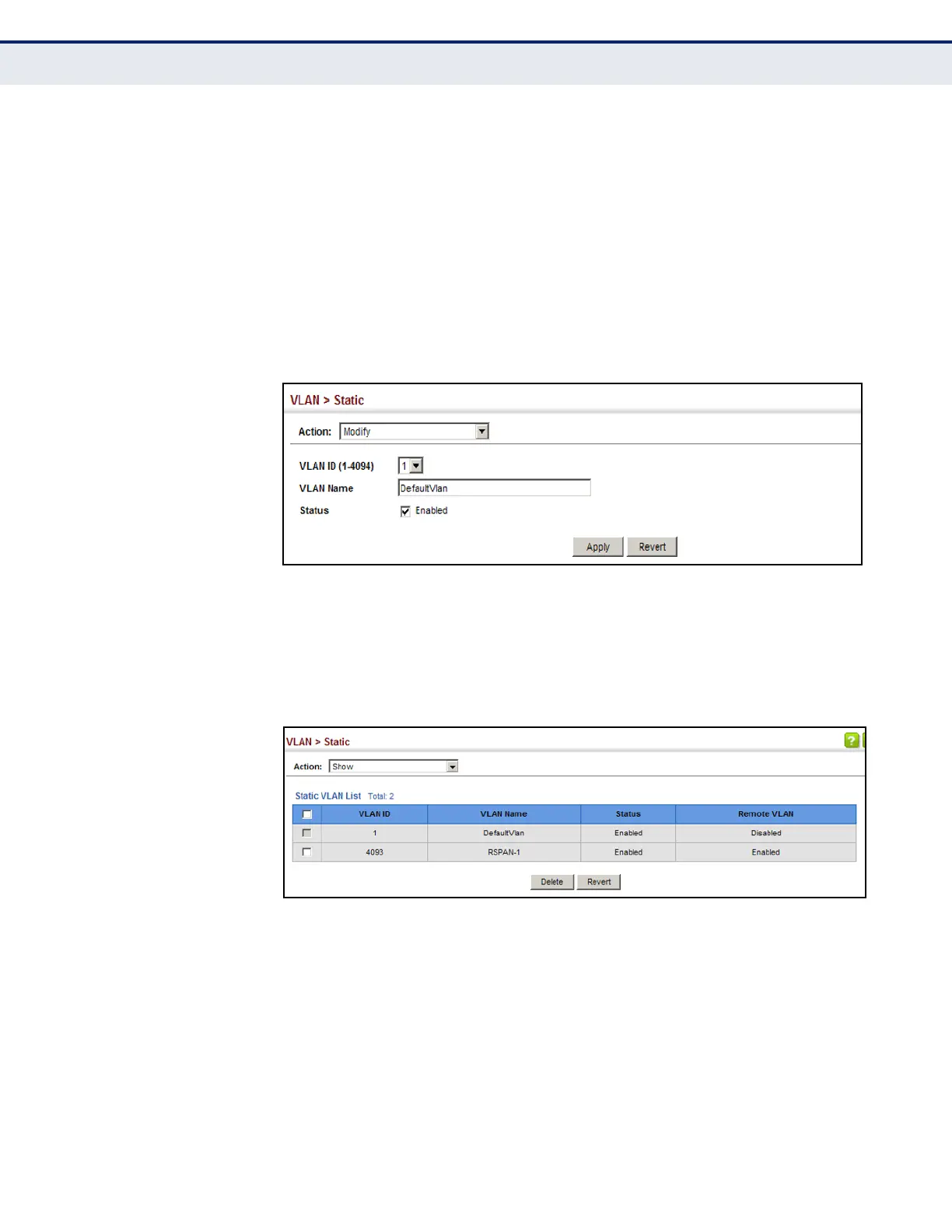

Figure 69: Modifying Settings for Static VLANs
To show the configuration settings for VLAN groups:
1. Click VLAN, Static.
2. Select Show from the Action list.
Figure 70: Showing Static VLANs
ADDING STATIC
MEMBERS TO VLANS
Use the VLAN > Static page to configure port members for the selected
VLAN index, interface, or a range of interfaces. Use the menus for editing
port members to configure the VLAN behavior for specific interfaces,
including the mode of operation (Hybrid or 1Q Trunk), the default VLAN
identifier (PVID), accepted frame types, and ingress filtering. Assign ports
as tagged if they are connected to 802.1Q VLAN compliant devices, or
untagged they are not connected to any VLAN-aware devices. Or configure
a port as forbidden to prevent the switch from automatically adding it to a
VLAN via the GVRP protocol.
