Edge-Core ECS3510-28T User Manual

C HAPTER 13 | Security Measures
Access Control Lists
– 369 –
3. Select Add Mirror from the Action list.
4. Select a port.
5. Select the name of an ACL from the ACL list.
6. Click Apply.

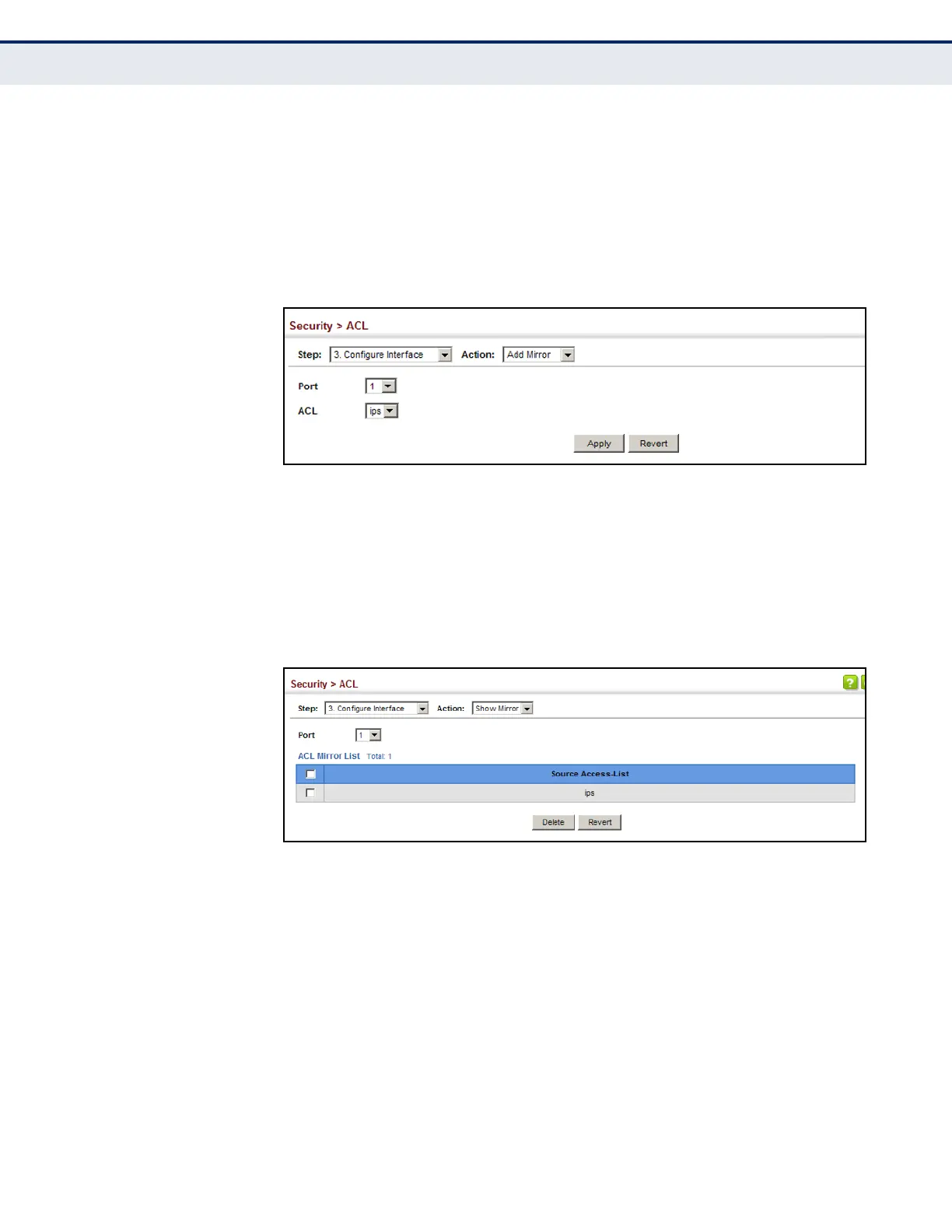

Figure 199: Configuring ACL Mirroring
To show the ACLs to be mirrored:
1. Select Configure Interface from the Step list.
2. Select Show Mirror from the Action list.
3. Select a port.
Figure 200: Showing the VLANs to Mirror
