C
HAPTER
14
| Basic Administration Protocols
OAM Configuration
– 552 –
◆ Clear – Clears statistical counters for the selected ports.
◆ OAMPDU – Message types transmitted and received by the OAM
protocol, including Information OAMPDUs, unique Event OAMPDUs,
Loopback Control OAMPDUs, and Organization Specific OAMPDUs.
WEB INTERFACE
To display statistics for OAM messages:
1. Click Administration, OAM, Counters.

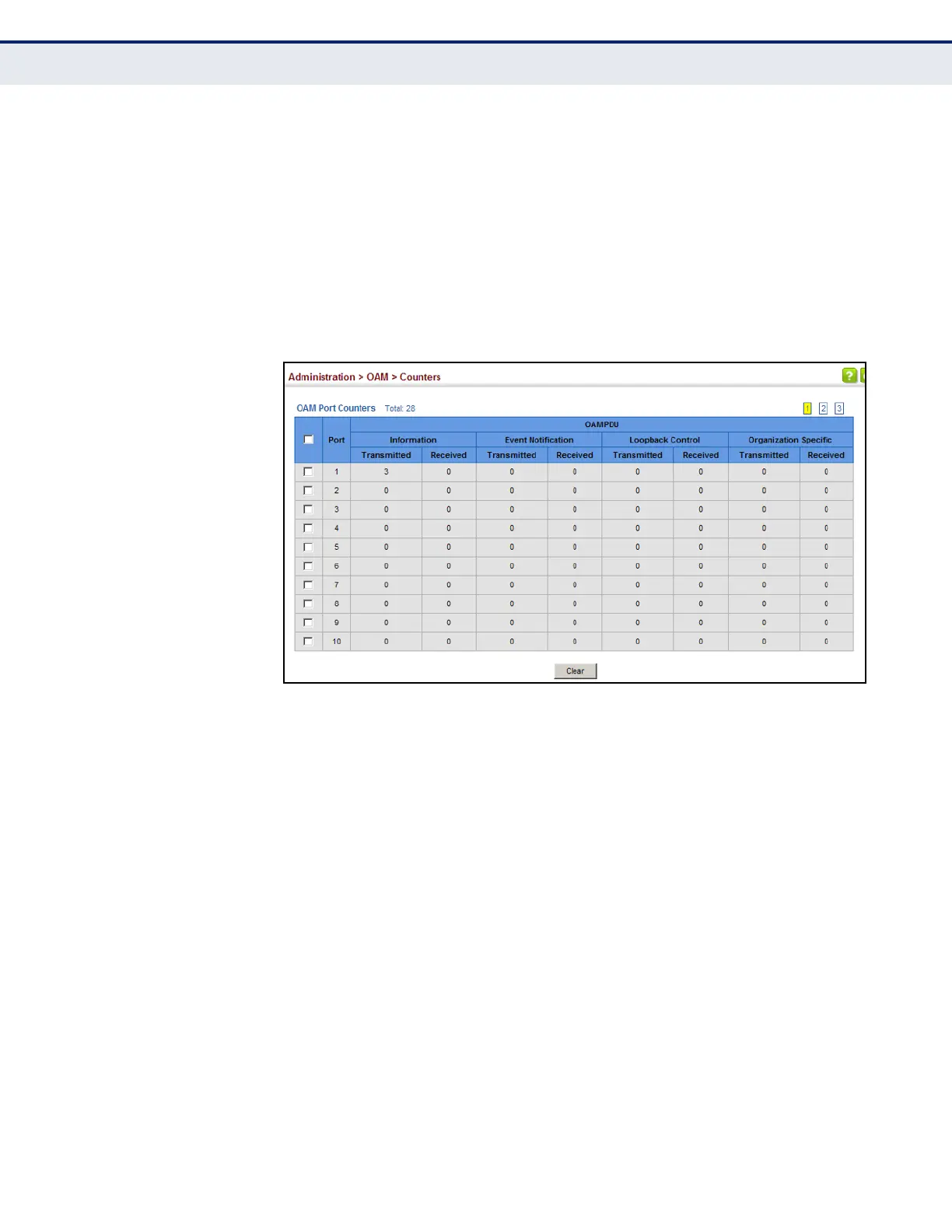

Figure 317: Displaying Statistics for OAM Messages
DISPLAYING THE
OAM EVENT LOG
Use the Administration > OAM > Event Log page to display link events for
the selected port.
CLI REFERENCES
â—† "show efm oam event-log interface" on page 1361
COMMAND USAGE
â—† When a link event occurs, no matter whether the location is local or
remote, this information is entered in OAM event log.
â—† When the log system becomes full, older events are automatically
deleted to make room for new entries.
â—† The time of locally generated events can be accurately retrieved from
the sysUpTime variable. For remotely generated events, the time of an
event is indicated by the reception of an Event Notification OAMPDU
from the peer.
