C
HAPTER
17
| Multicast Filtering
Multicast VLAN Registration for IPv6
– 661 –
WEB INTERFACE
To configure settings for an MVR6 domain:
1. Click Multicast, MVR6.
2. Select Configure Domain from the Step list.
3. Select a domain from the scroll-down list.
4. Enable MVR6 for the selected domain, select the MVR6 VLAN, set the
forwarding priority to be assigned to all ingress multicast traffic, and
set the source IP address for all control packets sent upstream as
required.
5. Click Apply.

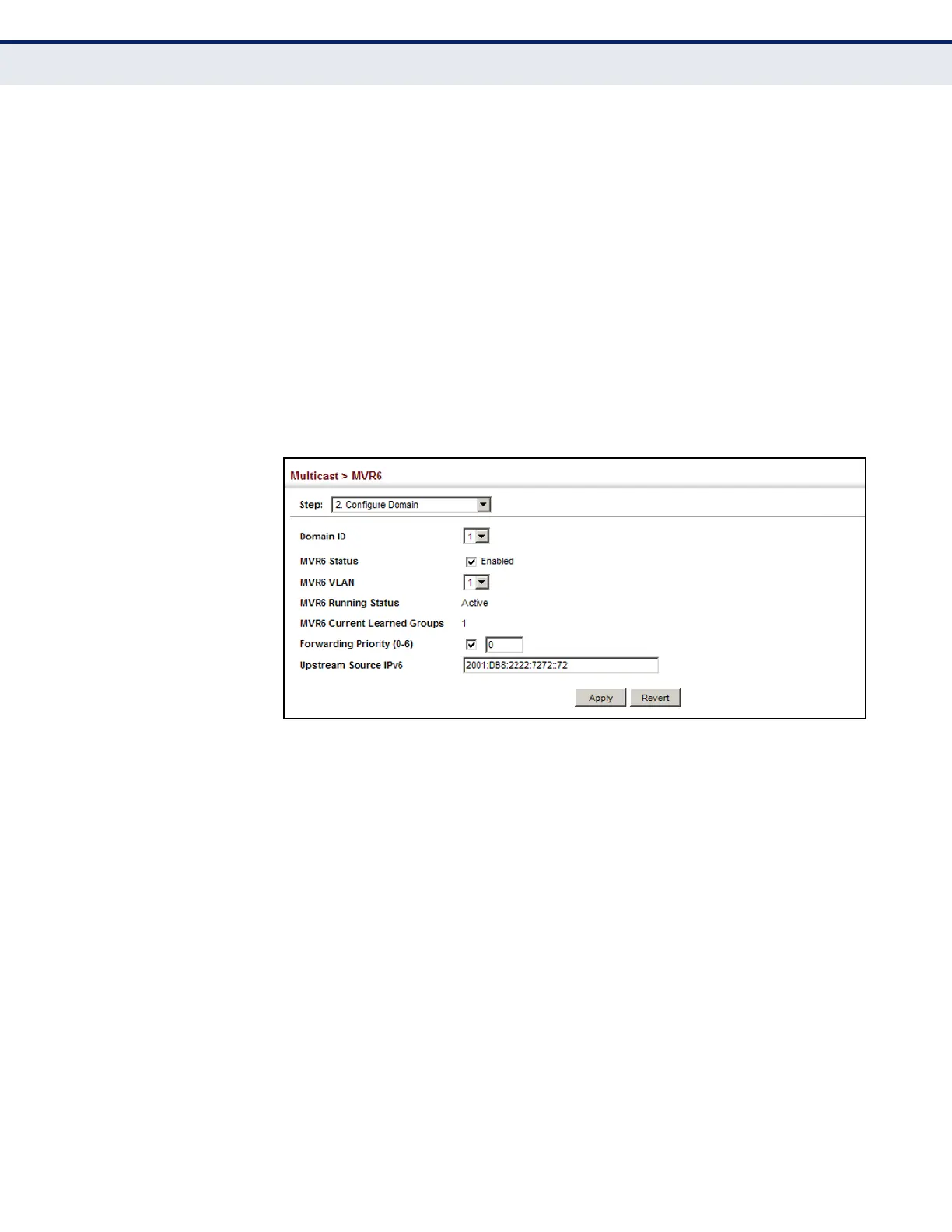

Figure 398: Configuring Domain Settings for MVR6
CONFIGURING MVR6
G
ROUP ADDRESS
PROFILES
Use the Multicast > MVR6 (Configure Profile and Associate Profile) pages to
assign the multicast group address for required services to one or more
MVR6 domains.
CLI REFERENCES
◆ "MVR for IPv6" on page 1268
COMMAND USAGE
◆ Use the Configure Profile page to statically configure all multicast group
addresses that will join the MVR6 VLAN. Any multicast data associated
with an MVR6 group is sent from all source ports to all receiver ports
that have registered to receive data from that multicast group.
◆ All IPv6 addresses must be according to RFC 2373 “IPv6 Addressing
Architecture,” using 8 colon-separated 16-bit hexadecimal values. One
double colon may be used in the address to indicate the appropriate
number of zeros required to fill the undefined fields. (Note that the IP
address ff02::X is reserved.)
