C
HAPTER
13
| Security Measures
Access Control Lists
– 359 –

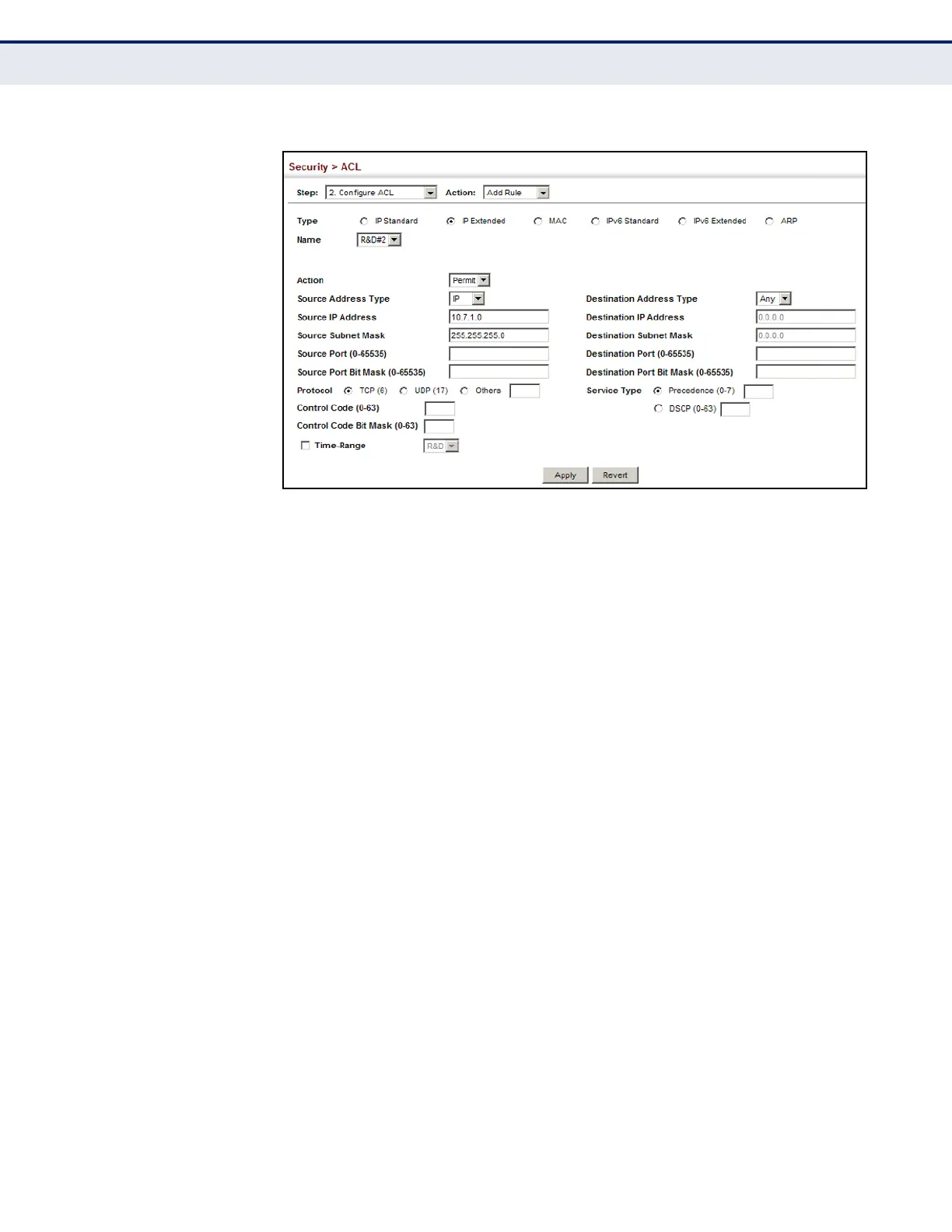

Figure 193: Configuring an Extended IPv4 ACL
CONFIGURING A
STANDARD IPV6 ACL
Use the Security > ACL (Configure ACL - Add Rule - IPv6 Standard) page to
configure a Standard IPv6ACL.
CLI REFERENCES
◆ "permit, deny (Standard IPv6 ACL)" on page 951
◆ "show ipv6 access-list" on page 955
◆ "Time Range" on page 762
PARAMETERS
These parameters are displayed in the web interface:
◆ Type – Selects the type of ACLs to show in the Name list.
◆ Name – Shows the names of ACLs matching the selected type.
◆ Action – An ACL can contain any combination of permit or deny rules.
◆ Source Address Type – Specifies the source IP address. Use “Any” to
include all possible addresses, “Host” to specify a specific host address
in the Address field, or “IPv6-Prefix” to specify a range of addresses.
(Options: Any, Host, IPv6-Prefix; Default: Any)
◆ Source IPv6 Address – An IPv6 source address or network class. The
address must be formatted according to RFC 2373 “IPv6 Addressing
Architecture,” using 8 colon-separated 16-bit hexadecimal values. One
double colon may be used in the address to indicate the appropriate
number of zeros required to fill the undefined fields.
◆ Source Prefix-Length – A decimal value indicating how many
contiguous bits (from the left) of the address comprise the prefix (i.e.,
the network portion of the address). (Range: 0-128 bits)
