| VLAN Configuration
Configuring IP Subnet VLANs
– 220 –

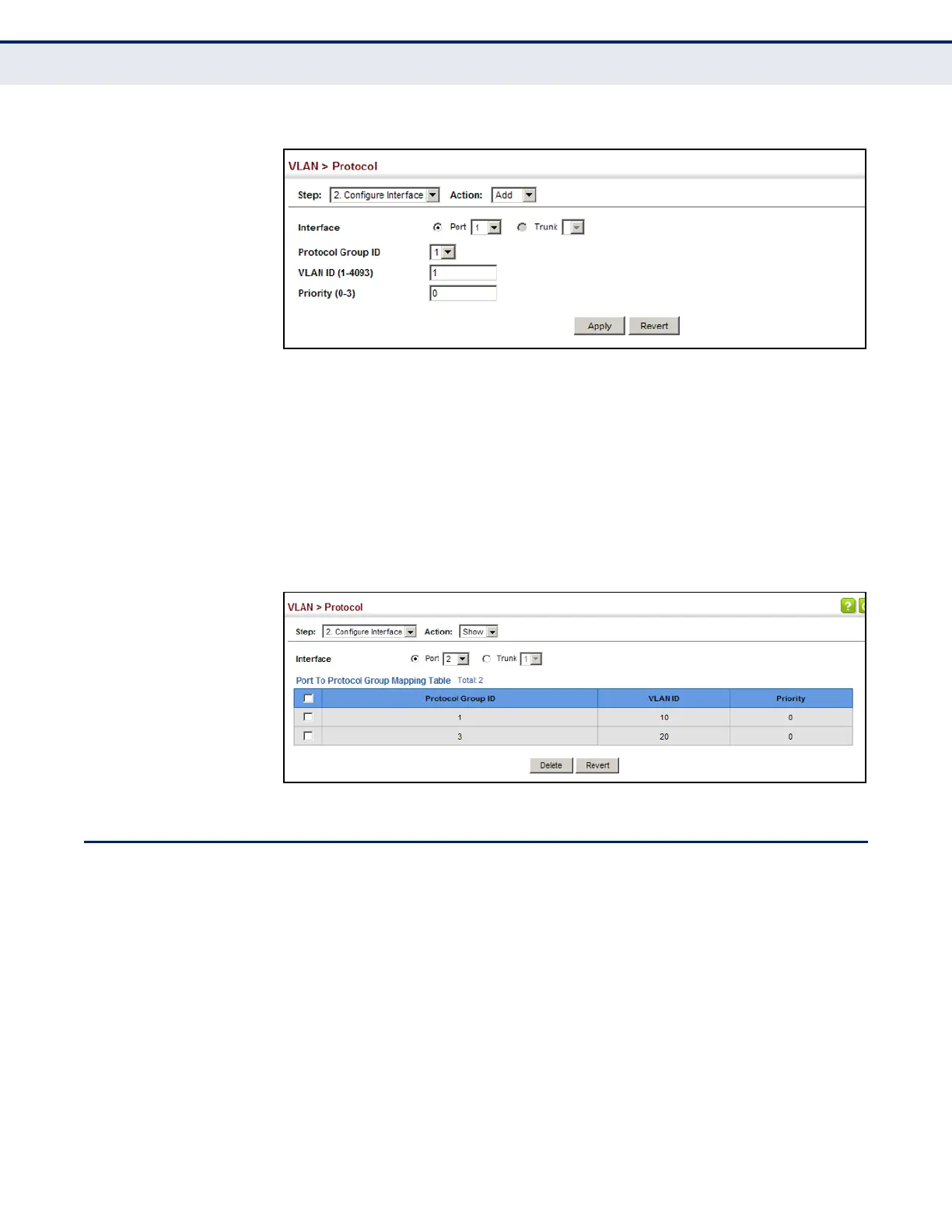

Figure 85: Assigning Interfaces to Protocol VLANs
To show the protocol groups mapped to a port or trunk:
1. Click VLAN, Protocol.
2. Select Configure Interface from the Step list.
3. Select Show from the Action list.
4. Select a port or trunk.
Figure 86: Showing the Interface to Protocol Group Mapping
CONFIGURING IP SUBNET VLANS
Use the VLAN > IP Subnet page to configure IP subnet-based VLANs.
When using port-based classification, all untagged frames received by a
port are classified as belonging to the VLAN whose VID (PVID) is
associated with that port.
When IP subnet-based VLAN classification is enabled, the source address of
untagged ingress frames are checked against the IP subnet-to-VLAN
mapping table. If an entry is found for that subnet, these frames are
assigned to the VLAN indicated in the entry. If no IP subnet is matched, the
untagged frames are classified as belonging to the receiving port’s VLAN ID
(PVID).
