C
HAPTER
17
| Multicast Filtering
Multicast VLAN Registration for IPv4
– 645 –
WEB INTERFACE
To configure settings for an MVR domain:
1. Click Multicast, MVR.
2. Select Configure Domain from the Step list.
3. Select a domain from the scroll-down list.
4. Enable MVR for the selected domain, select the MVR VLAN, set the
forwarding priority to be assigned to all ingress multicast traffic, and
set the source IP address for all control packets sent upstream as
required.
5. Click Apply.

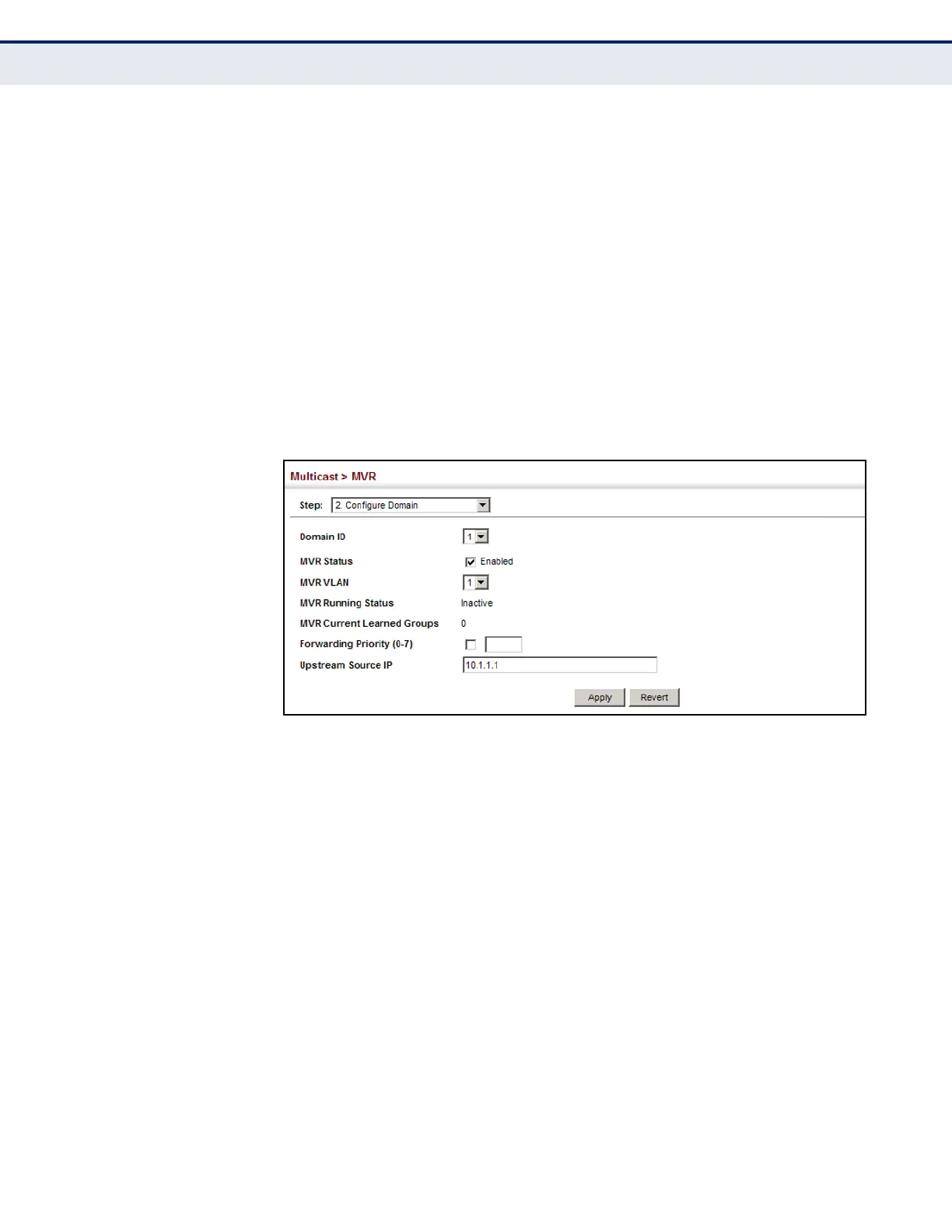

Figure 385: Configuring Domain Settings for MVR
CONFIGURING MVR
GROUP ADDRESS
PROFILES
Use the Multicast > MVR (Configure Profile and Associate Profile) pages to
assign the multicast group address for required services to one or more
MVR domains.
CLI REFERENCES
â—† "MVR for IPv4" on page 1246
COMMAND USAGE
â—† Use the Configure Profile page to statically configure all multicast group
addresses that will join the MVR VLAN. Any multicast data associated
with an MVR group is sent from all source ports to all receiver ports that
have registered to receive data from that multicast group.
â—† The IP address range from 224.0.0.0 to 239.255.255.255 is used for
multicast streams. MVR group addresses cannot fall within the reserved
IP multicast address range of 224.0.0.x.
