| VLAN Configuration
Configuring MAC-based VLANs
– 223 –
â—† When MAC-based, IP subnet-based, and protocol-based VLANs are
supported concurrently, priority is applied in this sequence, and then
port-based VLANs last.
PARAMETERS
These parameters are displayed:
◆ MAC Address – A source MAC address which is to be mapped to a
specific VLAN. The MAC address must be specified in the format xx-xx-
xx-xx-xx-xx.
◆ VLAN – VLAN to which ingress traffic matching the specified source
MAC address is forwarded. (Range: 1-4094)
◆ Priority – The priority assigned to untagged ingress traffic.
(Range: 0-7, where 7 is the highest priority; Default: 0)
WEB INTERFACE
To map a MAC address to a VLAN:
1. Click VLAN, MAC-Based.
2. Select Add from the Action list.
3. Enter an address in the MAC Address field.
4. Enter an identifier in the VLAN field. Note that the specified VLAN need
not already be configured.
5. Enter a value to assign to untagged frames in the Priority field.
6. Click Apply.

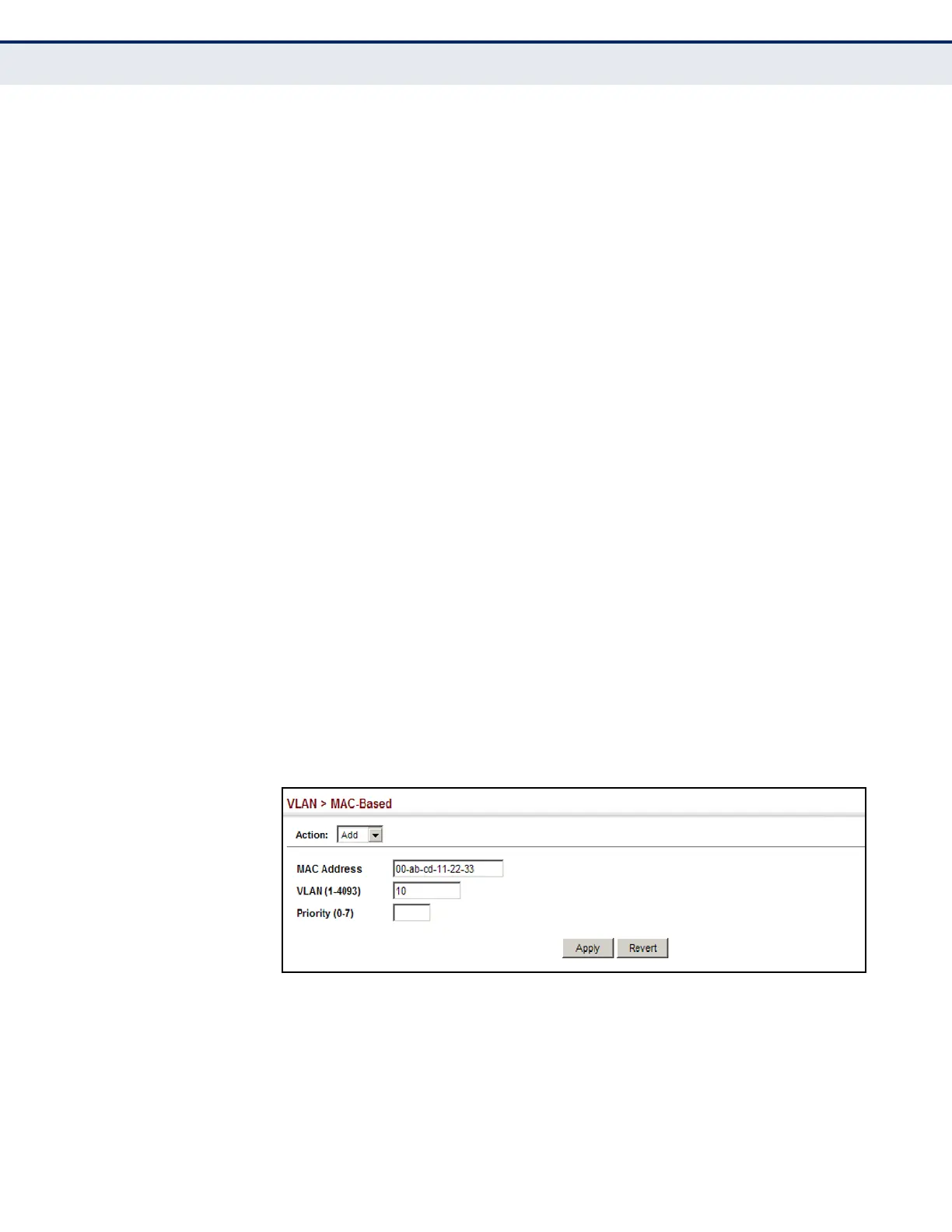

Figure 89: Configuring MAC-Based VLANs
To show the MAC addresses mapped to a VLAN:
1. Click VLAN, MAC-Based.
2. Select Show from the Action list.
