| VLAN Configuration
Configuring VLAN Mirroring
– 225 –
PARAMETERS
These parameters are displayed:
◆ Source VLAN – A VLAN whose traffic will be monitored.
(Range: 1-4094)
◆ Target Port – The destination port that receives the mirrored traffic
from the source VLAN. (Range: 1-28/52)
WEB INTERFACE
To configure VLAN mirroring:
1. Click VLAN, Mirror.
2. Select Add from the Action list.
3. Select the source VLAN, and select a target port.
4. Click Apply.

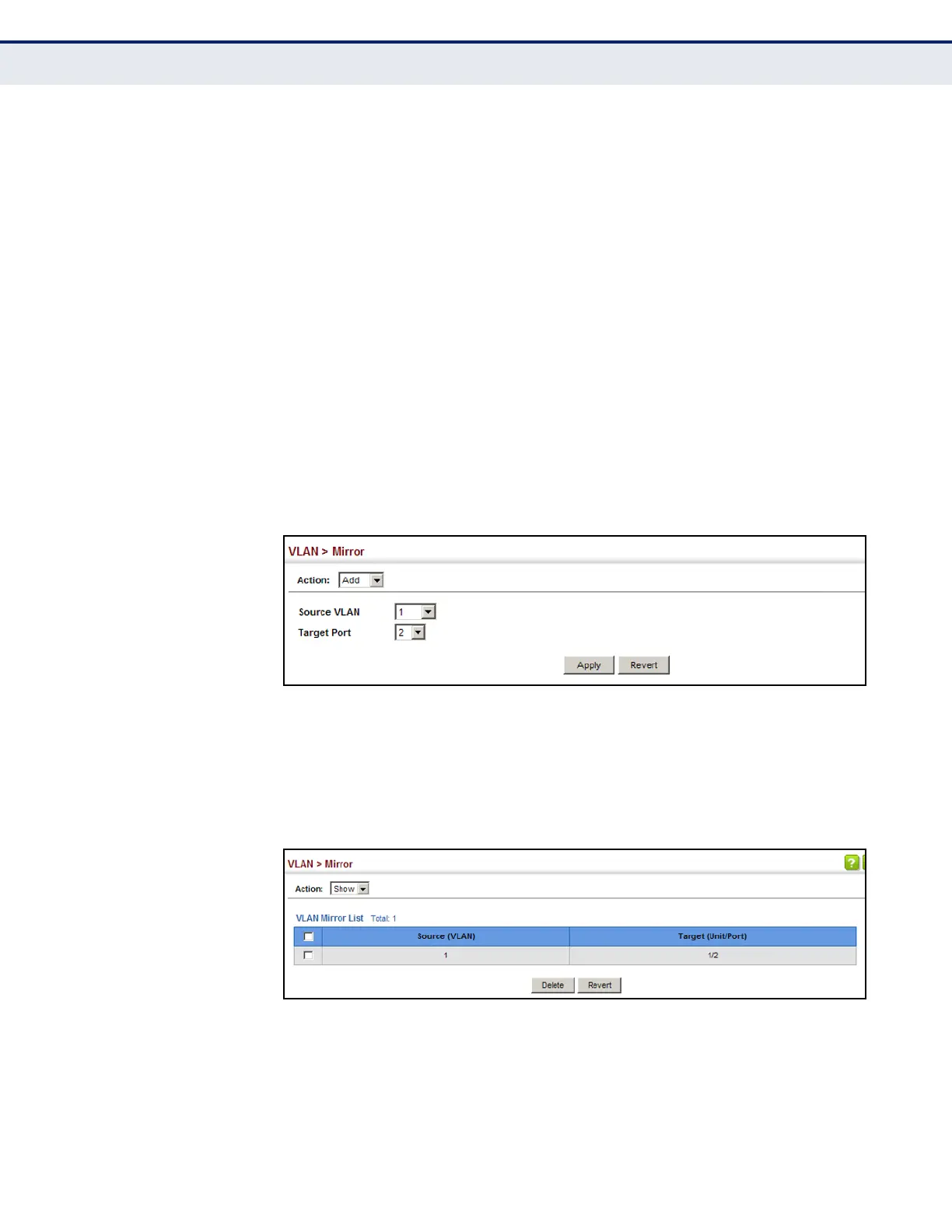

Figure 91: Configuring VLAN Mirroring
To show the VLANs to be mirrored:
1. Click VLAN, Mirror.
2. Select Show from the Action list.
Figure 92: Showing the VLANs to Mirror
