Access Control Lists
– 354 –
PARAMETERS
These parameters are displayed:
◆ ACL Name – Name of the ACL. (Maximum length: 32 characters)
◆ Type – The following filter modes are supported:
■
IP Standard: IPv4 ACL mode filters packets based on the source
IPv4 address.
■
IP Extended: IPv4 ACL mode filters packets based on the source
or destination IPv4 address, as well as the protocol type and
protocol port number. If the “TCP” protocol is specified, then you
can also filter packets based on the TCP control code.
■
IPv6 Standard: IPv6 ACL mode filters packets based on the source
IPv6 address.
■
IPv6 Extended: IPv6 ACL mode filters packets based on the
source or destination IP address, as well as DSCP, and the next
header type.
■
MAC – MAC ACL mode filters packets based on the source or
destination MAC address and the Ethernet frame type (RFC 1060).
■
ARP – ARP ACL specifies static IP-to-MAC address bindings used for
ARP inspection (see "ARP Inspection" on page 371).
WEB INTERFACE
To configure the name and type of an ACL:
1. Click Security, ACL.
2. Select Configure ACL from the Step list.
3. Select Add from the Action list.
4. Fill in the ACL Name field, and select the ACL type.
5. Click Apply.

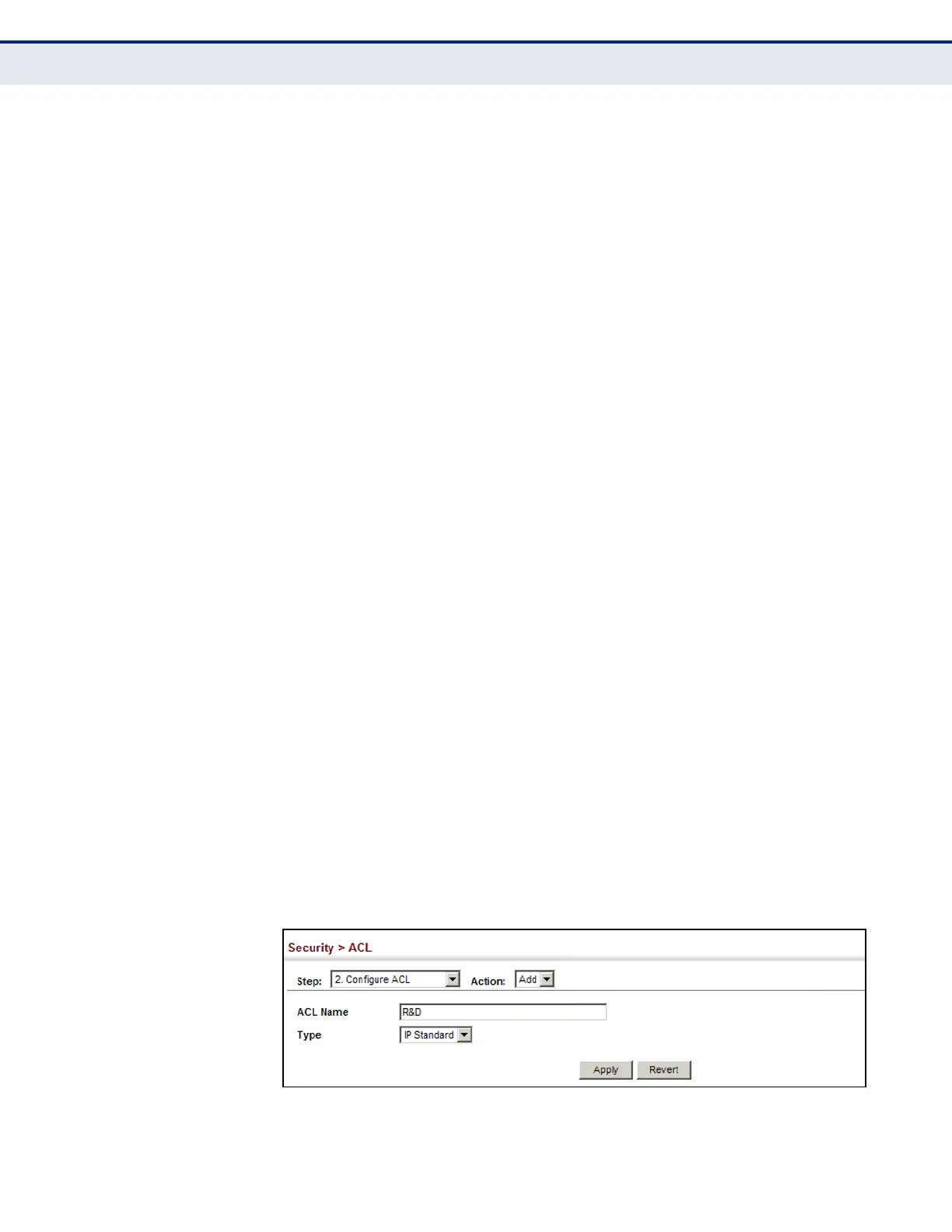

Figure 190: Creating an ACL
