Edge-Core ECS3510-28T

C HAPTER 14 | Basic Administration Protocols
Simple Network Management Protocol
– 456 –
WEB INTERFACE
To configure an SNMP group:
1. Click Administration, SNMP.
2. Select Configure Group from the Step list.
3. Select Add from the Action list.
4. Enter a group name, assign a security model and level, and then select
read, write, and notify views.
5. Click Apply

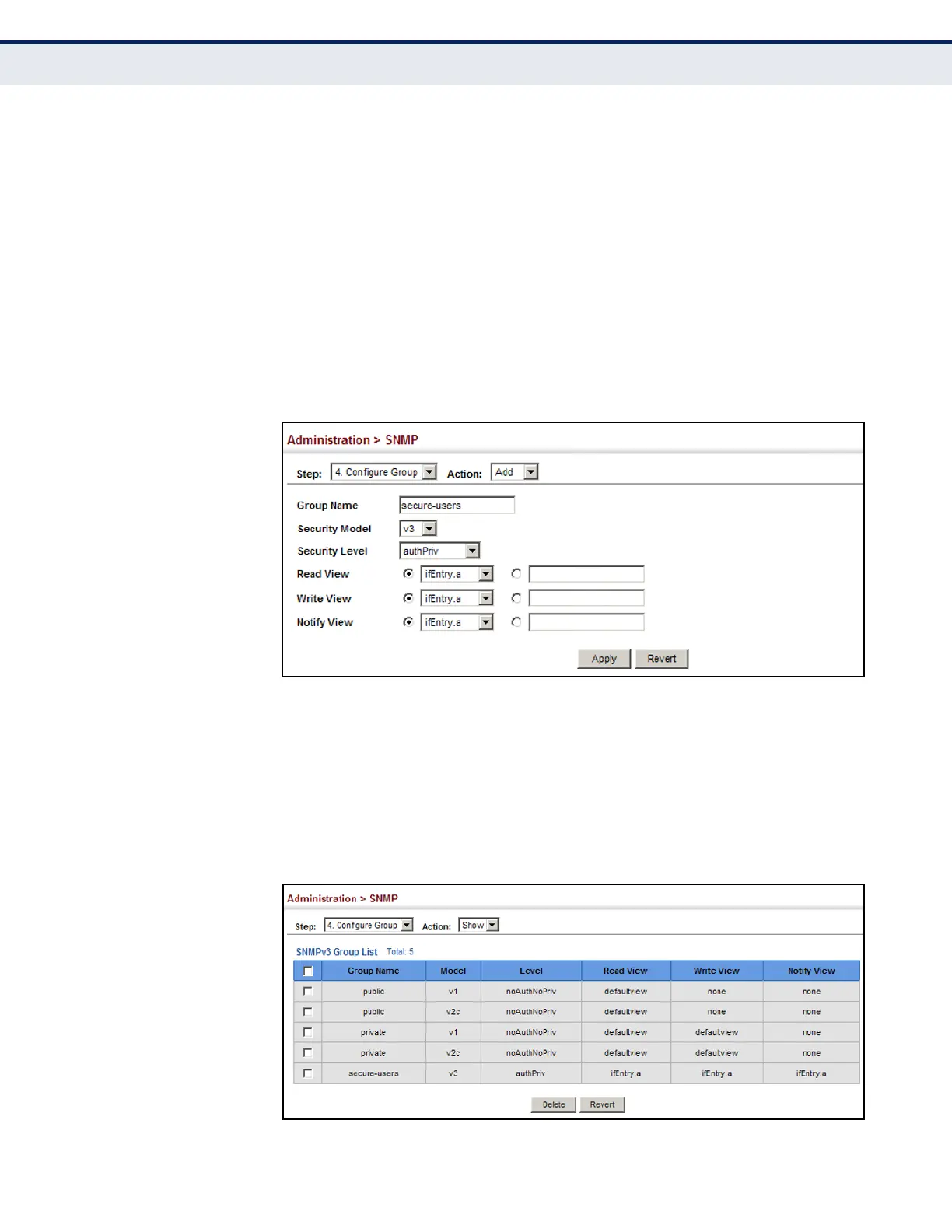

Figure 252: Creating an SNMP Group
To show SNMP groups:
1. Click Administration, SNMP.
2. Select Configure Group from the Step list.
3. Select Show from the Action list.
Figure 253: Showing SNMP Groups
