C
HAPTER
14
| Basic Administration Protocols
Remote Monitoring
– 471 –
◆ Response PDUs – The total number of SNMP Get-Response PDUs
which have been accepted and processed by, or generated by, the
SNMP protocol entity.
◆ Trap PDUs – The total number of SNMP Trap PDUs which have been
accepted and processed by, or generated by, the SNMP protocol entity.
WEB INTERFACE
To show SNMP statistics:
1. Click Administration, SNMP.
2. Select Show Statistics from the Step list.

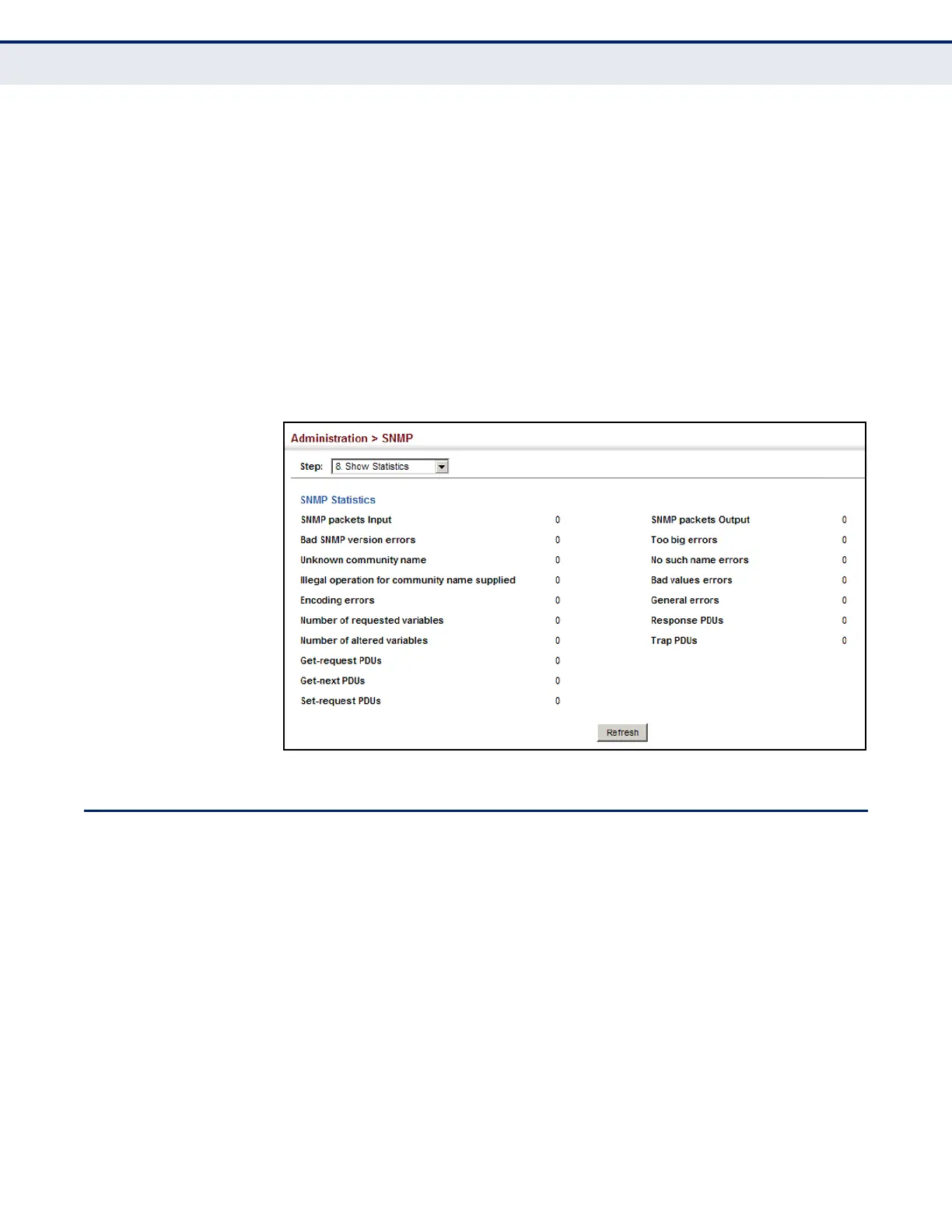

Figure 266: Showing SNMP Statistics
REMOTE MONITORING
Remote Monitoring allows a remote device to collect information or
respond to specified events on an independent basis. This switch is an
RMON-capable device which can independently perform a wide range of
tasks, significantly reducing network management traffic. It can
continuously run diagnostics and log information on network performance.
If an event is triggered, it can automatically notify the network
administrator of a failure and provide historical information about the
event. If it cannot connect to the management agent, it will continue to
perform any specified tasks and pass data back to the management station
the next time it is contacted.
The switch supports mini-RMON, which consists of the Statistics, History,
Event and Alarm groups. When RMON is enabled, the system gradually
builds up information about its physical interfaces, storing this information
in the relevant RMON database group. A management agent then
