C
HAPTER
14
| Basic Administration Protocols
Connectivity Fault Management
– 527 –
◆ AIS Transmit Level – Configure the AIS maintenance level in an MA.
(Range: 0-7; Default is 0)
AIS Level must follow this rule: AIS Level >= Domain Level
◆ AIS Suppress Alarm – Enables/disables suppression of the AIS.
(Default: Disabled)
WEB INTERFACE
To create a maintenance association:
1. Click Administration, CFM.
2. Select Configure MA from the Step list.
3. Select Add from the Action list.
4. Select an entry from the MD Index list.
5. Specify the MAs assigned to each domain, the VLAN through which CFM
messages are passed, and the manner in which MIPs can be created
within each MA.
6. Click Apply.

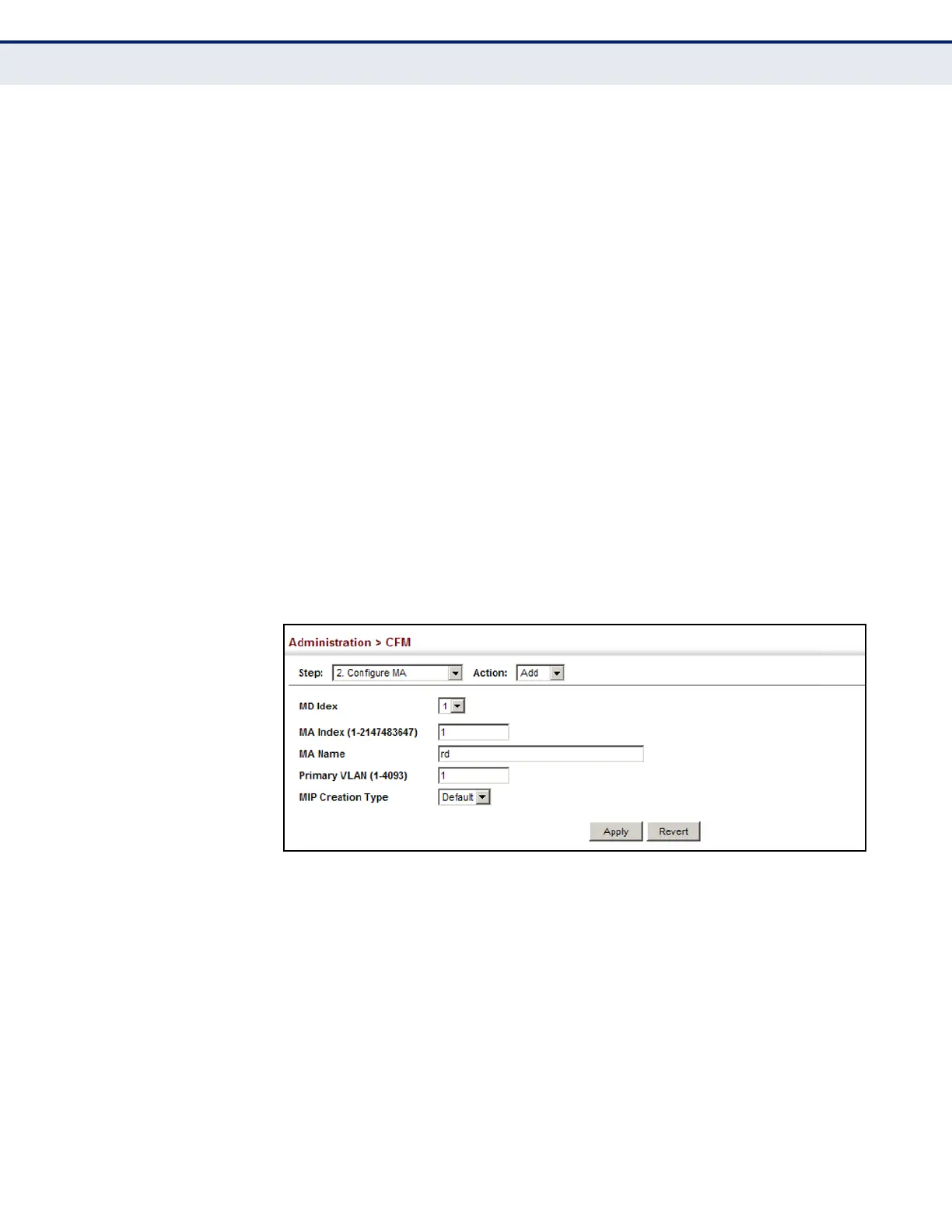

Figure 298: Creating Maintenance Associations
To show the configured maintenance associations:
1. Click Administration, CFM.
2. Select Configure MA from the Step list.
3. Select Show from the Action list.
4. Select an entry from the MD Index list.
